Toyota 16C310 — REAR BUMPER & BUMPER STAY
52161BPIECE, REAR BUMPER
52162DPIECE, REAR BUMPER
52162EPIECE, REAR BUMPER
52169CCOVER, REAR BUMPER, LOWER
52171CREINFORCEMENT, REAR BUMPER
52461FPAD, REAR BUMPER
52462BPAD, REAR BUMPER
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575CCLIP, REAR BUMPER SIDE RETAINER
52576RETAINER, REAR BUMPER SIDE, LH
52591CCLIP, REAR BUMPER SIDE SEAL
52592SEAL, REAR BUMPER SIDE, LH
52751MOULDING, REAR BUMPER
8115REFLEX REFLECTOR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
5218806040CUSHION, REAR BUMPER ARM, LH
9011908C64
90119C0146
9015950311
9015960621
90159C0022
9016750063
90167C0019

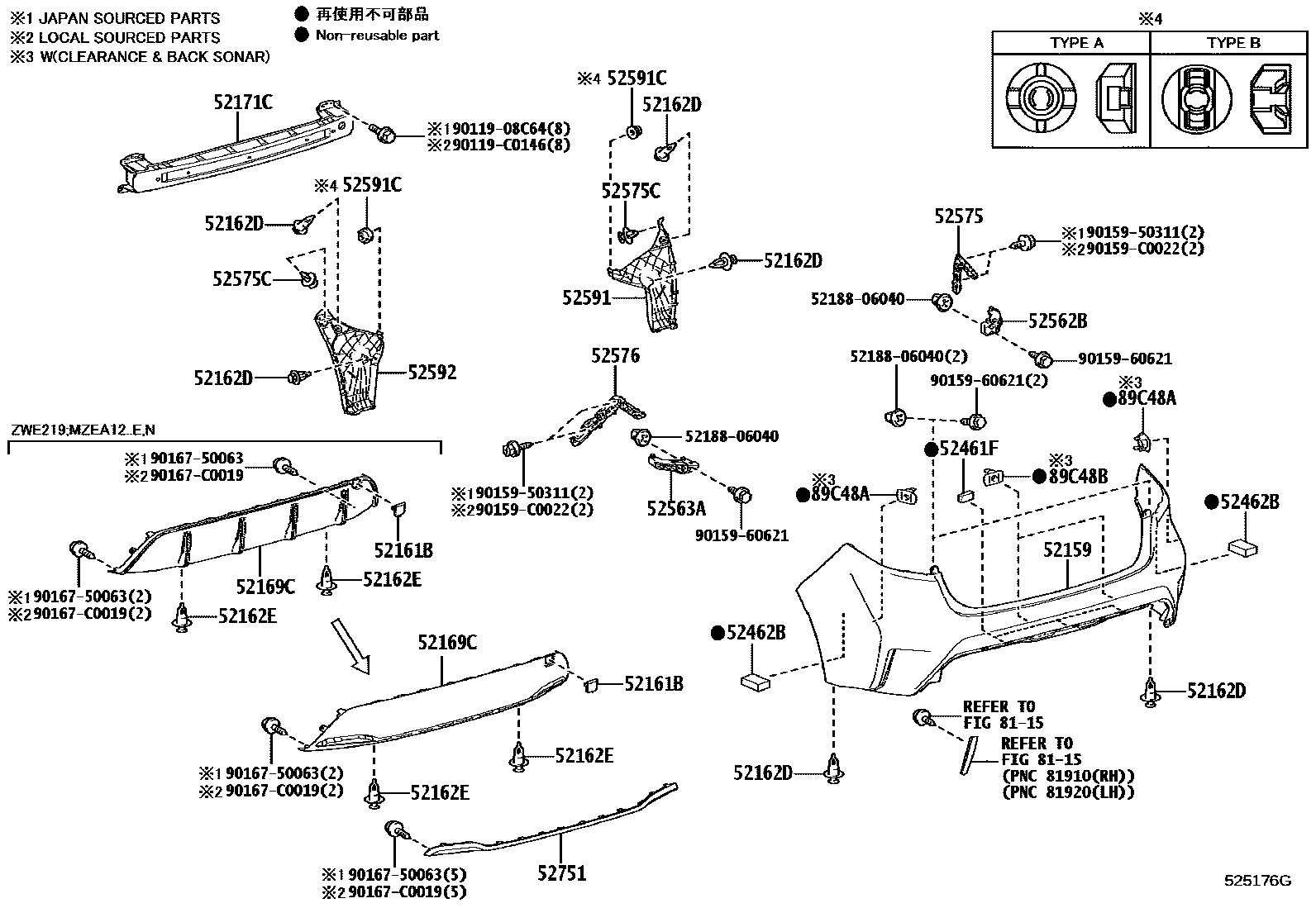

28 parts on this diagram · 1 diagram in section
REAR BUMPER & BUMPER STAY for Toyota 16C310
This section contains 28 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota 16C310. Key components include: COVER, REAR BUMPER, PIECE, REAR BUMPER, COVER, REAR BUMPER, LOWER.
