Toyota 86 264 — REAR MOULDING

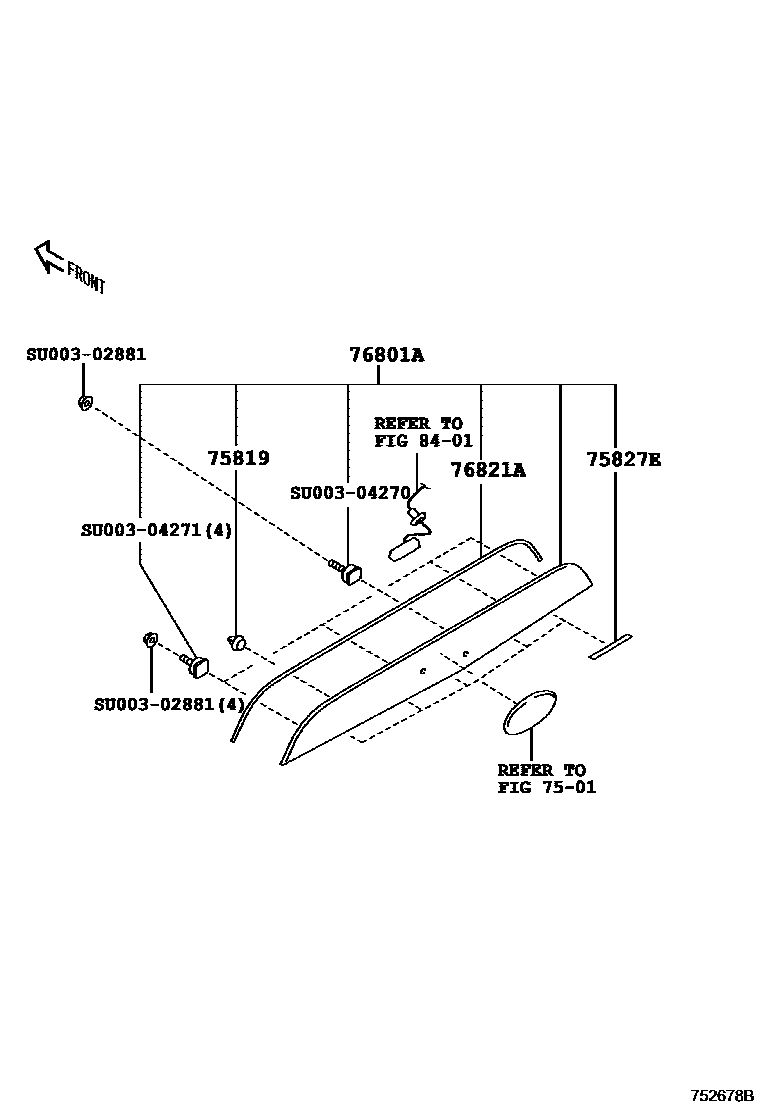

Parts diagram
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
→ Go to FIG 75-01
75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
SU003-04272
75827EPROTECTOR, LUGGAGE DOOR MOULDING
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
SU00302881
SU003-02881
SU00304270
SU003-04270
SU00304271
SU003-04271

9 parts on this diagram · 1 diagram in section

REAR MOULDING for Toyota 86 264

This section contains 9 genuine Toyota parts for the REAR MOULDING system of the Toyota 86 264. Key components include: EMBLEM & NAME PLATE (EXTERIOR & INTERIOR), CLIP, LUGGAGE COMPARTMENT DOOR MOULDING, PROTECTOR, LUGGAGE DOOR MOULDING, GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE, PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH.
