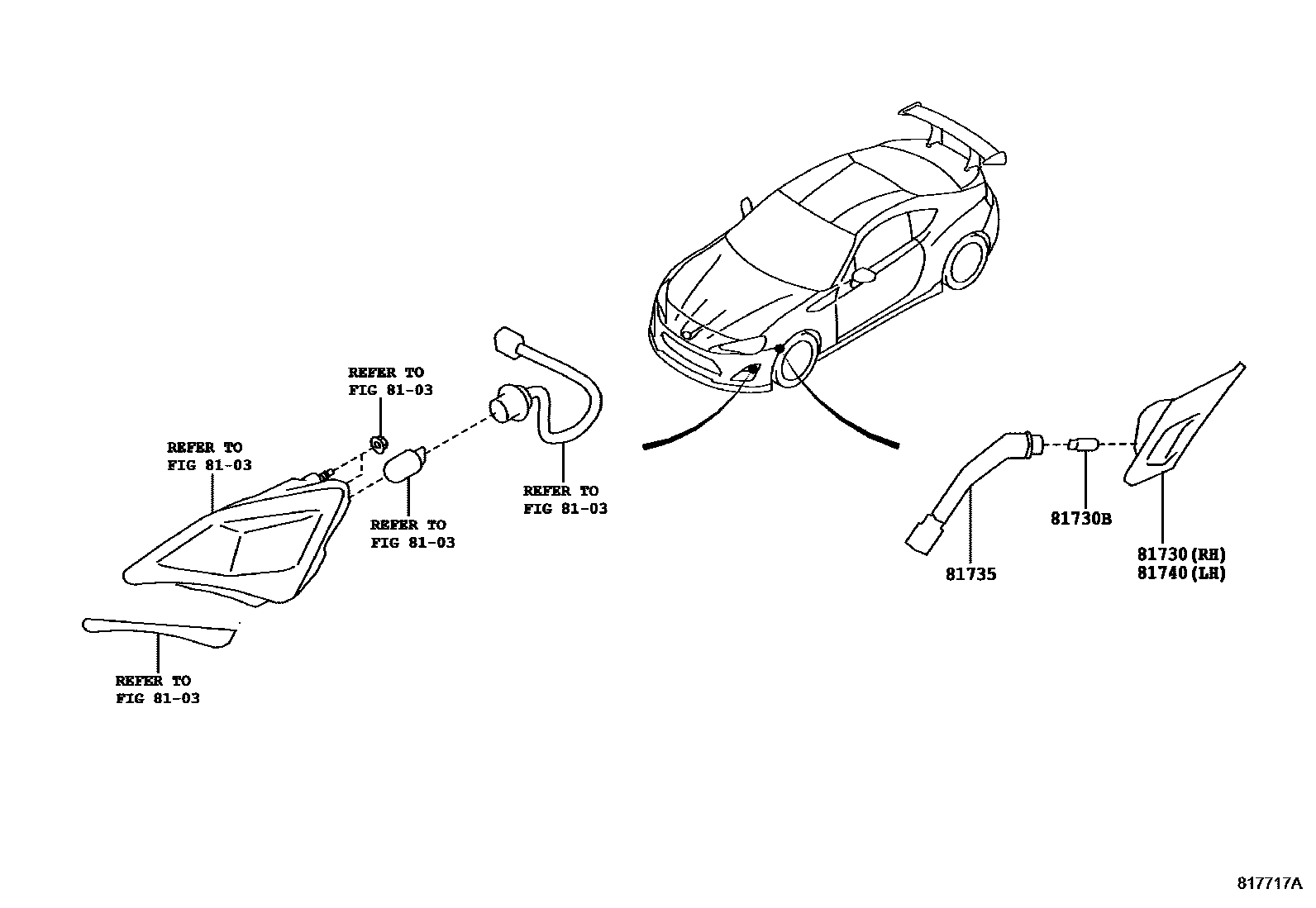

Toyota 265110 — SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

8103FRONT TURN SIGNAL LAMP

→ Go to FIG 81-03

81730LAMP ASSY, SIDE TURN SIGNAL, RH

SU003-02538

SU003-02562

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

SU003-02580

SU003-02581

81740LAMP ASSY, SIDE TURN SIGNAL, LH

SU003-02539

5 parts on this diagram · 1 diagram in section

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP for Toyota 265110

This section contains 5 genuine Toyota parts for the SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP system of the Toyota 265110. Key components include: FRONT TURN SIGNAL LAMP, LAMP ASSY, SIDE TURN SIGNAL, RH, BULB (FOR SIDE TURN SIGNAL LAMP), SOCKET AND WIRE, SIDE TURN SIGNAL LAMP, LAMP ASSY, SIDE TURN SIGNAL, LH.
