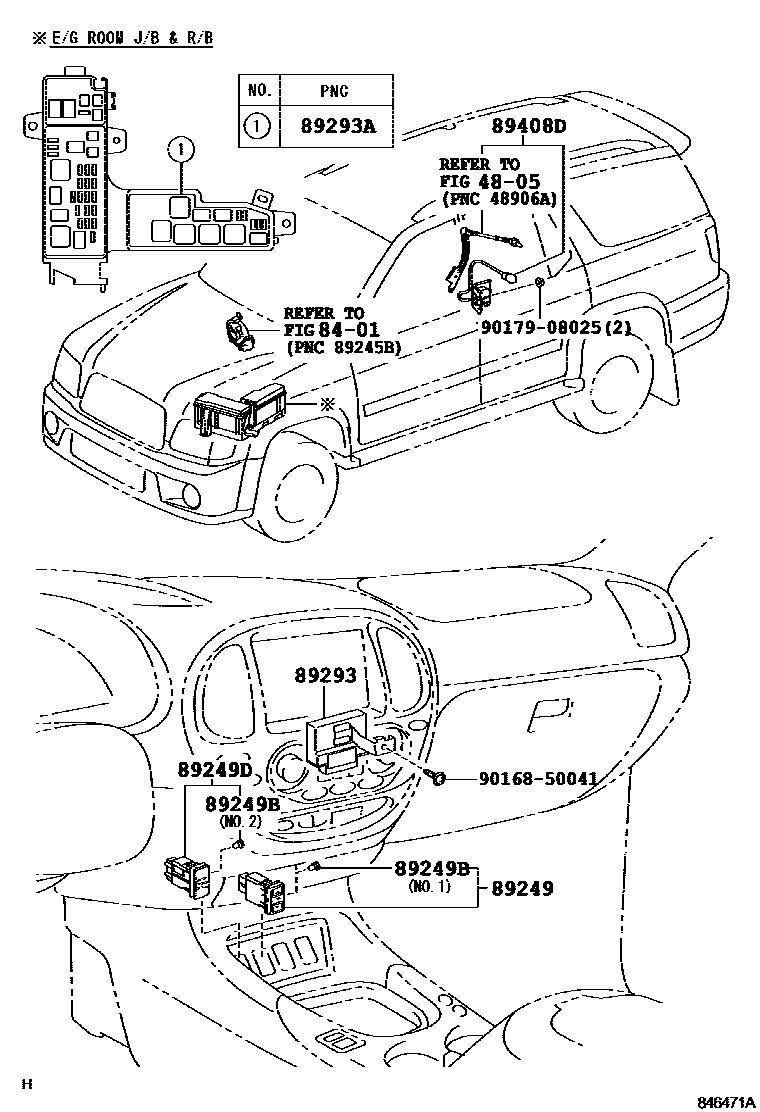

ELECTRONIC MODULATED SUSPENSION

4805HEIGHT CONTROL (AUTO-LEVELER)

→ Go to FIG 48-05

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89249SWITCH, ABSORBER CONTROL

main89249-0C010iUCK35,45200408

89249BBULB, ABSORBER CONTROL SWITCH

main90010-01039iUCK35,45200408

14V0.91W,W(GREEN CAP,NO.1

main90011-01060iUCK35,45200408

14V 0.84W,NO.2

89249DSWITCH, ABSORBER CONTROL NO.2

main89249-0C020iUCK35,45200408

89293COMPUTER, SUSPENSION CONTROL

main89293-34010iUCK35,45200408

89293ARELAY, SUSPENSION CONTROL

main90080-87024iUCK35,45200408

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-34010iUCK35,45200408

9016850041

main90168-50041

9017908025

main90179-08025

10 parts on this diagram · 1 diagram in section
