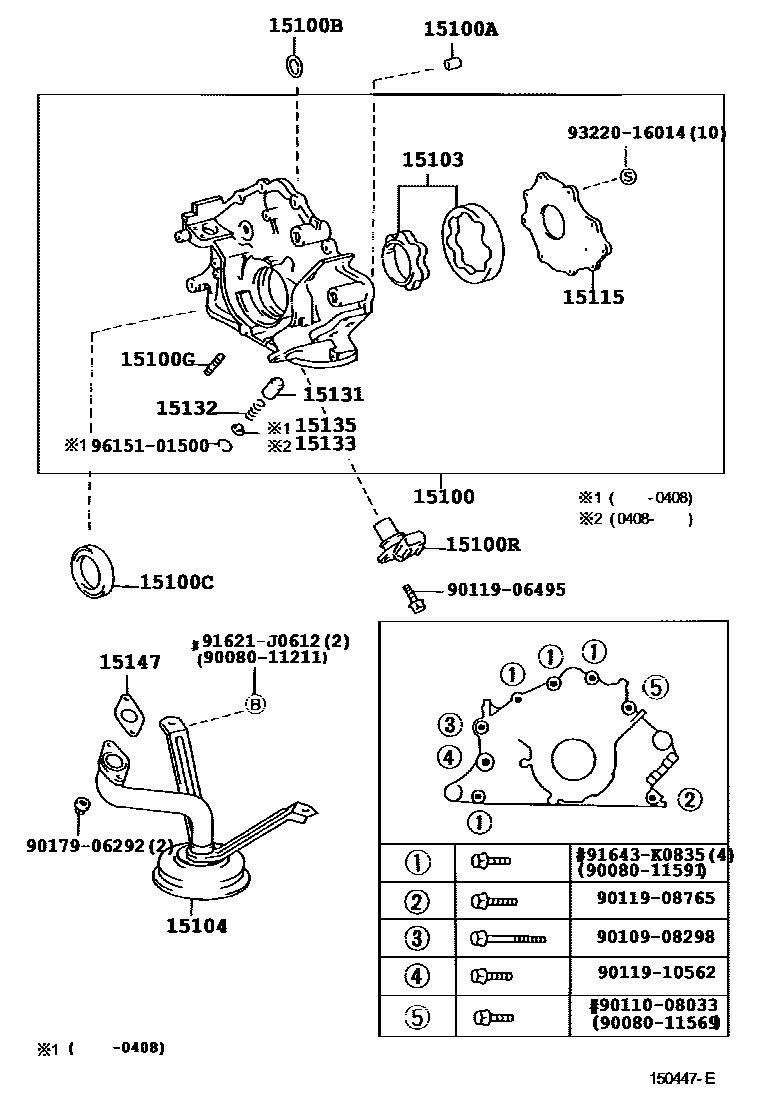

ENGINE OIL PUMP
15100PUMP ASSY, OIL
(L)
ENGINE NO.=5101001-8999999
ENGINE NO.=0002001-5099999 OR 9001001-9999999
(J)
15100APIN, RING(FOR OIL PUMP SET)
(L)
15100BRING, O(FOR OIL PUMP)
15100CSEAL(FOR OIL PUMP)
(J)
(L)
15100GBOLT,STUD(FOR OIL PUMP)
15100RSENSOR, CRANK POSITION
(J)
(L)
15103GEAR SET, OIL PUMP
15104STRAINER SUB-ASSY, OIL
15115COVER, OIL PUMP
15131VALVE, OIL PUMP RELIEF
(L)
(J)
15132SPRING, OIL PUMP RELIEF VALVE
(L)
(J)
(J)
15133PLUG, OIL PUMP RELIEF VALVE
15135RETAINER, OIL PUMP RELIEF VALVE
15147GASKET, OIL STRAINER
9008011211
main90080-11211
9008011569
main90080-11569
9008011591
main90080-11591
9010908298
main90109-08298
9011008033
main90110-08033
9011906495
main90119-06495
9011908765
main90119-08765
9011910562
main90119-10562
9017906292
main90179-06292
91621J0612
main91621-J0612
91643K0835
main91643-K0835
9322016014
main93220-16014
9615101500
main96151-01500
27 parts on this diagram · 1 diagram in section
