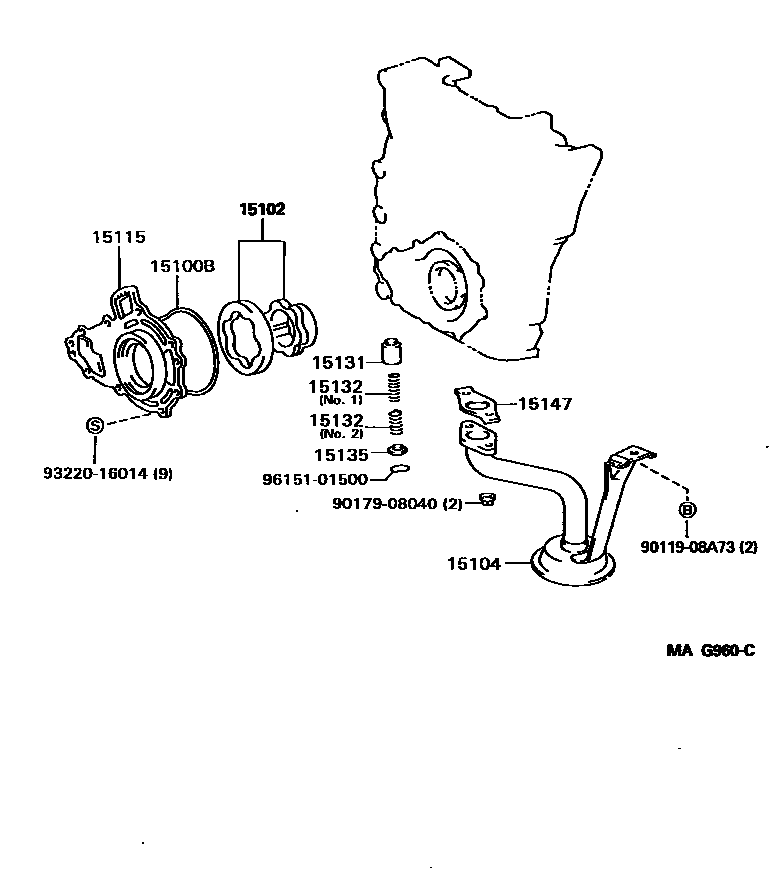

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15100PUMP ASSY, OIL

main15100-62040i5VZFE..VCK11,21199408

main15100-65020i3VZE..VCK10,20199208-199408

15100BRING, O(FOR OIL PUMP)

main15188-75020i3RZFE..RCK10199310

15102ROTOR SET, OIL PUMP

main15103-62030i5VZFE..VCK11,21199408

main15103-65020i3VZE..VCK10,20199208-199408

main15103-75020i3RZFE..RCK10199310

15104STRAINER SUB-ASSY, OIL

main15104-62060i5VZFE..VCK11199408

main15104-62070i5VZFE..VCK21199408

main15104-65010i3VZE..VCK20199208-199408

main15104-65030i3VZE..VCK10199208-199408

main15104-75020i3RZFE..RCK10199310

15115COVER, OIL PUMP

main15115-62040i5VZFE..VCK11,21199408

main15115-65020i3VZE..VCK10,20199208-199408

main15115-75020i3RZFE..RCK10199310

15131VALVE, OIL PUMP RELIEF

main15131-24010i3RZFE..RCK10199310

15132SPRING, OIL PUMP RELIEF VALVE

main15132-20020i5VZFE..VCK11,21199408

main15132-65020i3VZE..VCK10,20199208-199408

main15132-75020i3RZFE..RCK10199310

NO.1

main15132-75021i3RZFE..RCK10199310

NO.2

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-75020i3RZFE..RCK10199310-199501

main15135-75040i3RZFE..RCK10199501

15147GASKET, OIL STRAINER

main15147-75020i3RZFE..RCK10199310

9011908A73

main90119-08A73

9017908040

main90179-08040

9322016014

main93220-16014

9615101500

main96151-01500

13 parts on this diagram · 3 diagrams in section
