INVERTER COOLING

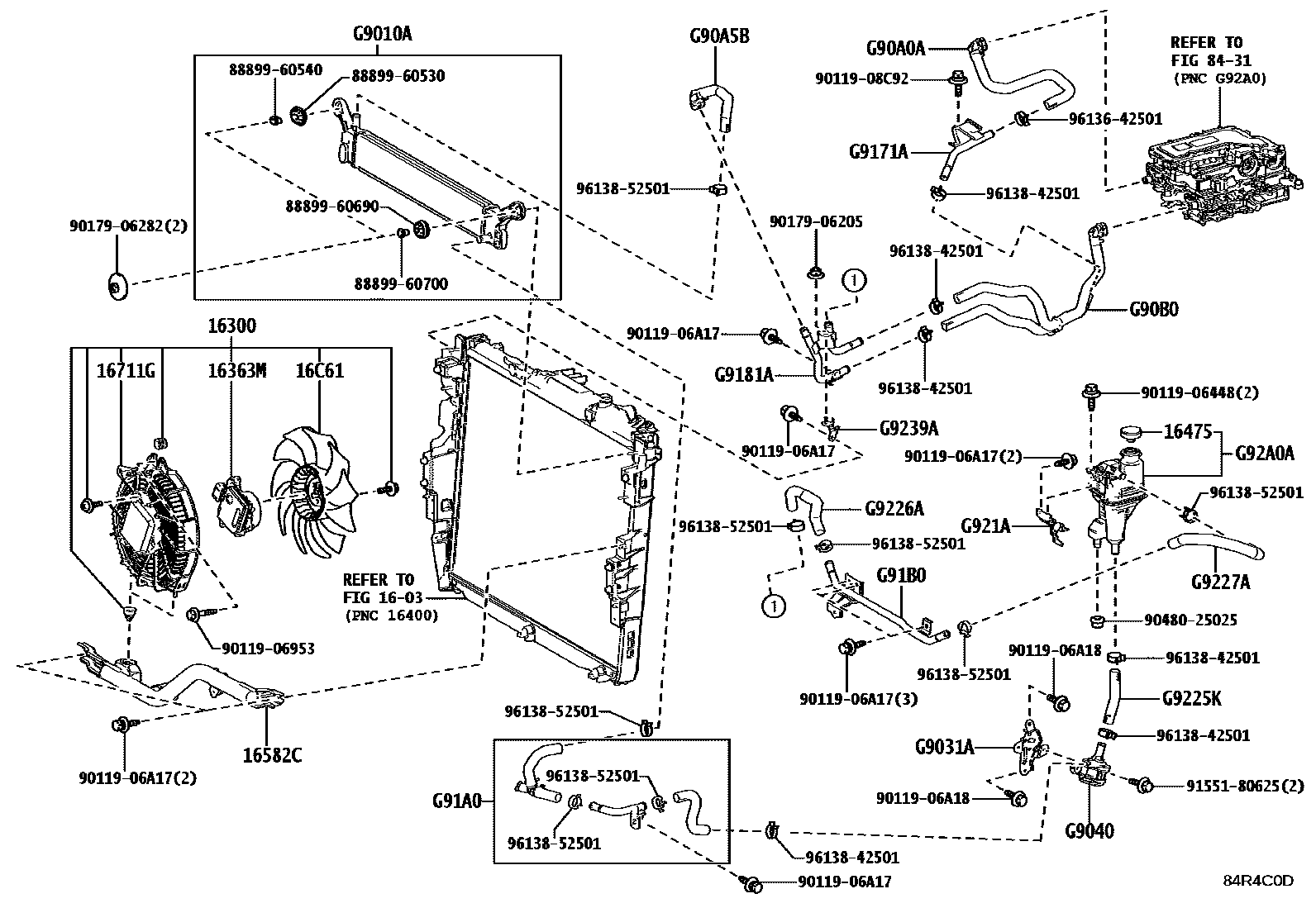

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16300FAN ASSY, W/BRACKET

main16300-70020i202411

16363MMOTOR, COOLING FAN W/CONTROLLER

main16363-62010i202411

16475CAP, RESERVE TANK

main16475-28140i202411

16582CBRACKET, RADIATOR, NO.1

main16582-62010i202411

16711GSHROUD, FAN

main16711-70320i202411

16C61FAN

main16361-70100i202411

8431HEV INVERTER

→ Go to FIG 84-31

G9010ARADIATOR ASSY

mainG901060040i202411

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG903160010i202411

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904048060i202411

G90A0AHOSE ASSY, INVERTER COOLING, NO.1

mainG90A060030i202411

G90A5BHOSE SUB-ASSY, INVERTER COOLING, NO.5

mainG90A060050i202411

G90B0HOSE ASSY, INVERTER COOLING, NO.2

mainG90B060030i202411

G9171APIPE, INVERTER COOLING, NO.1

mainG91A160030i202411

G9181APIPE, INVERTER COOLING, NO.2

mainG91B160040i202411

G91A0PIPE ASSY, INVERTER COOLING, INLET

mainG91A060040i202411

G91B0PIPE ASSY, INVERTER COOLING, OUTLET

mainG91B160030i202411

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H260010i202411

G9225KHOSE, INVERTER COOLING, NO.1

mainG922760040i202411

G9226AHOSE, INVERTER COOLING, NO.2

mainG922660040i202411

G9227AHOSE, INVERTER COOLING, NO.3

mainG922760030i202411

G9239ABRACKET, INVERTER COOLING PIPE

mainG923960010i202411

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H060020i202411

8889960530COVER, EVAPORATOR

main88899-60530

8889960540COVER, EVAPORATOR

main88899-60540

8889960690COVER, EVAPORATOR

main88899-60690

8889960700COVER, EVAPORATOR

main88899-60700

9011906448

main90119-06448

9011906953

main90119-06953

9011906A17

main90119-06A17

9011906A18

main90119-06A18

9011908C92

main90119-08C92

9017906205

main90179-06205

9017906282

main90179-06282

9048025025

main90480-25025

9155180625

main91551-80625

9613642501

main96136-42501

9613842501

main96138-42501

9613852501

main96138-52501

40 parts on this diagram · 1 diagram in section
