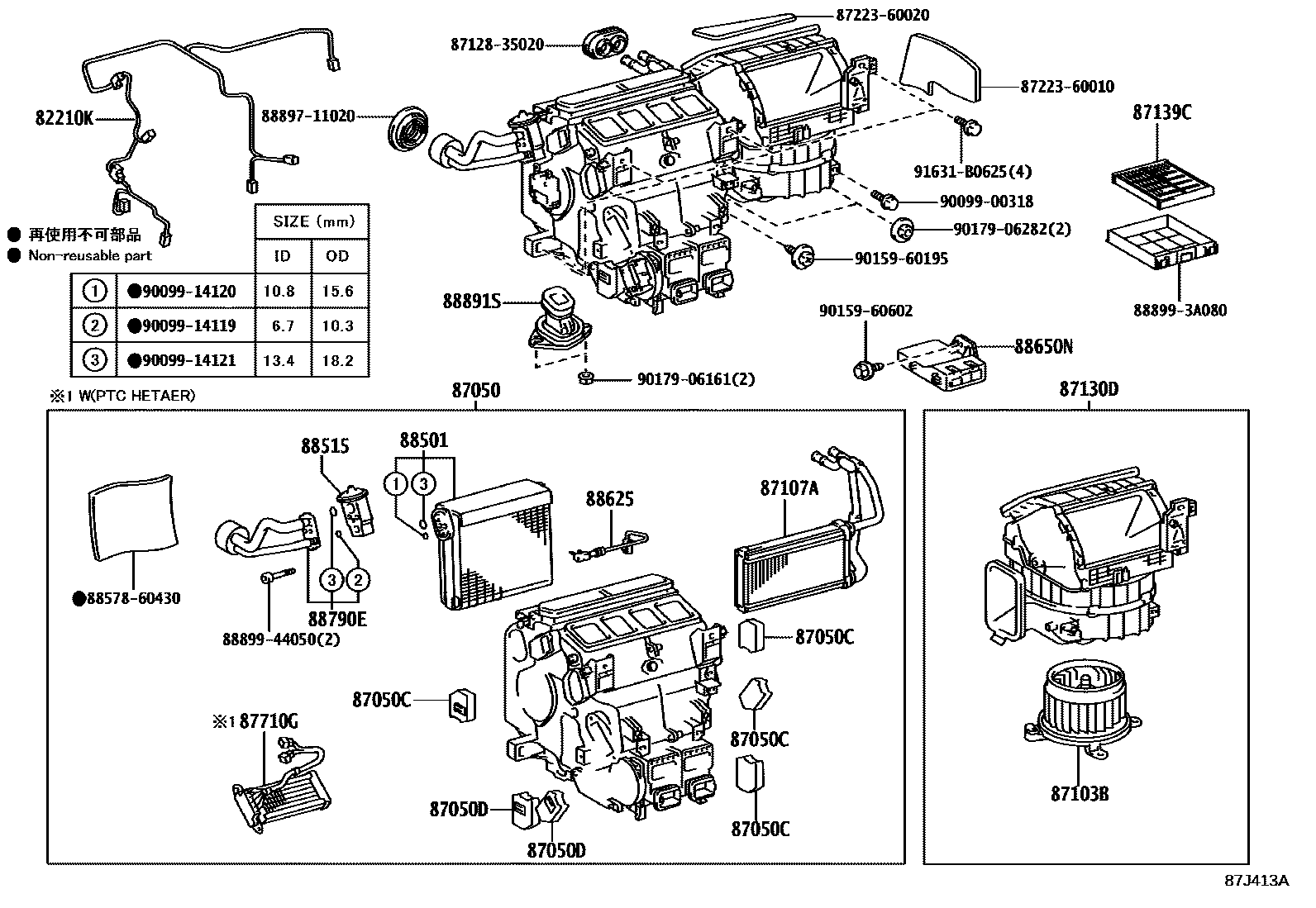

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT,W/O(COOL BOX) 0002 1FRONT,W(COOL BOX) 0003 1FRONT,W/O(COOL BOX) 0004 1FRONT,W(COOL BOX) 0005 1FRONT,W/O(COOL BOX) 0006 1FRONT,W(COOL BOX) 0007 1REAR 0008 1COOL BOX 0009 1COOL BOX

82210KHARNESS ASSY, AIR CONDITIONER

main82212-60100iURJ201200711-201201

main82212-60101iURJ201201301-201509

main82212-60200iURJ201201509-202006

87050RADIATOR ASSY, AIR CONDITIONER

main87050-60470iURJ201201008-201201

HEATER-4SEAT INDEPENDENT CONTROL&WITH(COOL BOX)

main87050-60471supersedes 87050-60501iURJ201201301-201312

HEATER-4SEAT INDEPENDENT CONTROL&WITH(COOL BOX)

main87050-60480iURJ201200711-201008

WITHOUT(COLD AREA SPEC)

main87050-60481supersedes 87050-60501iURJ201201301-201312

HEATER-4SEAT INDEPENDENT CONTROL

main87050-60490supersedes 87050-60500iURJ201200711-201201

WITH(COOL BOX)

main87050-60491supersedes 87050-60501iURJ201201301-201312

WITH(COOL BOX)

main87050-60860supersedes 87050-60870iURJ201201312-201509

HEATER-4SEAT INDEPENDENT CONTROL&WITH(COOL BOX); WITH(COOL BOX)

main87050-60A80supersedes 87050-60A90iURJ201201509-202006

HEATER-4SEAT INDEPENDENT CONTROL&WITH(COOL BOX); WITH(COOL BOX)

main87050-60M10supersedes 87050-60M20iURJ201202008

WITH(COOL BOX)

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-50390×6iURJ201201201-201301

main87106-50550×6iURJ201202008

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-60260×2iURJ201200711-201201

main87106-60270×2iURJ201201301-201509

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-60390iURJ201200711-201007

main87103-60480iURJ201201201-201411

main87103-60481iURJ201201412-201509

main87103-60560iURJ201201509-202006

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-60410iURJ201200711-201201

main87107-60411iURJ201201301-201509

87130DBLOWER ASSY

main87130-60532iURJ201201201-201301

main87130-60533iURJ201201301-201411

main87130-60670iURJ201201509-202006

main87130-60530supersedes 87130-60534iURJ201200808-200809

WITH(COOL BOX)

87139CFILTER, CLEAN AIR

main87139-30040iURJ201200711-201201

MICRO DUST FILTER

main87139-50060iURJ201201201-201204

DEODORANT FILTER

main87139-50100iURJ201201205-201509

*DPF

main87139-52040iURJ201201509

POLLEN FILTER,OE PART

main87139-76010iURJ201201310-201509

MICRO DUST FILTER

87710GQUICK HEATER ASSY

main87710-50020iURJ201200711-201201

main87710-60060iURJ201201501-201509

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-60361iURJ201200711-201102

main88501-60362iURJ201201103-201201

main88501-60560iURJ201202008

88515VALVE, COOLER EXPANSION

main88515-50190iURJ201200711-201201

main88515-60270iURJ201202008

88625THERMISTOR, COOLER, NO.1

main88620-60020iURJ201202008

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-60Q20iURJ201201509-201608

main88650-60Q21iURJ201201608-201612

main88650-60Q22iURJ201201701-201707

main88650-60Q23iURJ201201708-201908

main88650-60Q24iURJ201201908-202008

main88650-60Z70iURJ201202008

main88650-60E40supersedes 88650-60E50iURJ201200711-200907

WITHOUT(COLD AREA SPEC)

main88650-60E42supersedes 88650-60E52iURJ201200907-201008

WITHOUT(COLD AREA SPEC)

main88650-60J30supersedes 88650-60J40iURJ201201201-201301

HEATER-4SEAT INDEPENDENT CONTROL,P/N LABEL=8865060J30

main88650-60J31supersedes 88650-60J41iURJ201201301-201307

HEATER-4SEAT INDEPENDENT CONTROL,P/N LABEL=8865060J31

main88650-60J32supersedes 88650-60J42iURJ201201308-201509

HEATER-4SEAT INDEPENDENT CONTROL

88790ETUBE & ACCESSORY ASSY, AIRCONDITIONER

main88710-60A10supersedes 88710-60A00iURJ201201201-201509

HEATER-4SEAT INDEPENDENT CONTROL&WITH(COOL BOX); WITH(COOL BOX)

main88710-60A11supersedes 88710-60A00iURJ201201509-202006

HEATER-4SEAT INDEPENDENT CONTROL&WITH(COOL BOX); WITH(COOL BOX)

main88710-60M80supersedes 88710-60A00iURJ201202008

WITH(COOL BOX)

88891SCOVER, COOLER, NO.1

main88891-60090iURJ201200711-201201

8712835020GROMMET, HEATER

main87128-35020

8722360010PAD, AIR DUCT

main87223-60010

8722360020PAD, AIR DUCT

main87223-60020

8857860430PAKING, COOLER AIR DUCT

main88578-60430

8889711020VALVE, COOLER MAGNET

main88897-11020

888993A080COVER, EVAPORATOR

main88899-3A080

8889944050COVER, EVAPORATOR

main88899-44050

9009900318

main90099-00318

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9015960195

main90159-60195

9015960602

main90159-60602

9017906161

main90179-06161

9017906282

main90179-06282

91631B0625

main91631-B0625

31 parts on this diagram · 9 diagrams in section
