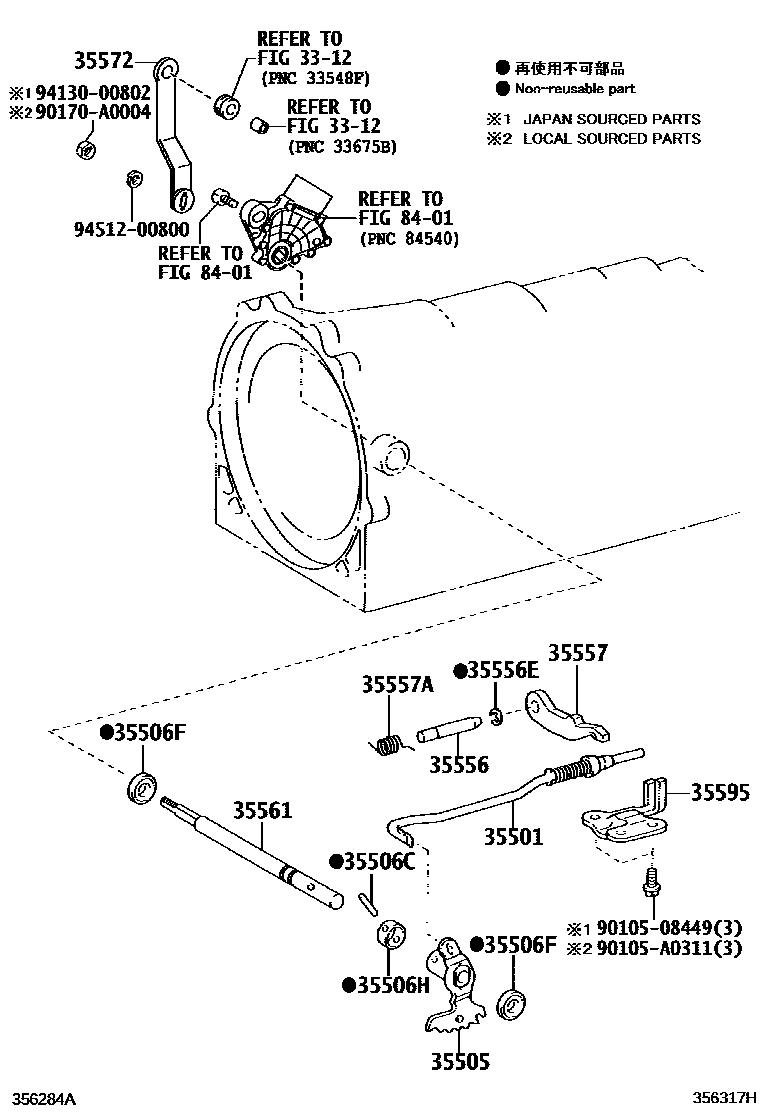

THROTTLE LINK & VALVE LEVER (ATM)

0001 1AB60F 0002 1AE80F

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

35501ROD SUB-ASSY, PARKING LOCK

main35501-34020iURJ201201201-201509

main35501-60040iURJ201201509

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-60060iURJ201200711-201201

main35505-60080iURJ201201509-201807

main35505-60100iURJ201201808

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iURJ201201509

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iURJ201200711-201201

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iURJ201200711-201201

35556SHAFT, PARKING LOCK PAWL

main35556-60020iURJ201200711-201201

main35556-60030iURJ201201509

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iURJ201201201-201509

35557PAWL, PARKING LOCK

main35557-34010iURJ201201201-201509

main35557-60050iURJ201201509

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-24007iURJ201201509

main90949-03123supersedes 90949-A3001iURJ201200711-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)

35561SHAFT, MANUAL VALVE LEVER

main35561-34010iURJ201201201-201509

main35561-60040iURJ201201509

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-60100iURJ201200711-201201

main35572-60130iURJ201201509-201803

main35572-60150iURJ201201804

35595BRACKET, PARKING LOCK PAWL

main35595-34010iURJ201200711-201201

main35595-60040iURJ201201509

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508449

main90105-08449

90105A0311

main90105-A0311

90170A0004

main90170-A0004

9413000802

main94130-00802

9451200800

main94512-00800

19 parts on this diagram · 2 diagrams in section
