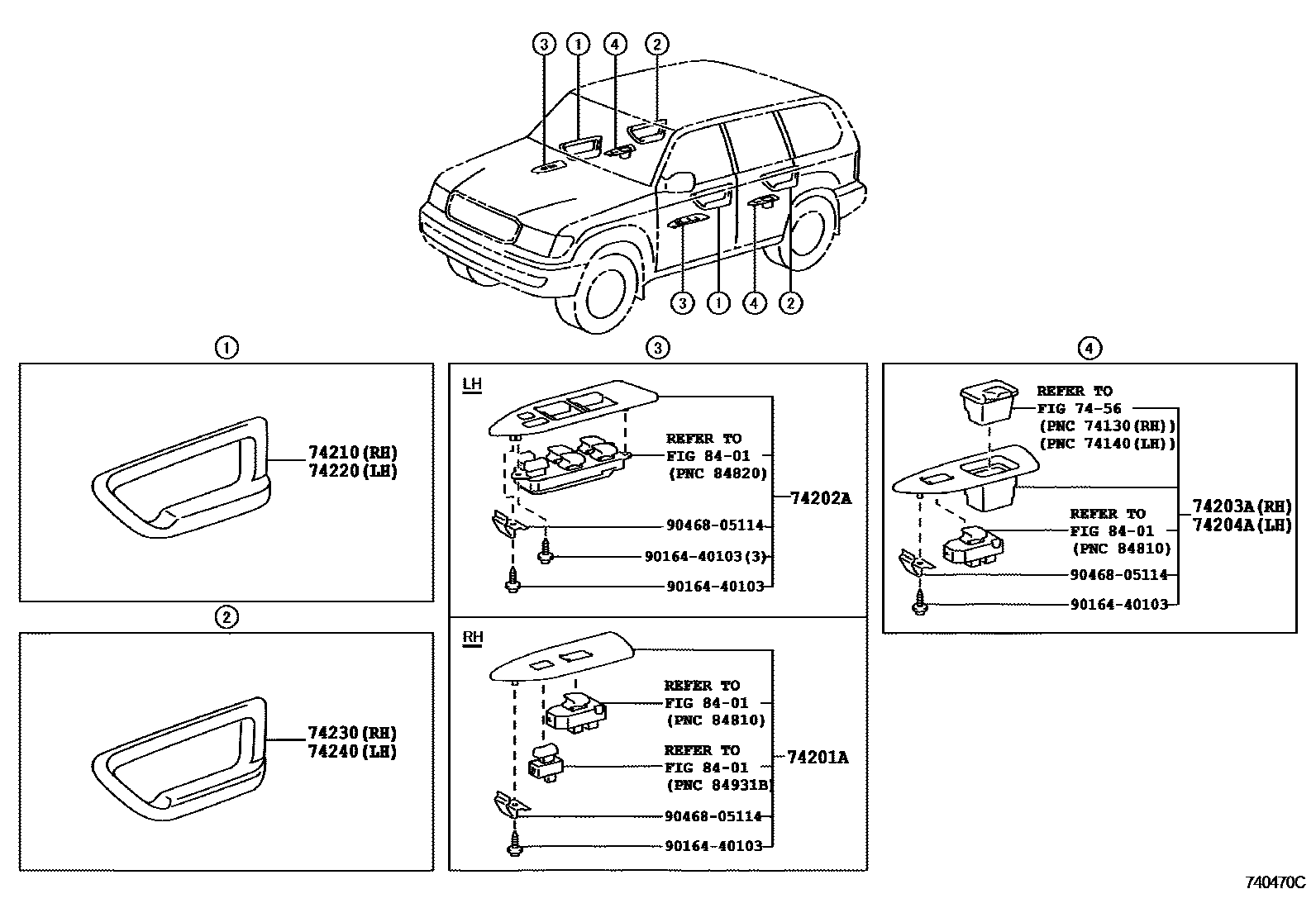

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74201APANEL SUB-ASSY, FRONT ARMREST BASE, UPPER RH

main74201-60310iUZJ100199801-200208

main74231-60261iUZJ100200208-200505

main74231-60520-C0iUZJ100200610

SPECIAL EDITION(USA),BLACK,TRIM1#

74202APANEL SUB-ASSY, FRONT ARMREST BASE, UPPER LH

main74202-60210iUZJ100199801-200208

main74232-60231iUZJ100200208-200505

main74232-60500-C0iUZJ100200610

SPECIAL EDITION(USA),BLACK,TRIM1#

74203APANEL SUB-ASSY, REAR ARMREST BASE, UPPER RH

main74203-60100iUZJ100199801-200208

main74271-60081iUZJ100200505-200708

main74271-60170-C0iUZJ100200610

SPECIAL EDITION(USA),BLACK,TRIM1#

74204APANEL SUB-ASSY, REAR ARMREST BASE, UPPER LH

main74204-60100iUZJ100199801-200208

main74272-60081iUZJ100200208-200505

main74272-60170-C0iUZJ100200610

SPECIAL EDITION(USA),BLACK,TRIM1#

74210ARMREST ASSY, FRONT, RH

main74210-60100-B0iUZJ100199801-200208

SHADOW GRAY,TRIM1#

main74210-60100-B1iUZJ100200208-200308

DARK GRAY,TRIM1#

main74210-60100-E0iUZJ100199801-200208

OAK,TRIM4#

main74210-60100-E1iUZJ100200208-200308

SANDALWOOD,TRIM0#

main74210-60102-B2iUZJ100200505-200708

DARK GRAY,TRIM1#

main74210-60102-E2iUZJ100200308-200505

SANDALWOOD,TRIM0#

74220ARMREST ASSY, FRONT, LH

main74220-60100-B0iUZJ100199801-200208

SHADOW GRAY,TRIM1#

main74220-60100-B1iUZJ100200208-200308

DARK GRAY,TRIM1#

main74220-60100-E0iUZJ100199801-200208

OAK,TRIM4#

main74220-60100-E1iUZJ100200208-200308

SANDALWOOD,TRIM0#

main74220-60102-B2iUZJ100200308-200505

DARK GRAY,TRIM1#

main74220-60102-E2iUZJ100200505-200708

SANDAL WOOD,TRIM0#

74230ARMREST ASSY, REAR, RH

main74250-60020-B0iUZJ100199801-200208

SHADOW GRAY,TRIM1#

main74250-60020-B1iUZJ100200208-200308

DARK GRAY,TRIM1#

main74250-60020-E0iUZJ100199801-200208

OAK,TRIM4#

main74250-60020-E1iUZJ100200208-200308

SANDALWOOD,TRIM0#

main74250-60022-B2iUZJ100200505-200708

DARK GRAY,TRIM1#

main74250-60022-E2iUZJ100200505-200708

SANDAL WOOD,TRIM0#

74240ARMREST ASSY, REAR, LH

main74260-60020-B0iUZJ100199801-200208

SHADOW GRAY,TRIM1#

main74260-60020-B1iUZJ100200208-200308

DARK GRAY,TRIM1#

main74260-60020-E0iUZJ100199801-200208

OAK,TRIM4#

main74260-60020-E1iUZJ100200208-200308

SANDALWOOD,TRIM0#

main74260-60022-B2iUZJ100200505-200708

DARK GRAY,TRIM1#

main74260-60022-E2iUZJ100200308-200505

SANDALWOOD,TRIM0#

7456ASH RECEPTACLE

→ Go to FIG 74-56

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9016440103

main90164-40103

9046805114

main90468-05114

12 parts on this diagram · 3 diagrams in section
