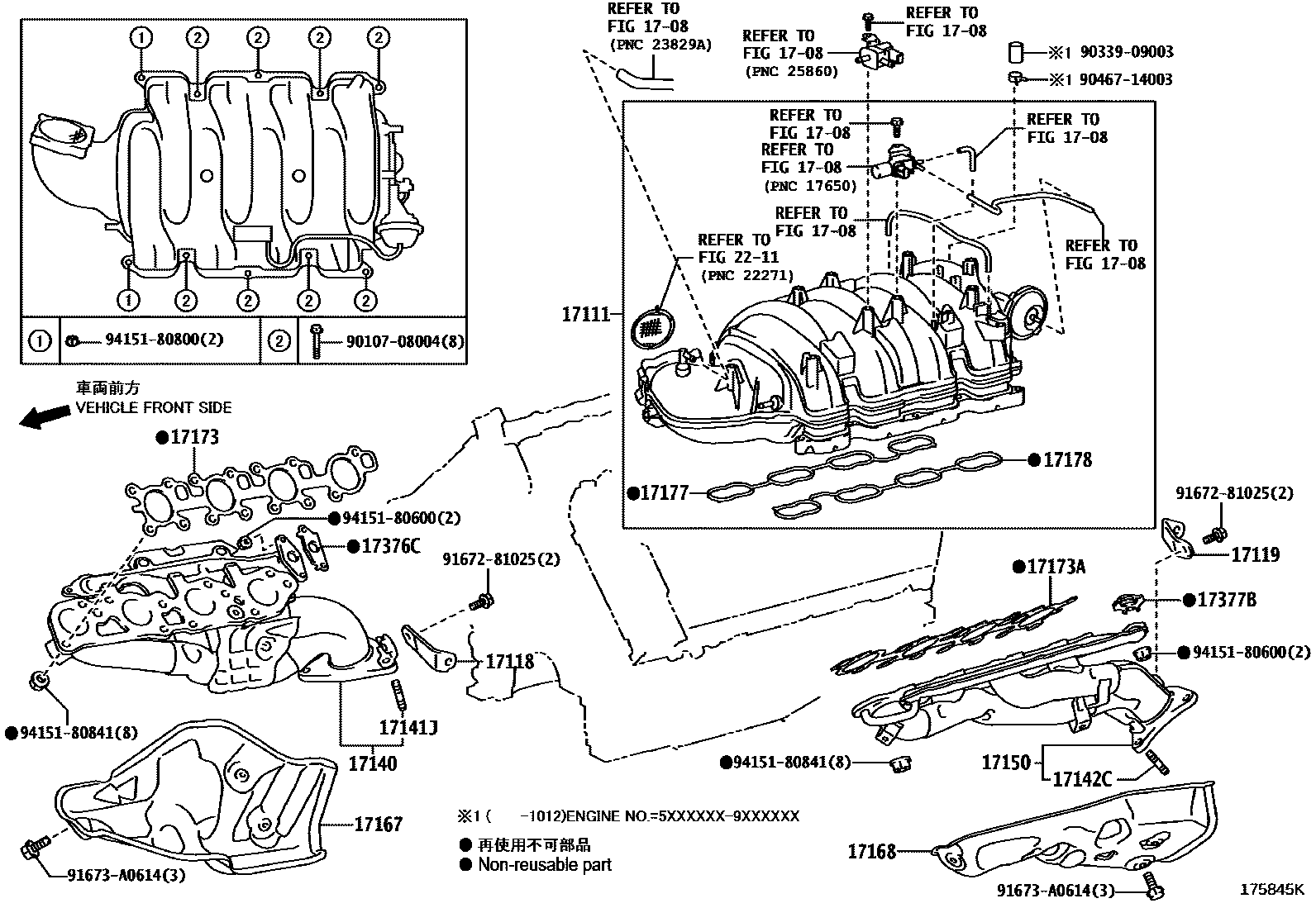

MANIFOLD
1708VACUUM PIPING
17111MANIFOLD, INTAKE
*145
*119
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17140MANIFOLD ASSY, EXHAUST, RH
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17142CBOLT, STUD(FOR EXHAUST MANIFOLD, LH)
17150MANIFOLD ASSY, EXHAUST, LH
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
*145
*119
*119
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
*145
*119
*119
17376CGASKET, AIR TUBE
17377BGASKET, AIR TUBE, NO.2
2211FUEL INJECTION SYSTEM
9010708004
main90107-08004
9033909003
main90339-09003
9046714003
main90467-14003
9167281025
main91672-81025
91673A0614
main91673-A0614
9415180600
main94151-80600
9415180800
main94151-80800
9415180841
main94151-80841
25 parts on this diagram · 1 diagram in section
