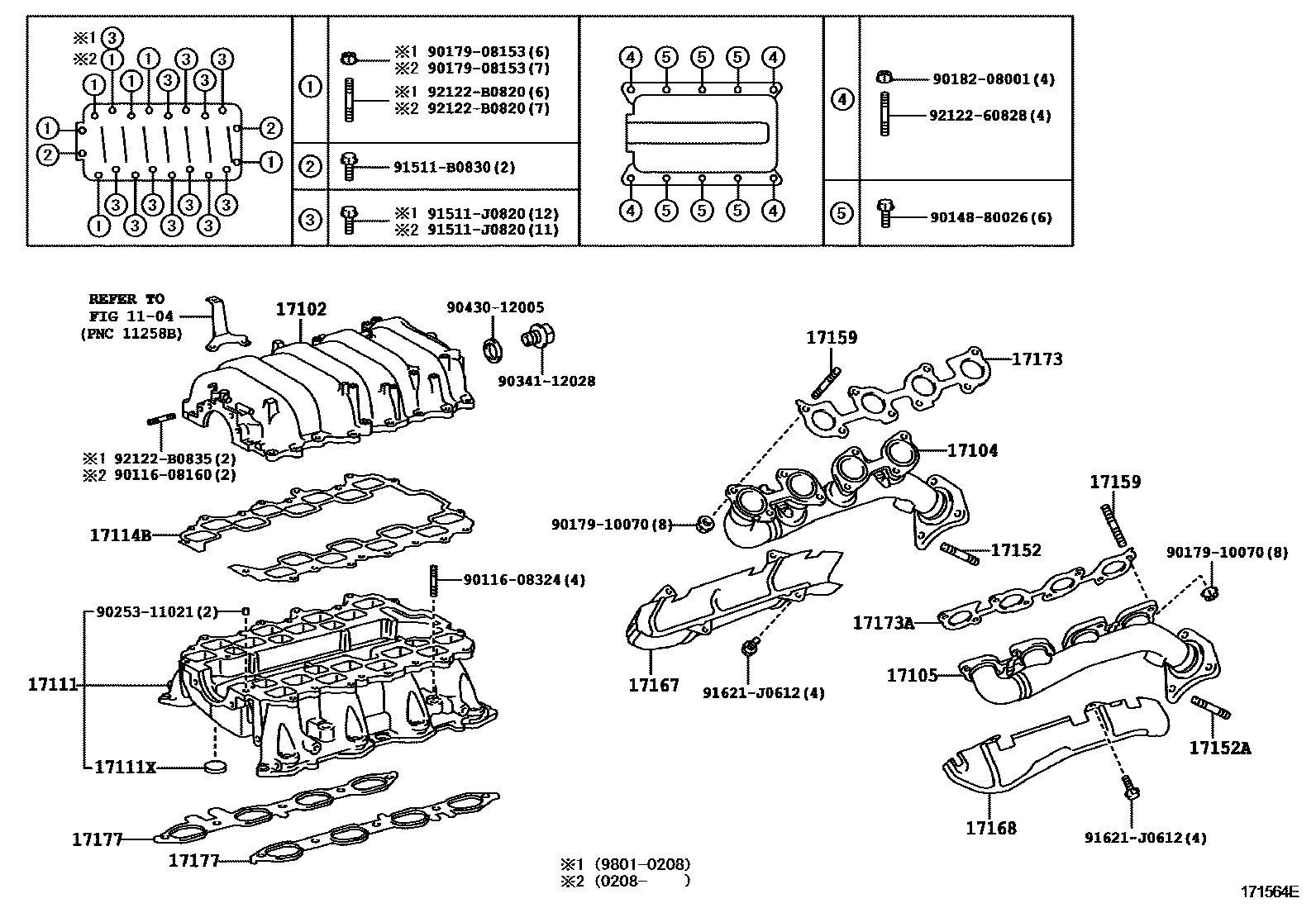

MANIFOLD
1104CYLINDER HEAD
17102MANIFOLD SUB-ASSY, INTAKE, UPPER
17104MANIFOLD SUB-ASSY, EXHAUST, RH
17105MANIFOLD SUB-ASSY, EXHAUST, LH
17111MANIFOLD, INTAKE
17111XPLUG, TIGHT NO.1(FOR INTAKE MANIFOLD)
17114BGASKET, INTAKE FLANGE
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17152ABOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9011608160
main90116-08160
9011608324
main90116-08324
9014880026
main90148-80026
9017908153
main90179-08153
9017910070
main90179-10070
9018208001
main90182-08001
9025311021
main90253-11021
9034112028
main90341-12028
9043012005
main90430-12005
91511B0830
main91511-B0830
91511J0820
main91511-J0820
91621J0612
main91621-J0612
9212260828
main92122-60828
92122B0820
main92122-B0820
92122B0835
main92122-B0835
30 parts on this diagram · 2 diagrams in section
