FUEL FEED PUMP

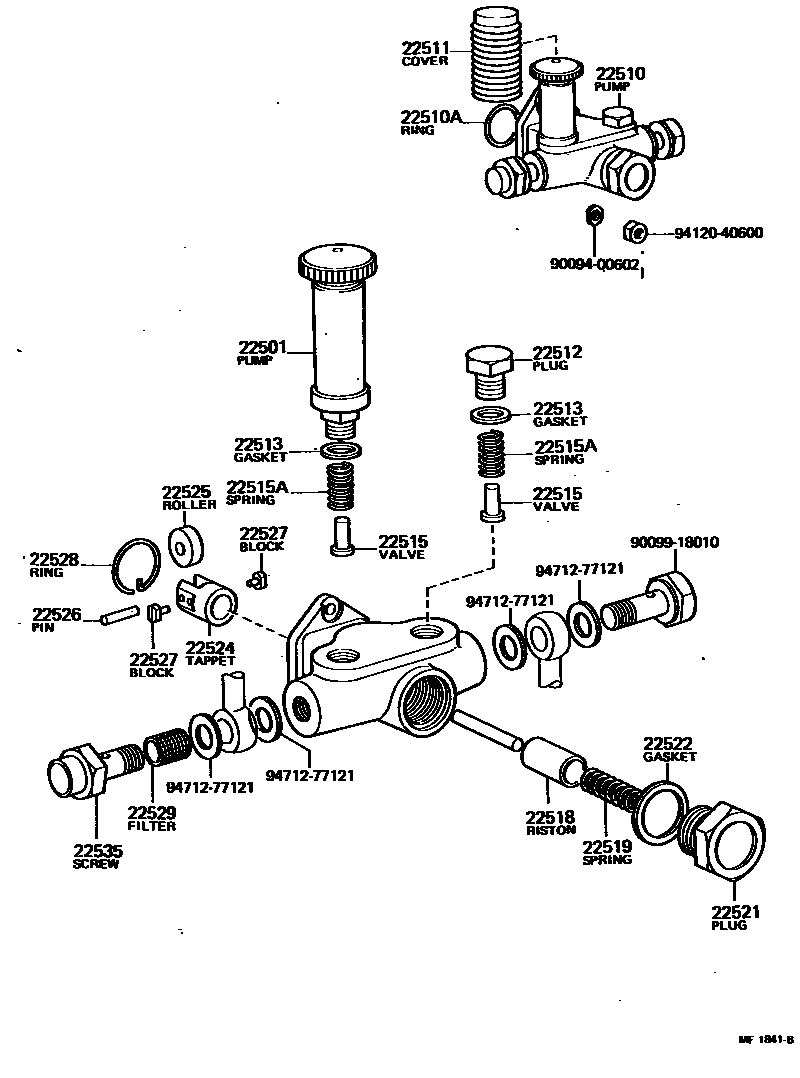

Parts diagram

22501PUMP SUB-ASSY, PRIMING

main22501-77020i197803-198007

22510PUMP ASSY, FUEL FEED

main22510-56040i197803-198007

22510ARING, O(FOR FUEL FEED PUMP)

main90099-14015i197803-198007

22511COVER, PRIMING PUMP

main22511-77020i197803-198007

22512PLUG, FEED PUMP CHECK VALVE CHAMBER

main22512-77020i197803-198007

22513GASKET, CHECK VALVE CHAMBER PLUG

main22513-77020×2i197803-198007

22515VALVE, FEED PUMP CHECK

main22515-77021×2i197803-198007

22515ASPRING, FEED PUMP CHECK VALVE

main22514-77020×2i197803-198007

22518PISTON, FEED PUMP

main22518-56010i197803-198007

RED,RED

main22518-56011i197803-198007

YELLOW,YELLOW

main22518-56012i197803-198007

GREEN,GREEN

main22518-56013i197803-198007

WHITE,WHITE

main22518-77020i197803-198007

BLUE,BLUE

22519SPRING, FEED PUMP PISTON

main22519-48010i197803-198007

22521PLUG, FEED PUMP PISTON CHAMBER

main22521-77021i197803-198007

22522GASKET, FEED PUMP PISTON PLUG

main22522-77020i197803-198007

22524TAPPET, FEED PUMP

main22524-77021i197803-198007

22525ROLLER, FEED PUMP TAPPET

main22525-77020i197803-198007

22526PIN, FEED PUMP TAPPET ROLLER

main22526-77020i197803-198007

22527BLOCK, FEED PUMP TAPPET SLIDING

main22527-56010×2i197803-198007

22528RING, FEED PUMP TAPPET SNAP

main22528-77020i197803-198007

22529FILTER, FUEL PUMP

main22529-67010i197803-198007

22535SCREW, FUEL PIPE FOLLOW

main22535-46010i197803-198007

9009400602

main90094-00602

9009918010

main90099-18010

9412040600

main94120-40600

9471277121

main94712-77121

23 parts on this diagram · 1 diagram in section
