SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-33200-C0iVJA252202402

BLACK,TRIM1#,2#,4#

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-60230iVJA252202402

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-60250iVJA252202402

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-60290iVJA252202402

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-60040iVJA252202402

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079×2iVJA252202402

33825INSULATOR, TRANSMISSION CONTROL CABLE

main33825-60020iVJA252202402

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35974HOUSING, POSITION INDICATOR, LOWER

main35974-60250iVJA252202402

35978INDICATOR, SHIFT POSITION

main35978-60230iVJA252202402

5855CONSOLE BOX & BRACKET

→ Go to FIG 58-55

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908079

main90119-08079

9015950327

main90159-50327

9046812023

main90468-12023

9163160825

main91631-60825

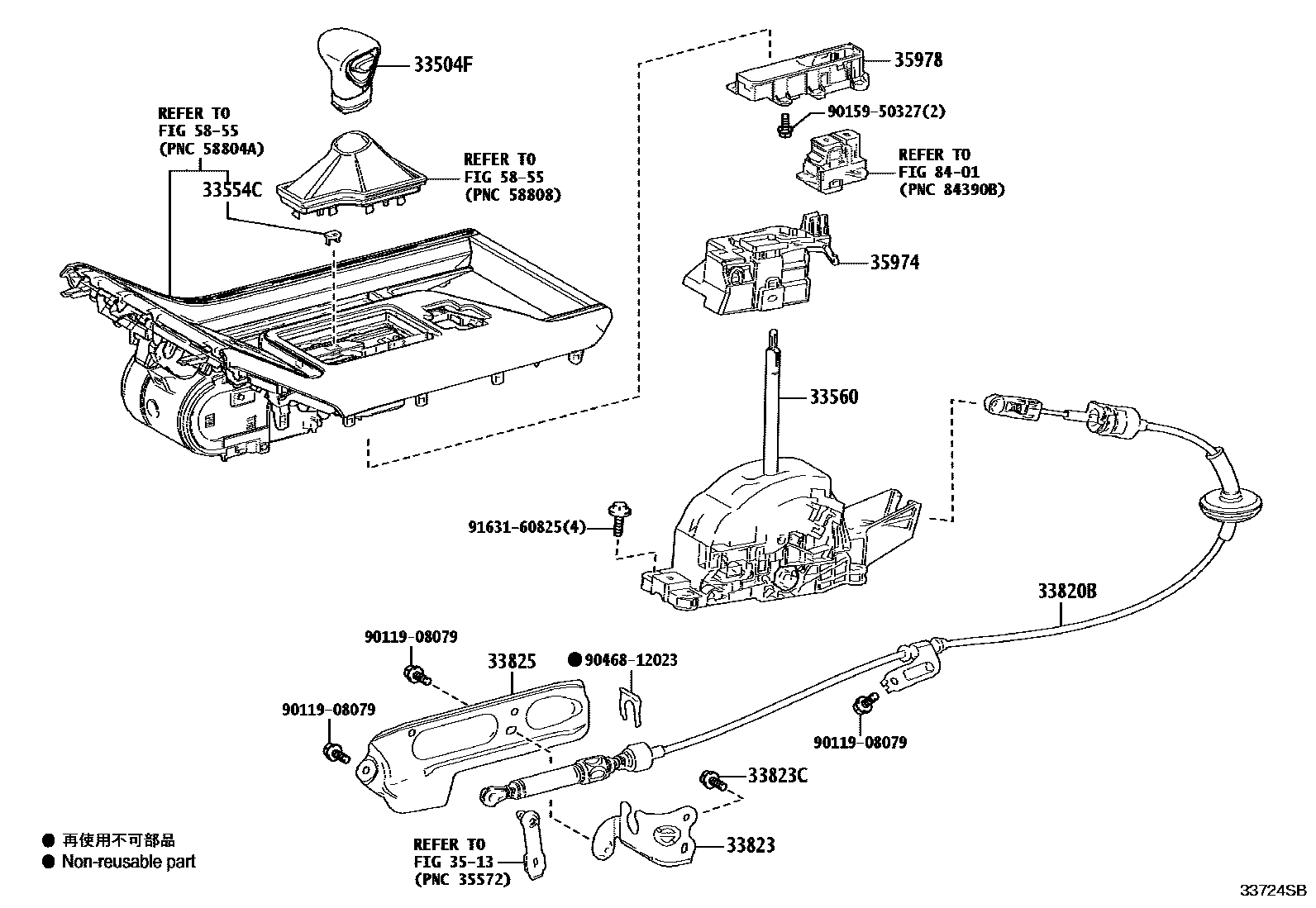

16 parts on this diagram · 1 diagram in section
