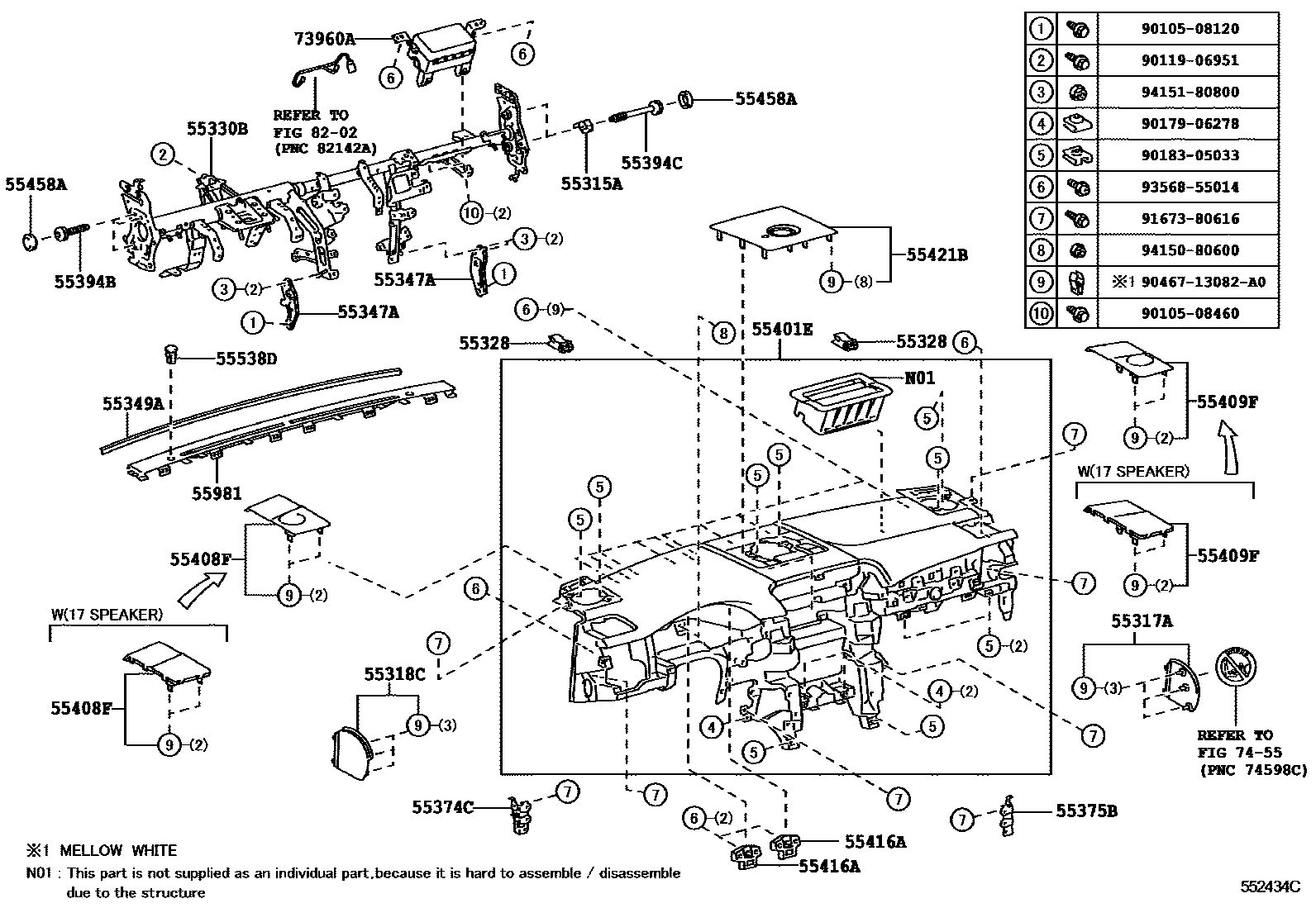

INSTRUMENT PANEL & GLOVE COMPARTMENT

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53040×2i200911-201308

55317PATCH, INSTRUMENT PANEL

main55316-35060i201908

55317APANEL, INSTRUMENT SIDE, RH

main55317-60060-A0i200911-201308

ECRU,TRIM00

main55317-60060-C0i201308-201908

BLACK,TRIM2#

main55317-60060-E0i201308-201908

SEPIA,TRIM4#

main55317-60150-C0i202108

BLACK,TRIM0#,2#,4#

main55317-60160-C0i202108-202208

BLACK LINE PACKAGE&DOOR TRIM-FOR BLACK LINE,BLACK,TRIM1#,2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-60150-A0i201308-201908

ECRU,TRIM0#

main55318-60150-C0i201908-202108

BLACK,TRIM0#,2#,4#

main55318-60150-E0i200911-201308

SEPIA,TRIM00,40

main55318-60240-C0i202108

BLACK,TRIM0#,2#,4#

main55318-60250-C0i202108-202208

BLACK LINE PACKAGE&DOOR TRIM-FOR BLACK LINE,BLACK,TRIM1#,2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090×2i200911-201308

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-60270i200911-201308

main55330-60570i202008-202108

main55330-60650i202108

55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1

main55347-60110i200911-201308

main55348-60120i201908

55349ACUSHION, INSTRUMENT PANEL

main55349-60100i200911-201308

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-60110i200911-201308

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-60110i201308-201908

55394BBOLT, INSTRUMENT PANEL

main55394-48050×3i201308-201908

55394CBOLT, INSTRUMENT PANEL

main55394-48060×2i201308-201908

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-60934-C1i201308-201512

BLACK,TRIM2#,4#

main55401-60934-E2i200911-201308

SEPIA,TRIM0#

main55401-60937-C1i201512-201908

BLACK,TRIM00,2#,4#

main55401-60937-E2i201512-201908

SEPIA,TRIM00

main55401-60940-C0i202108

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,2#,4#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-60160-C0i201908

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,2#,4#

main55408-60180-C0supersedes 55472-60160-C0i200911-201308

AUDIO-EMV,DVD CHANGER,17SPEAKER,BLACK,TRIM2#,4#; AUDIO-EMV,DVD CHANGER,SDARS,17SPEAKER,BLACK,TRIM2#,4#

main55408-60180-E0i201308-201908

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER,SEPIA,TRIM0#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-60110-C0i201908

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,2#,4#

main55409-60060-C0supersedes 55473-60110-C0i200911-201308

AUDIO-EMV,DVD CHANGER,17SPEAKER,BLACK,TRIM2#,4#; AUDIO-EMV,DVD CHANGER,SDARS,17SPEAKER,BLACK,TRIM2#,4#

main55409-60060-E0i201308-201908

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER,SEPIA,TRIM0#

55416ARETAINER, METER HOOD, NO.1

main55416-60090×2i200911-201308

55421BPANEL, INSTRUMENT CLUSTER FINISH, UPPER

main55421-60150-C0i201908

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,2#,4#

main55510-60050-C0supersedes 55421-60150-C0i200911-201308

AUDIO-EMV,DVD CHANGER,17SPEAKER,BLACK,TRIM2#,4#; AUDIO-EMV,DVD CHANGER,SDARS,17SPEAKER,BLACK,TRIM2#,4#

main55510-60050-E0supersedes 55421-60150-E0i200911-201308

AUDIO-EMV,DVD CHANGER,17SPEAKER,SEPIA,TRIM0#; AUDIO-EMV,DVD CHANGER,SDARS,17SPEAKER,SEPIA,TRIM0#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-50100×5i201908-202108

55538DCOVER, SUNSHINE SENSOR HOLE

main55538-48010i200911-201308

main55538-60050i201908

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-60030-C0i201908

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,2#,4#

main55981-60030-E1i201308-201908

SEPIA,TRIM0#,20,40

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-60240i200911-201206

main73960-60250i201206-201308

main73960-60290i201609-201706

main73960-60291i201707-201908

main73960-60350i202008

COSTA RICA SPEC

7455CAUTION PLATE

→ Go to FIG 74-55

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508120

main90105-08120

9010508460

main90105-08460

9011906951

main90119-06951

9017906278

main90179-06278

9018305033

main90183-05033

9046713082A0

main90467-13082A0

9167380616

main91673-80616

9356855014

main93568-55014

9415080600

main94150-80600

9415180800

main94151-80800

33 parts on this diagram · 4 diagrams in section
