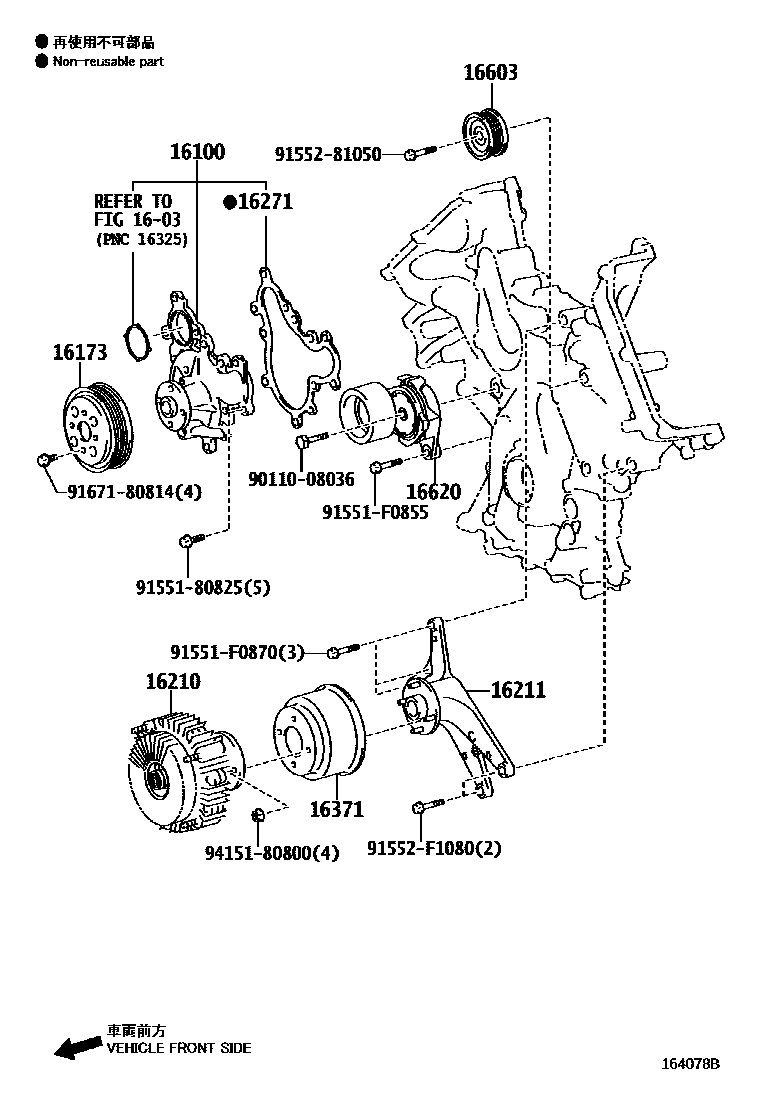

WATER PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-39555i1URFE..URJ150200911-201308

16173PULLEY, WATER PUMP

main16173-38030i1URFE..URJ150200911-201308

main16173-38031i1URFE..URJ150202005

16210COUPLING ASSY, FLUID

main16210-38080i1URFE..URJ150200911-201308

main16210-38081i1URFE..URJ150201411-201712

main16210-38082i1URFE..URJ150201801-201908

16211BRACKET, FLUID COUPLING

main16380-38020i1URFE..URJ150200911-201308

16271GASKET, WATER PUMP

main16271-38030i1URFE..URJ150200911-201308

16371PULLEY, FAN

main16371-38010i1URFE..URJ150200911-201308

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-38010i1URFE..URJ150200911-201212

main16603-38011i1URFE..URJ150201212-201308

main16603-38012i1URFE..URJ150201903-201908

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0S010i1URFE..URJ150200911-201209

main16620-0S011i1URFE..URJ150201209-201308

main16620-0S012i1URFE..URJ150201707-201908

9011008036

main90110-08036

9155180825

main91551-80825

91551F0855

main91551-F0855

91551F0870

main91551-F0870

9155281050

main91552-81050

91552F1080

main91552-F1080

9167180814

main91671-80814

9415180800

main94151-80800

17 parts on this diagram · 1 diagram in section
