WATER PUMP

1105CYLINDER BLOCK

→ Go to FIG 11-05

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

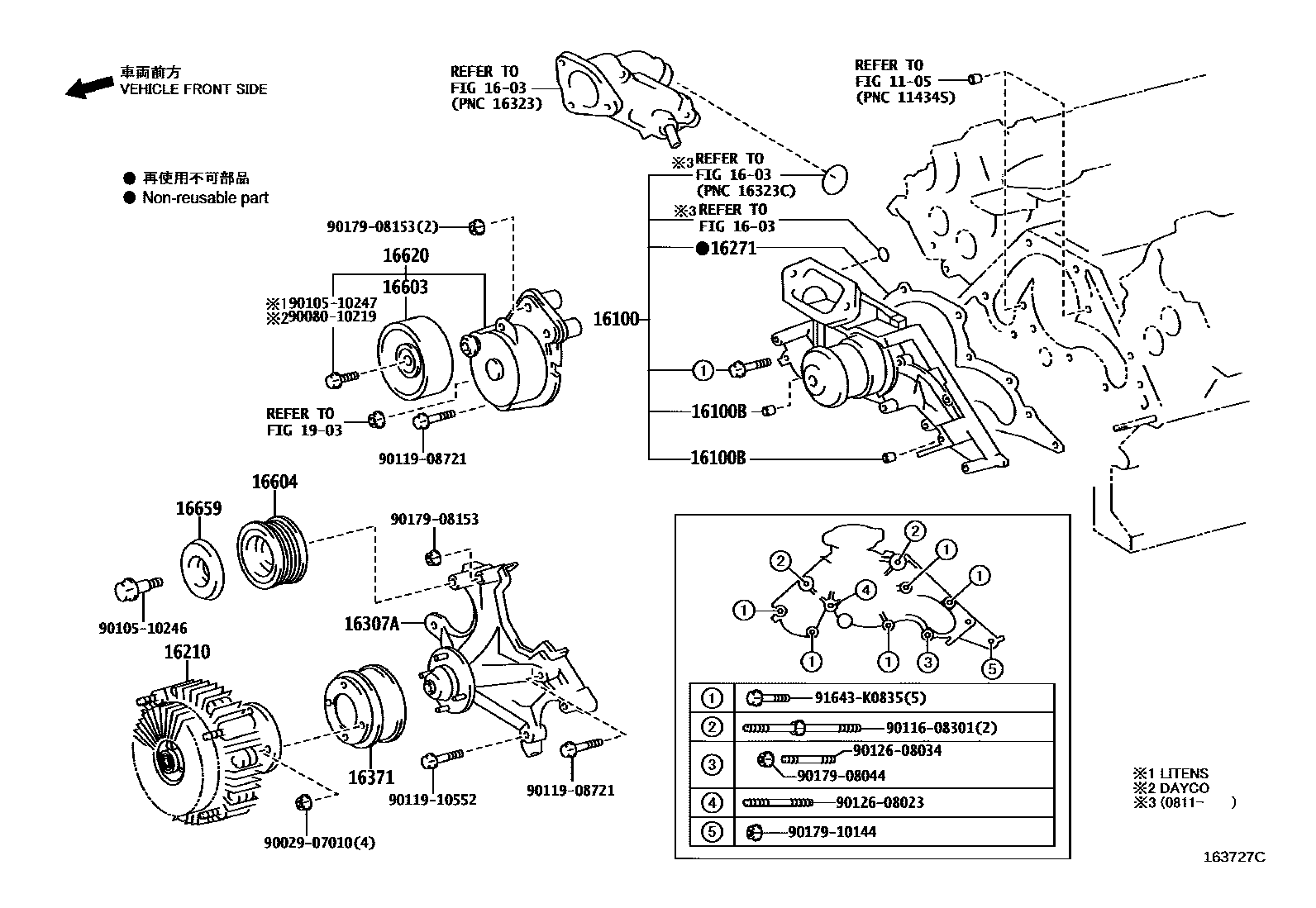

16100PUMP ASSY, ENGINE WATER

main16100-59275i2UZFE..UZJ120200211-200811

main16100-59276i2UZFE..UZJ120200811

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021×2i2UZFE..UZJ120200211

16210COUPLING ASSY, FLUID

main16210-50090i2UZFE..UZJ120200211-200411

main16210-50100i2UZFE..UZJ120200411-200508

main16210-50101i2UZFE..UZJ120200508

16271GASKET, WATER PUMP

main16271-50010i2UZFE..UZJ120200211

16307ABRACKET SUB-ASSY, FAN

main16307-50012i2UZFE..UZJ120200211

16371PULLEY, FAN

main16371-50040i2UZFE..UZJ120200211

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0W010i2UZFE..UZJ120200211-200411

LITENS

main16603-0W030i2UZFE..UZJ120200211

DAYCO

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-50030i2UZFE..UZJ120200211

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W100i2UZFE..UZJ120200211-200609

main16620-0W101i2UZFE..UZJ120200609

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-50022i2UZFE..UZJ120200211

1903ALTERNATOR

→ Go to FIG 19-03

9002907010

main90029-07010

9008010219

main90080-10219

9010510246

main90105-10246

9010510247

main90105-10247

9011608301

main90116-08301

9011908721

main90119-08721

9011910552

main90119-10552

9012608023

main90126-08023

9012608034

main90126-08034

9017908044

main90179-08044

9017908153

main90179-08153

9017910144

main90179-10144

91643K0835

main91643-K0835

26 parts on this diagram · 1 diagram in section
