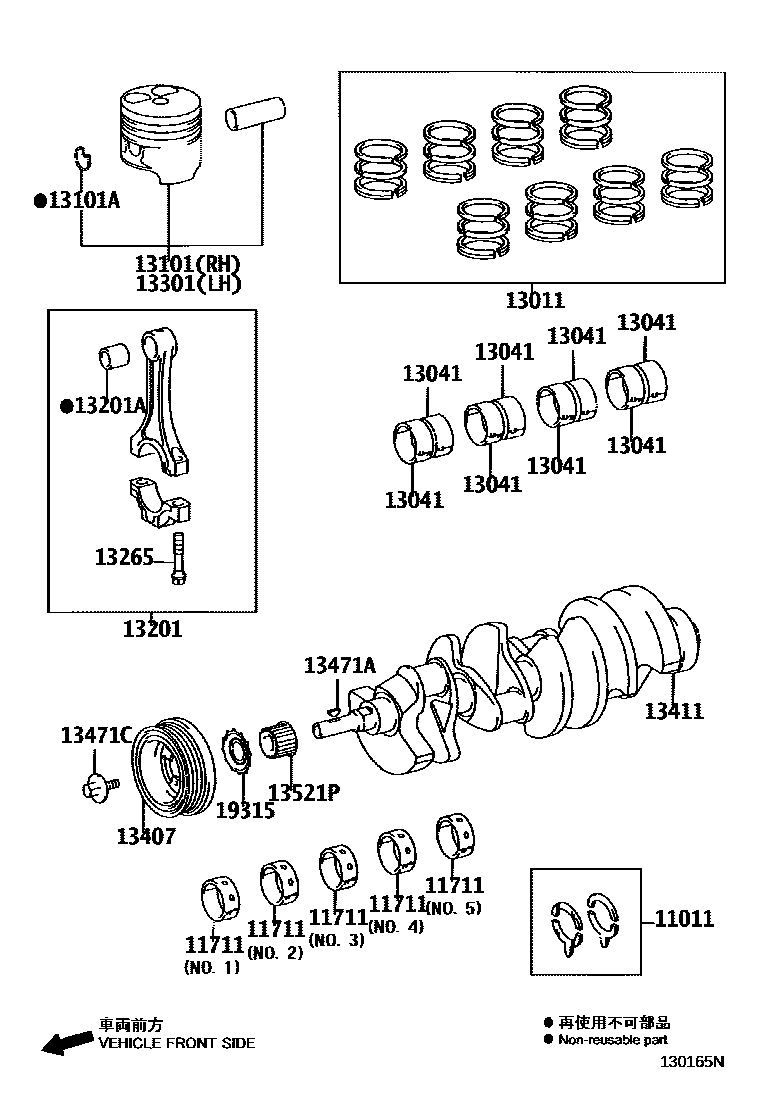

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
O/S 0.125
11711BEARING, CRANKSHAFT
MARK1,NO.2,3,4 REFER R/M
MARK2,NO.2,3,4 REFER R/M
MARK3,NO.2,3,4 REFER R/M
MARK4,NO.2,3,4 REFER R/M
MARK5,NO.2,3,4 REFER R/M
MARK1,NO.2,3,4 REFER R/M
MARK2,NO.2,3,4 REFER R/M
MARK3,NO.2,3,4 REFER R/M
MARK4,NO.2,3,4 REFER R/M
MARK5,NO.2,3,4 REFER R/M
MARK3,NO.1,5 REFER R/M
MARK4,NO.1,5 REFER R/M
MARK5,NO.1,5 REFER R/M
MARK6,NO.1,5 REFER R/M
MARK7,NO.1,5 REFER R/M
MARK3,NO.1,5 REFER R/M
MARK4,NO.1,5 REFER R/M
MARK5,NO.1,5 REFER R/M
MARK6,NO.1,5 REFER R/M
MARK7,NO.1,5 REFER R/M
13011RING SET, PISTON
STD
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
MARK6,REFER REPAIR MANUAL
MARK7,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 3,REFER REPAIR MANUAL
STD,MARK1,REFER REPAIR MANUAL
STD,MARK2,REFER REPAIR MANUAL
STD,MARK3,REFER REPAIR MANUAL
STD,MARK1,REFER REPAIR MANUAL
STD,MARK2,REFER REPAIR MANUAL
STD,MARK3,REFER REPAIR MANUAL
O/S 0.50
O/S 0.50
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
13301PISTON SUB-ASSY, W/PIN, LH
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 3,REFER REPAIR MANUAL
STD,MARK1,REFER REPAIR MANUAL
STD,MARK2,REFER REPAIR MANUAL
STD,MARK3,REFER REPAIR MANUAL
STD,MARK1,REFER REPAIR MANUAL
STD,MARK2,REFER REPAIR MANUAL
STD,MARK3,REFER REPAIR MANUAL
O/S 0.50
O/S 0.50
O/S 0.50
13407DAMPER SUB-ASSY, CRANKSHAFT
13411CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521PPULLEY, CRANKSHAFT TIMING
19315PLATE, CRANK ANGLE SENSOR, NO.1
