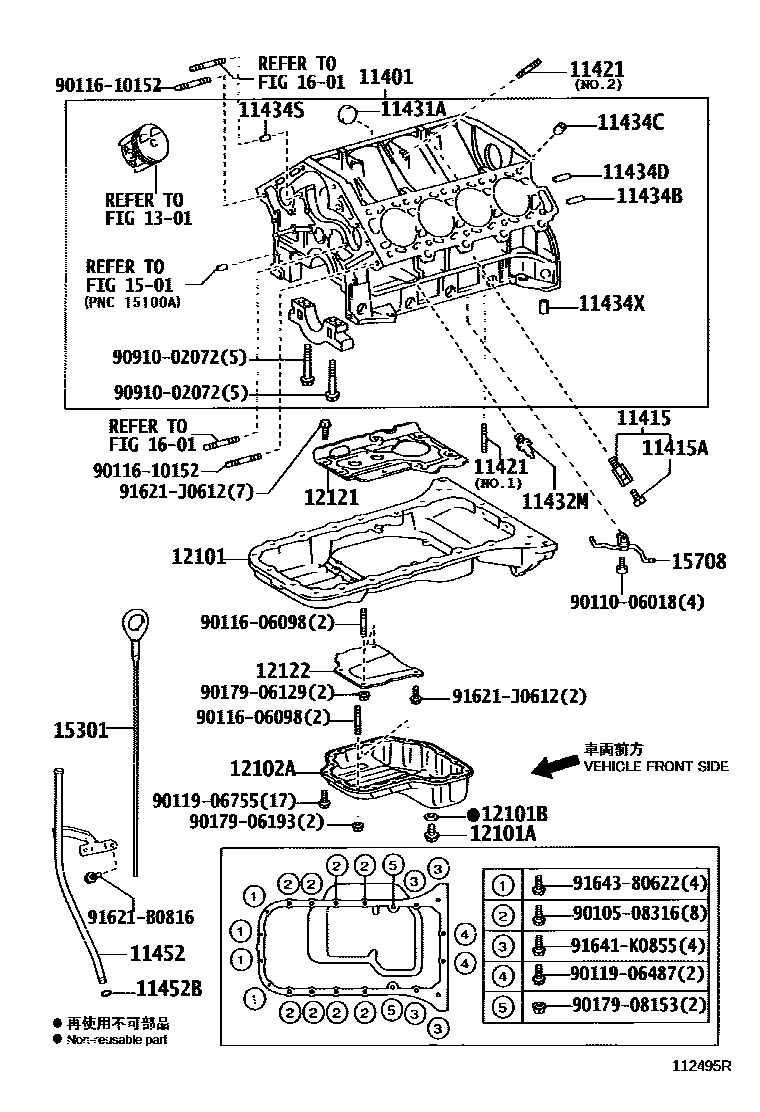

CYLINDER BLOCK

11401BLOCK SUB-ASSY, CYLINDER

main11401-59755i2UZFE..UZJ120200211-200411

main11401-59776i2UZFE..UZJ120200411-200505

main11401-59777i2UZFE..UZJ120200505-200703

main11401-59778i2UZFE..UZJ120200703-200908

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09095×2i2UZFE..UZJ120200211

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087×2i2UZFE..UZJ120200211

11421BOLT, STUD(FOR OIL PAN)

main90126-08030×2i2UZFE..UZJ120200211-200411

main90126-08039×2i2UZFE..UZJ120200411

NO.2

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-63500×8i2UZFE..UZJ120200211

11432MUNION(FOR CYLINDER BLOCK)

main90404-53001i2UZFE..UZJ120200211

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i2UZFE..UZJ120200211

L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-16001×4i2UZFE..UZJ120200211

L=20,OD=16

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003×2i2UZFE..UZJ120200211

L=14,OD=6

11434SPIN, RING(FOR WATER PUMP SET)

main90253-11021×2i2UZFE..UZJ120200211

11434XPIN, RING(FOR CHAIN CACE)

main90253-11021×2i2UZFE..UZJ120200211

11452GUIDE, OIL LEVEL GAGE

main11452-50160i2UZFE..UZJ120200211-200411

main11452-50190i2UZFE..UZJ120200411

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i2UZFE..UZJ120200211

12101PAN SUB-ASSY, OIL

main12111-50130i2UZFE..UZJ120200211-200411

main12111-50131i2UZFE..UZJ120200411

12101APLUG(FOR OIL PAN DRAIN)

main90341-12023i2UZFE..UZJ120200211

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2UZFE..UZJ120200211

12102APAN SUB-ASSY, OIL, NO.2

main12102-50130i2UZFE..UZJ120200211

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-50170i2UZFE..UZJ120200211

12122PLATE, OIL PAN BAFFLE, NO.2

main12122-50020i2UZFE..UZJ120200211

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-50120i2UZFE..UZJ120200211

15708NOZZLE SUB-ASSY, OIL, NO.1

main15790-50010×4i2UZFE..UZJ120200411

1601WATER PUMP

→ Go to FIG 16-01

9010508316

main90105-08316

9011006018

main90110-06018

9011606098

main90116-06098

9011610152

main90116-10152

9011906487

main90119-06487

9011906755

main90119-06755

9017906129

main90179-06129

9017906193

main90179-06193

9017908153

main90179-08153

9091002072

main90910-02072

91621B0816

main91621-B0816

91621J0612

main91621-J0612

91641K0855

main91641-K0855

9164380622

main91643-80622

38 parts on this diagram · 1 diagram in section
