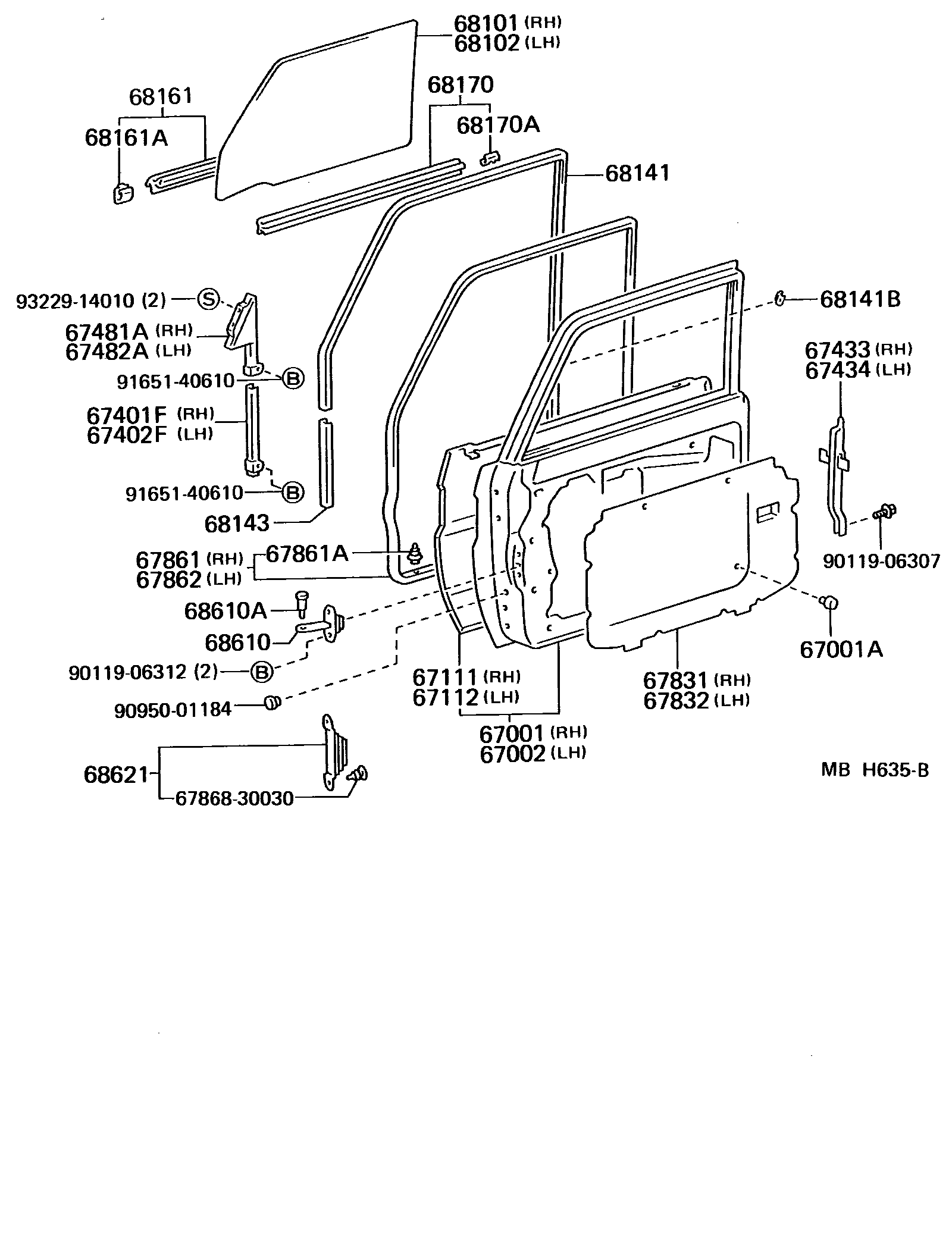

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67433FRAME, FRONT DOOR WINDOW, REAR LOWER RH
67434FRAME, FRONT DOOR WINDOW, REAR LOWER LH
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
67862WEATHERSTRIP, FRONT DOOR, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TEM,T=4.0,*TEM,T=4.0
*TEM,T=4.0,W/*VW,*TEM,T=4.0
*TT,T=4.0,*TT,T=4.0
*TT,T=4.0,W/*VW,*TT,T=4.0
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TEM,T=4.0,*TEM,T=4.0
*TEM,T=4.0,W/*VW,*TEM,T=4.0
*TT,T=4.0,*TT,T=4.0
*TT,T=4.0,W/*VW,*TT,T=4.0
68141RUN, FRONT DOOR GLASS
68141BCLIP, DOOR GLASS RUN
68143RUN, FRONT DOOR GLASS, LOWER
68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER
RH
W/*VW,RH
LH
W/*VW,LH
68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
RH
W/*VW,RH
LH
W/*VW,LH
68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68610CHECK ASSY, FRONT DOOR
68610APIN(FOR FRONT DOOR CHECK)
68621SEAL, DOOR CHECK
6786830030CLIP, FRONT DOOR GLASS WEATHERSTRIP
main67868-30030
9011906307
main90119-06307
9011906312
main90119-06312
9095001184
main90950-01184
9165140610
main91651-40610
9322914010
main93229-14010
34 parts on this diagram · 2 diagrams in section
