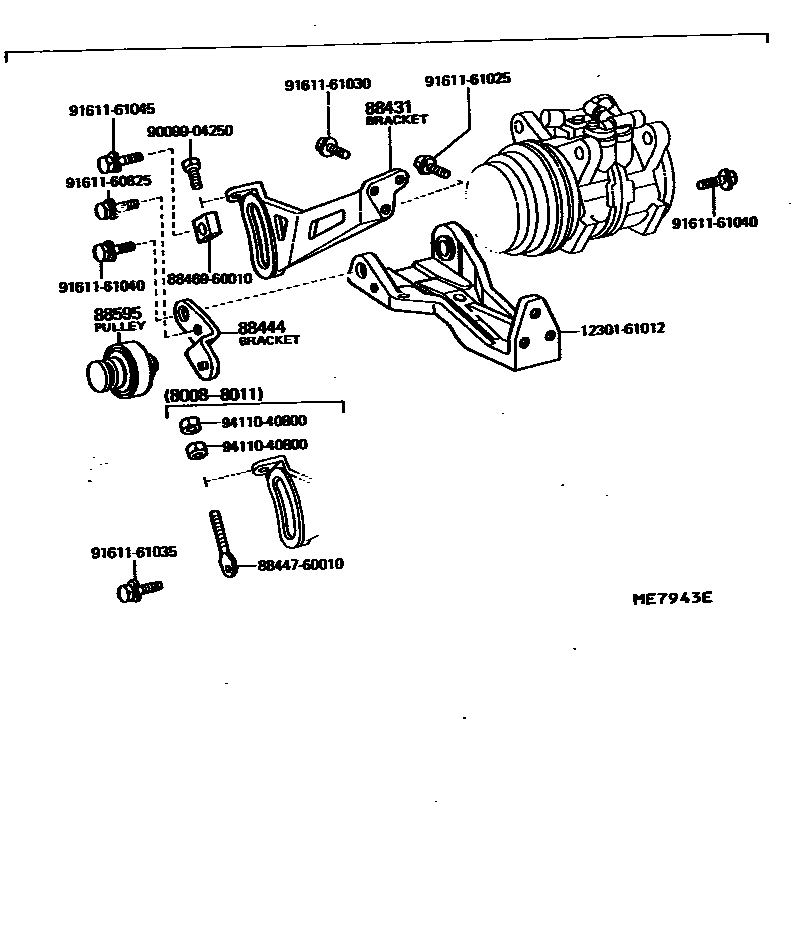

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88437-60100iFJ40..VKC..USA198008-198011

main88437-60170iFJ40..VKC..USA198011-198309

88444BRACKET, IDLE PULLEY

main88444-60020iFJ40..VKC..USA198008-198309

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-20060iFJ40..VKC..USA198008-198309

1230161012BRACKET SUB-ASSY, ENGINE MOUNTING, FRONT RH

main12301-61012

8844760010PLATE, COMPRESSOR BELT ADJUSTING

main88447-60010

8846960010SWITCH, PRESSURE CONTROL

main88469-60010

9009904250

main90099-04250

9161160825

main91611-60825

9161161025

main91611-61025

9161161030

main91611-61030

9161161035

main91611-61035

9161161040

main91611-61040

9161161045

main91611-61045

9411040800

main94110-40800

14 parts on this diagram · 3 diagrams in section
