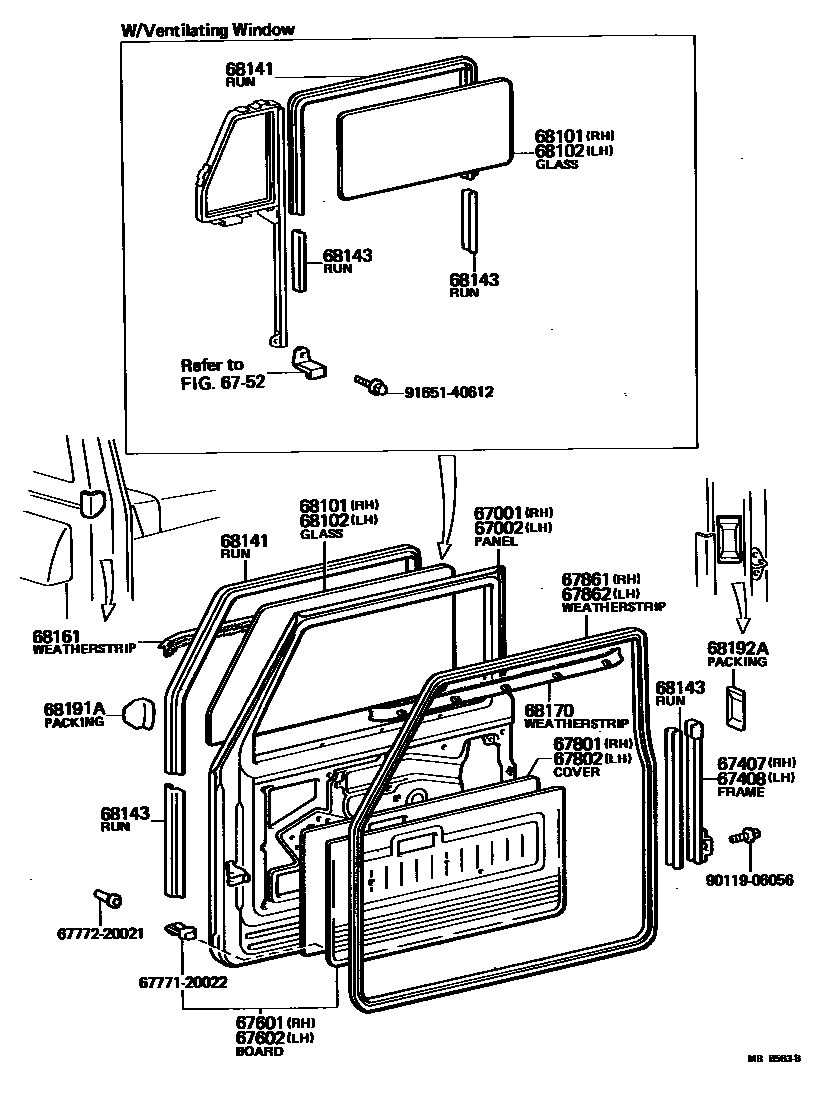

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-90800iBJ42,FJ40198008-198110

main67001-90802iBJ42,FJ40198110-198410

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-90800iBJ42,FJ40198008-198110

main67002-90802iBJ42,FJ40198110-198410

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67047-90300iBJ42,FJ40198008-198410

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67047-90300iBJ42,FJ40198008-198410

6752FRONT DOOR VENTILATOR WINDOW

→ Go to FIG 67-52

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-90304iBJ42,FJ40198008-198410

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-90304iBJ42,FJ40198008-198410

67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH

main67801-90300iBJ42,FJ40198008-198410

67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH

main67802-90300iBJ42,FJ40198008-198410

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-90300iBJ42,FJ40198008-198410

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-90300iBJ42,FJ40198008-198410

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-90800iBJ42,FJ40198008-198410

*TEM,T=4.0,W/O *VW

main68111-90801iBJ42,FJ40198008-198410

*TEM,T=4.0,W/*VW

main68111-90802iBJ42,FJ40198008-198410

*TT,T=4.0,W/O *VW

main68111-90803iBJ42,FJ40198008-198410

*TT,T=4.0,W/*VW

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68111-90800iBJ42,FJ40198008-198410

*TEM,T=4.0,W/O *VW

main68111-90801iBJ42,FJ40198008-198410

*TEM,T=4.0,W/*VW

main68111-90802iBJ42,FJ40198008-198410

*TT,T=4.0,W/O *VW

main68111-90803iBJ42,FJ40198008-198410

*TT,T=4.0,W/*VW

68141RUN, FRONT DOOR GLASS

main68105-90302×2iBJ42,FJ40198008-198410

W/O *VW

main68105-90303×2iBJ42,FJ40198008-198410

W/*VW

68143RUN, FRONT DOOR GLASS, LOWER

main67434-90300×4iBJ42,FJ40198008-198410

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-90802×2iBJ42,FJ40198008-198410

W/O *VW

main68160-90803iBJ42,FJ40198008-198410

RH,W/*VW

main68210-90801iBJ42,FJ40198008-198410

LH,W/*VW

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68160-90300×2iBJ42,FJ40198008-198410

W/O *VW

main68160-90301iBJ42,FJ40198008-198410

RH,W/*VW

main68170-90302iBJ42,FJ40198008-198410

LH,W/*VW

68191APACKING, FRONT DOOR WEATHERSTRIP, FRONT

main68191-90300×2iBJ42,FJ40198008-198410

68192APACKING, FRONT DOOR WEATHERSTRIP, REAR

main68192-90300×2iBJ42,FJ40198008-198112

main68194-90800iBJ42,FJ40198112-198410

RH

main68195-90800iBJ42,FJ40198112-198410

LH

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9011906056

main90119-06056

9165140612

main91651-40612

23 parts on this diagram · 1 diagram in section
