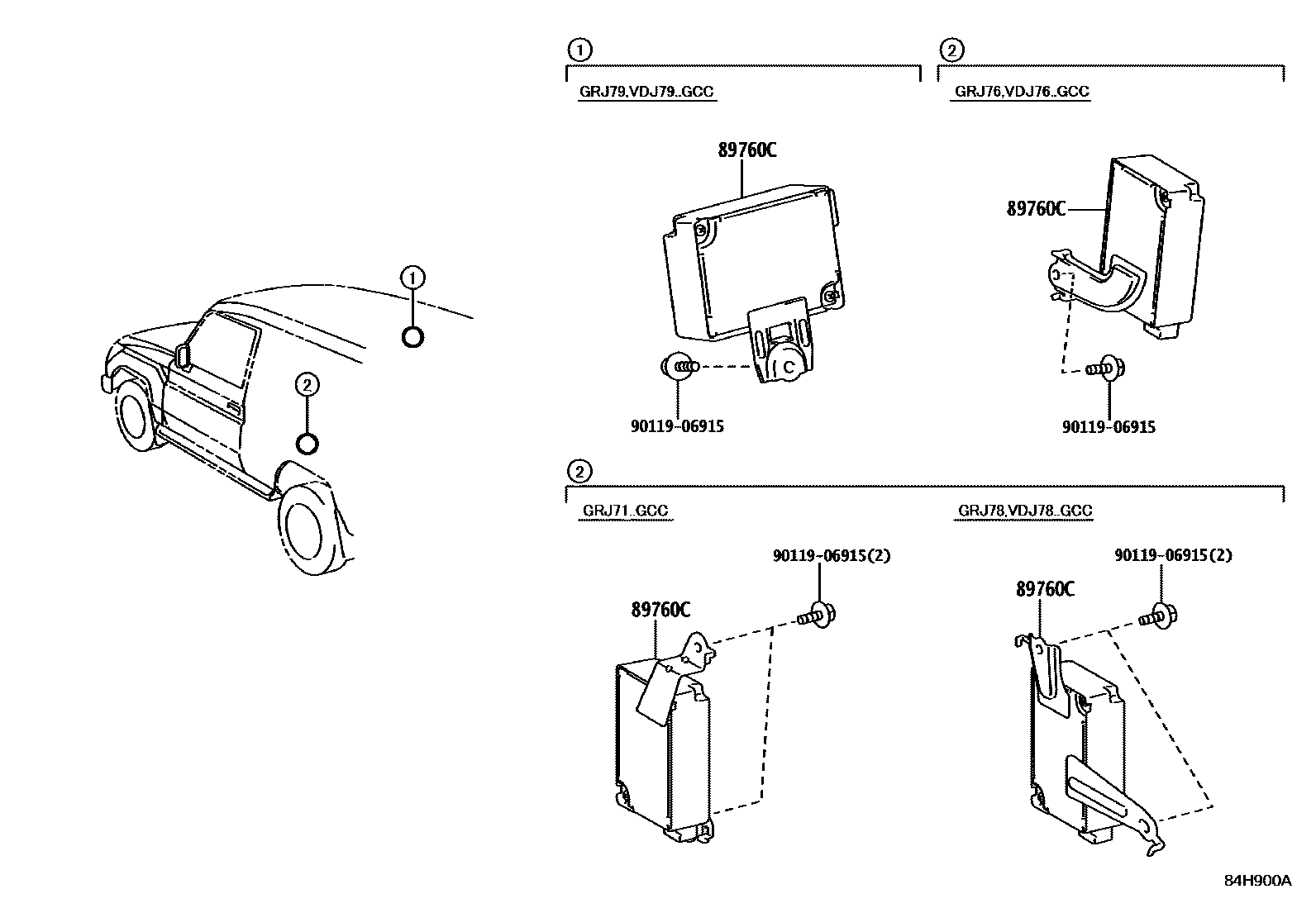

TIRE PRESSURE WARNING SYSTEM

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-60340i201701-201709

main89760-60341i201709-202106

main89760-60350i201701-201709

main89760-60351i201709-202106

main89760-60352i202309-202409

main89760-60200supersedes 89760-60300i201701-201709

TIRE & DISK WHEEL-265/70R16 7JJ ALUMINUM WITHOUT(TUBE)

main89760-60201supersedes 89760-60301i201709-202106

TIRE & DISK WHEEL-265/70R16 7JJ ALUMINUM WITHOUT(TUBE)

main89760-60202supersedes 89760-60302i202107-202309

TIRE & DISK WHEEL-265/70R16 7JJ ALUMINUM WITHOUT(TUBE); TIRE & DISK WHEEL-70TH PACKAGE P & DARK GRAY&REAR SEAT-TRANSVERSE SEAT

main89760-60320supersedes 89760-60330i201701-201709

TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM WITHOUT(TUBE)

main89760-60321supersedes 89760-60331i201709-202106

TIRE & DISK WHEEL-265/70R16C 7JJ ALUMINUM WITHOUT(TUBE)

main89760-60322supersedes 89760-60332i202309

TIRE & DISK WHEEL-265/70R16C 7J ALUMINUM; TIRE & DISK WHEEL-265/70R16C 7J ALUMINUM WITHOUT(TUBE)

9011906915

2 parts on this diagram · 3 diagrams in section
