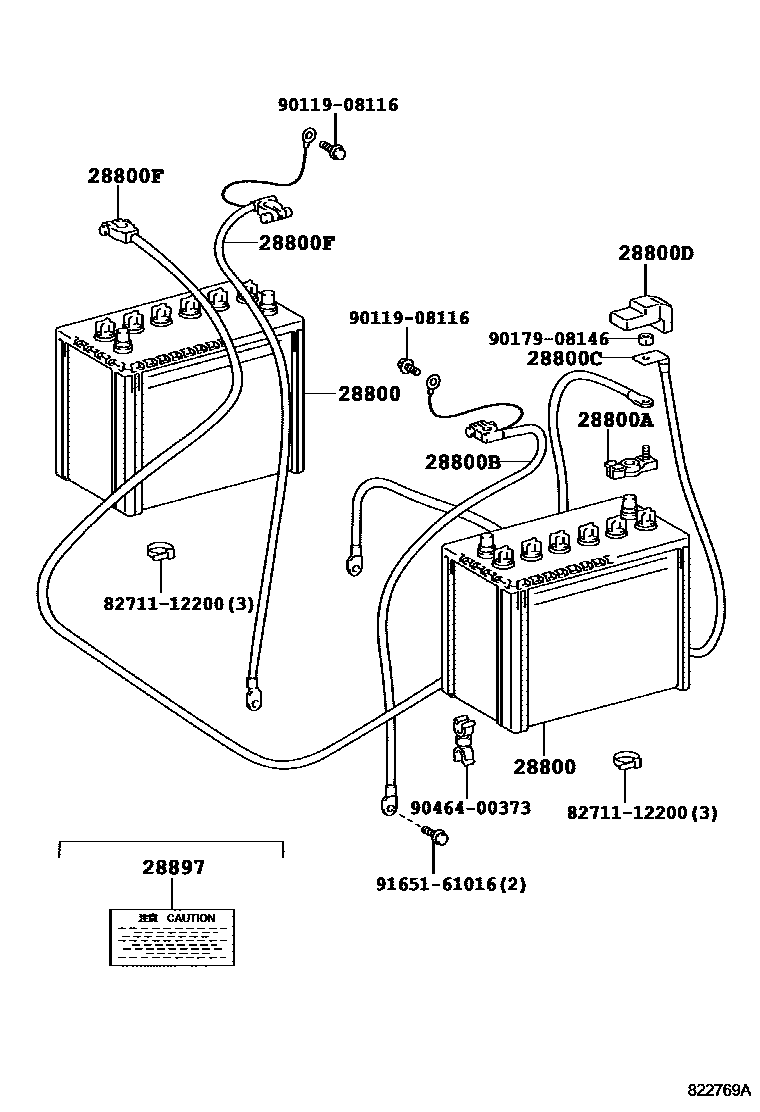

BATTERY & BATTERY CABLE

0001 12-BATTERY 0002 12-BATTERY 0003 11-BATTERY 0004 1FOR PAKISTAN GOVERNMENT 0007 1

28800BATTERY

main28800-17111i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU199908-200701

80D26R,FURUKAWA

main28800-17111i1HZ..HZJ71,79..RHD..(PIC,SOT)..GEN199908-200701

80D26R,24V,FURUKAWA

main28800-17121i1FZFE..FZJ79..GEN..IV;1FZFE..FZJ71,78..LHD..GEN199908-200808

80D26L,FURUKAWA

main28800-17131i1HDFTE..HDJ7#200108-200701

105D31R,FURUKAWA

main28800-17150i1HZ..HZJ78,79..LHD..GEN..CBU200408-200701

95D31R,FURUKAWA

main28800-30082i1FZF,3F..FJ70,75,FZJ70,75..RHD..(GEN,SA)199001-199911

48D26R

main28800-33111i1HZ..HZJ70..SOT199706-199811

55D26R,FOR PAKISTAN GOVERNMENT

main28800-42010i3L..LJ7#..LHD199305-199308

75D31L,COLD SPEC

main28800-42010i1FZF..FZJ70..SOT199001-200003

75D31L

main28800-42020i1FZFE..FZJ70,75..CBU200003-200405

75D31L,YUASA

main28800-42030i22R..RJ70..ARL199001-199101

55D23L

main28800-46012i1FZF,3F..FJ75,FZJ75..RHD..GEN;1HZ,2LT,3L,1PZ..HZJ75,LJ7#,PZJ70,75..GCC,GEN,SA;1FZF,3F,2H,1PZ..FJ70,FZJ70,HJ75,PZJ73..RHD..(GEN,SA)199001-199305

75D31R

main28800-46050i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU199305-200007

75D31R,24V

main28800-46050i1PZ..PZJ70,73;1PZ..PZJ75..4F199305-200007

75D31R

main28800-50160i1FZFE..FZJ7#..GCC200602-200701

80D26L,FURUKAWA

main28800-54020i1FZFE..FZJ79..IV;1FZFE..FZJ71,78..LHD..GEN200705-200808

80D26L,YUASA

main28800-54232i1HZ..HZJ7#..GEN;1FZFE..FZJ71,78,79..RHD..GEN200103-200701

80D26R,YUASA

main28800-54232i1HZ..HZJ71,78,79;1FZFE..FZJ71,78,79..RHD199908-200103

80D26R

main28800-54232i1HZ..HZJ71,78,79;1FZFE..FZJ71,78,79..RHD199908-200103

80D26R,24V

main28800-54232i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU200103-200108

80D26R,MATSUSHITA,YUASA

main28800-54232i1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV;1FZFE..FZJ71,78,79..RHD200103-200206

80D26R,MATSUSHITA

main28800-54232i1HZ..HZJ7#..GEN;1FZFE..FZJ71,78,79..RHD..GEN200103-200701

80D26R,24V,YUASA

main28800-54370i1HZ..HZJ78,79..LHD..GEN..CBU200408-200701

95D31L,FURUKAWA

main28800-54400i1FZFE,1HZ..FZJ70,75,HZJ7#..ARL199305-199501

75D31R,75D31R-MF & 75D31L-MF

main28800-54472i1HZ..HZJ79;1HZ..HZJ71,78..ARL,GEN;1FZFE..FZJ71,78,79..RHD200103-200206

80D26R,24V,MATSUSHITA

main28800-54472i1HZ..HZJ71,79..RHD..(PIC,SOT)..GEN200103-200206

80D26R,MATSUSHITA

main28800-56040i22R..RJ70..SOT199001-199608

48D26L

main28800-61030i1FZFE,1HZ..FZJ70,75,HZJ7#..ARL199001-199501

75D31R

main28800-61031i1FZFE,1HZ..FZJ75,HZJ75..ARL199501-199603

75D31R

main28800-64061i1HZ..HZJ78,79..LHD..GEN..CBU200408-200701

95D31R,YUASA

main28800-64131i1FZFE..FZJ71,74,78,79..LHD199908-200103

80D26L,YUASA

main28800-64132i1FZFE..FZJ71,74,78,79..GCC200103-200705

80D26L,YUASA

main28800-64132i1FZFE..FZJ71,74,78,79..LHD199908-200103

80D26L

main28800-64151i1FZFE..FZJ71,74,78,79..LHD199908-200103

80D26L,PANASONIC

main28800-64182i1HZ..HZJ78,79..LHD..GEN..CBU200408-200701

95D31L,YUASA

main28800-66040i1HZ..HZJ78,79..ARL,GCC200602-200701

80D26R

main28800-67070i1KZT..KZJ7#199305-199604

105D31R

main28800-67123i1HDFTE..HDJ7#200108-200701

105D31R

28800ATERMINAL, BATTERY POSITIVE

main82675-60020i1FZFE..FZJ78,79..ARL199908-200701

main82675-60030i1FZFE..FZJ79..GEN..IV;1FZFE..FZJ71,78..LHD..GEN199908-200808

main90982-05030i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU199608-200007

SUMITOMO

main90982-05030i1FZFE..FZJ70,75..GEN..CBU199001-200405

main90982-05030i1HZ..HZJ70..SOT199706-200611

FOR PAKISTAN GOVERNMENT

main90982-05031i22R,1KZT,3L..KZJ7#,LJ7#,RJ7#..HT199001-199608

main90982-05035i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU199805-200007

YAZAKI

28800BCABLE, BATTERY TO GROUND

main82123-60050i3L..LJ7#199001-199604

main82123-60050i3L..LJ79..LHD;3L..LJ72..LHD..HT..STD199108-199305

COLD SPEC,LH,BATTERY TO ENGINE

main82123-60060i1HZ,1PZ..HZJ7#,PZJ7#199001-199608

main82123-60061i1HZ..HZJ70,75199608-200007

main82123-60062i1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV199908-200701

main82123-60062i1HZ..HZJ78,79..LHD..GEN..CBU200408-200701

LH

main82123-60080i3F..FJ7#..LHD199001-199208

main82123-60090i1FZF..FZJ7#..LHD199201-199305

main82123-60090i1FZF..FZJ7#..LHD199305-199608

RH BATTERY TO E/G

main82123-60091i1FZF..FZJ73,75..LHD;1FZ#..FZJ70,75..LHD..CBU199608-200106

main82123-60092i1FZFE..FZJ79..GEN..IV;1FZFE..FZJ71,78..LHD..GEN199908-200808

main82123-60100i1FZ#..FZJ70,75..RHD199201-199305

main82123-60100i1FZ#..FZJ70,75..RHD199305-199608

BATTERY TO E/G(LH)

main82123-60101i1FZ#..FZJ70,75..RHD199608-199911

main82123-60102i1FZFE..FZJ71,78,79..RHD..GEN199908-200701

main82123-60110i1FZ#..FZJ70;1FZF..FZJ73,75;1FZFE..FZJ75..ARL199305-199711

E/G TO FRAME(LH)

main82123-60150i1KZT..KZJ7#199305-199410

main82123-60151i1KZT..KZJ7#199410-199604

main82123-60200i1HZ..HZJ78,79..LHD..GEN..CBU200408-200701

RH

main82123-90K00i3L..LJ79..LHD;3L..LJ72..LHD..HT..STD199108-199305

COLD SPEC,RH,BATTERY TO ENGINE

main82123-90K01i3F,2H..FJ7#,HJ75..RHD199001-199208

main82123-90K06i22R..RJ7#199001-199604

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-60070i22R..RJ70..SOT199001-199604

main82122-60080i3L..LJ79..LHD;3L..LJ72..LHD..HT..STD199108-199208

COLD SPEC

main82122-60080i1HZ,1PZ..HZJ7#,PZJ7#199001-199208

main82122-60081i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199305-200007

main82122-60081i1HZ,1PZ..HZJ7#,PZJ7#199208-199604

COLD SPEC

main82122-60082i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU199908-200701

main82122-60100i1HZ,1PZ..HZJ75,PZJ70..(PIC,SOT)..4F..CBU199001-199208

BANGLADESH SPEC

main82122-60101i1HZ,1PZ..HZJ75,PZJ70..RHD..(PIC,SOT)..GEN..CBU199208-200007

2-BATTERY

main82122-60102i1HZ..HZJ71,79..RHD..(PIC,SOT)..GEN199908-200701

2-BATTERY

main82122-60130i3F..FJ7#..RHD199001-199208

main82122-60140i3F..FJ7#..LHD199001-199208

main82122-60160i1FZF..FZJ7#..LHD199201-199208

main82122-60161i1FZF..FZJ7#..LHD199208-199908

main82122-60170i1FZF..FZJ70,75..RHD199201-199208

main82122-60171i1FZF..FZJ75..SA199208-200701

main82122-60210i3L..LJ7#199208-199604

main82122-60220i1KZT..KZJ7#199305-199604

main82122-60390i1FZFE..FZJ79..GEN..IV;1FZFE..FZJ71,78..LHD..GEN199908-200808

main82122-60410i1HDFTE..HDJ7#200108-200701

main82122-90K10i2H..HJ75199001-199108

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12150i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU199608-200007

BANGLADESH SPEC,BATTERY TO BATTERY

main82821-12150i1HZ..HZJ71,79..RHD..(PIC,SOT)..GEN199908-200701

BATTERY TO BATTERY

main82821-24010i1HZ..HZJ78..STD;1FZFE..FZJ78..GCC;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV;1FZFE..FZJ71,78..RHD..GEN;1FZFE,1HDFTE..FZJ71,HDJ79..ARL,GCC;1FZFE,1H#..FZJ74,79,HDJ78,HZJ199908-200701

BATTERY TO STARTER

main82821-24010i22R,1FZ#,3F,1HZ,2H,2LT,3L,1PZ..FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200808

main82821-24010i1HZ..HZJ70..SOT199706-199811

FOR PAKISTAN GOVERNMENT

main82821-24010i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU199608-200007

BANGLADESH SPEC,BATTERY TO STARTER

28800FCABLE, BATTERY TO BATTERY

main82122-60150i3L..LJ7#..LHD199108-199604

main82122-60400i1HZ..HZJ78,79..LHD..GEN..CBU200408-200701

main82122-90K03i1HZ..HZJ7#..RHD..(PIC,SOT)..GEN..CBU199001-199608

main82124-36011i1HZ..HZJ71,79..RHD..(PIC,SOT)..GEN199608-200701

main90982-03013i1HZ..HZJ71..SOT199706-200611

FOR PAKISTAN GOVERNMENT

28897PLATE, BATTERY CAUTION

main28897-54030i3L..LJ7#..LHD199305-200701

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011908116

main90119-08116

9017908146

main90179-08146

9046400373

main90464-00373

9165161016

main91651-61016

12 parts on this diagram · 5 diagrams in section
