EPC Data

FRONT DOOR PANEL & GLASS

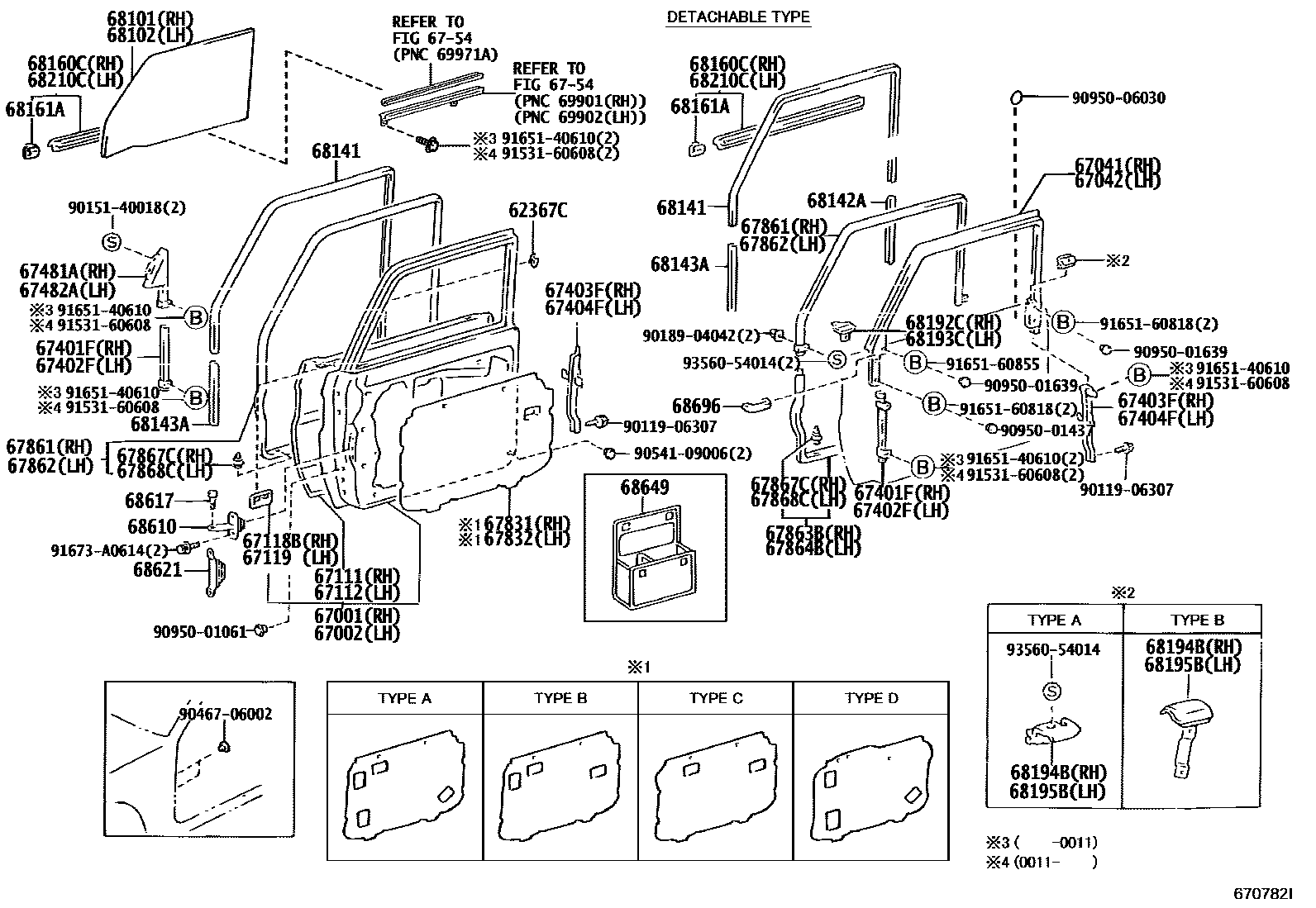

Parts diagram
62367CCLIP, DOOR WINDOW GLASS
main62367-10010×2i199001-199909
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-60100i199001-199208
W(*EL)
main67001-60101i199305-199401
POWER WINDOW OR E/MGT DOOR LOCK
main67001-60110i199001-199208
W(*EL)
main67001-60111i199208-199305
W(*EL)
main67001-60120i199001-199208
W(*EL & SASH DETACHABLE TYPE)
main67001-60121i199305-199501
W(*EL & SASH DETACHABLE TYPE)
main67001-60170i199001-199208
W(SASH DETACHABLE TYPE & DOOR *RCM)
main67001-60171i199208-199305
W(SASH DETACHABLE TYPE & DOOR *RCM)
main67001-60180i199001-199208
W(DOOR *RCM)
main67001-60181i199501-199508
W(DOOR *RCM)
main67001-60190i199001-199208
W(DOOR *RCM)
main67001-60191i199305-199908
COLOMBIA HI-GRADE PACKAGE; W(DOOR *RCM)
main67001-60200i199001-199208
W(SASH DETACHABLE TYPE & DOOR *RCM)
main67001-60201i199208-199305
W(SASH DETACHABLE TYPE & DOOR *RCM)
main67001-60210i199001-199208
main67001-60211i199305-200106
main67001-60220i199001-199208
main67001-60221i199305-199608
W(DOOR MIRROR)
main67001-60230i199001-199208
W(SASH DETACHABLE TYPE)
main67001-60231i199305-199501
W(SASH DETACHABLE TYPE)
main67001-60240i199001-199208
W(DOOR *RCM)
main67001-60241i199305-199308
W(DOOR *RCM)
main67001-60250i199001-199208
W(DOOR *RCM)
main67001-60251i199305-199308
W(DOOR *RCM)
main67001-60280i199004-199208
W(DOOR *RCM)
main67001-60281i199208-199305
W(DOOR *RCM)
main67001-60290i199004-199208
main67001-60291i199208-199305
main67001-60301i199308-199508
W(DOOR *RCM)
main67001-60320i199004-199208
main67001-60321i199208-199305
main67001-60330i199004-199208
W(DOOR *RCM)
main67001-60331i199305-199308
W(DOOR *RCM)
main67001-60490i199908-200701
main67001-60500i199909-200701
W(POWER DOOR LOCK)
main67001-60510i200109-200808
VENEZUELA SPEC
67002PANEL SUB-ASSY, FRONT DOOR, LH
main67002-60100i199001-199208
W(*EL & SASH DETACHABLE TYPE)
main67002-60101i199208-199305
W(*EL & SASH DETACHABLE TYPE)
main67002-60110i199001-199208
W(*EL)
main67002-60111i199305-199501
POWER WINDOW OR E/MGT DOOR LOCK; W(*EL)
main67002-60120i199001-199208
W(*EL)
main67002-60121i199208-199305
W(*EL)
main67002-60170i199001-199208
W(SASH DETACHABLE TYPE & DOOR *RCM)
main67002-60171i199208-199305
W(SASH DETACHABLE TYPE & DOOR *RCM)
main67002-60180i199001-199208
W(DOOR *RCM)
main67002-60181i199305-199501
W(REMOTE CONTROL OUTER MIRROR)
main67002-60190i199001-199208
W(DOOR *RCM)
main67002-60191i199305-199908
COLOMBIA HI-GRADE PACKAGE; W(DOOR *RCM)
main67002-60200i199001-199208
W(SASH DETACHABLE TYPE)
main67002-60201i199501-199908
W(SASH DETACHABLE TYPE)
main67002-60210i199001-199208
main67002-60211i199305-199501
main67002-60220i199001-199208
main67002-60221i199305-199608
W(DOOR MIRROR)
main67002-60230i199001-199208
W(DOOR *RCM)
main67002-60231i199305-199608
main67002-60240i199001-199208
W(DOOR *RCM)
main67002-60241i199208-199305
W(DOOR *RCM)
main67002-60250i199001-199208
W(SASH DETACHABLE TYPE & DOOR *RCM)
main67002-60251i199305-199308
W(SASH DETACHABLE TYPE & DOOR *RCM)
main67002-60280i199004-199208
W(DOOR *RCM)
main67002-60281i199208-199305
W(DOOR *RCM)
main67002-60290i199004-199208
main67002-60291i199208-199305
main67002-60301i199305-199308
W(DOOR *RCM)
main67002-60320i199004-199208
main67002-60321i199208-199305
main67002-60330i199004-199208
W(DOOR *RCM)
main67002-60331i199305-199308
W(DOOR *RCM)
main67002-60490i199908-200108
main67002-60500i199909-200701
W(POWER DOOR LOCK)
main67002-60510i200109-200808
VENEZUELA SPEC
67041FRAME SUB-ASSY, FRONT DOOR WINDOW, RH
main67041-60040i199501-200007
main67041-60070i199706-199711
FOR PAKISTAN GOVERNMENT
main67041-90K02i199001-199301
67042FRAME SUB-ASSY, FRONT DOOR WINDOW, LH
main67042-60040i199305-199401
main67042-60070i199706-199711
FOR PAKISTAN GOVERNMENT
main67042-90K02i199001-199301
67111PANEL, FRONT DOOR, OUTER RH
main67111-60080i199001-199305
W(SASH DETACHABLE TYPE DOOR)
main67111-60100i199305-200106
main67111-60150i199305-199501
W(SASH DETACHABLE TYPE DOOR & DOOR OUTER VIEW MIRROW(*RCM))
main67111-60160i199508-200405
W(REMOTE CONTROL OUTER MIRROR)
main67111-60180i199305-199308
main67111-60190i199004-199305
main67111-60200i199308-199508
W(DOOR OUTER VIEW MIRROR(*RCM))
main67111-60210i199004-199305
W(DOOR OUTER VIEW MIRROR(*RCM))
67112PANEL, FRONT DOOR, OUTER LH
main67112-60080i199501-200007
W(SASH DETACHABLE TYPE DOOR)
main67112-60100i199305-200405
main67112-60150i199401-199501
W(SASH DETACHABLE TYPE & DOOR *RCM)
main67112-60160i199305-199908
COLOMBIA HI-GRADE PACKAGE
main67112-60180i199004-199305
main67112-60190i199004-199305
main67112-60200i199308-199508
W(DOOR OUTER VIEW MIRROR(*RCM))
main67112-60210i199004-199305
W(DOOR OUTER VIEW MIRROR(*RCM))
67118BRETAINER, OUTER REAR VIEW MIRROR, RH
main67118-60020i199305-199604
main67118-90K00i199305-200405
main67118-90K01×2i199001-199208
W(DOOR OUTER VIEW MIRROR(*RCM))
67119RETAINER, OUTER REAR VIEW MIRROR, LH
main67118-60020i199305-199604
main67118-90K00i199305-200106
main67118-90K01i199305-199401
W(DOOR *RCM)
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
main67401-60020i199305-199604
main67401-90K00i199908-200808
main67401-90K01i199305-199501
W(SASH DETACHABLE TYPE DOOR)
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
main67402-60020i199004-199305
main67402-90K00i199908-200701
main67402-90K01i199001-199305
W(SASH DETACHABLE TYPE DOOR)
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
main67403-60020i199004-199208
main67403-60021i199305-199604
main67403-60030i199001-199208
main67403-60031i199208-199301
W(VENT WINDOW)
main67403-60032i199305-199908
W(VENT WINDOW)
main67403-60040i199001-199208
W(SASH DETACHABLE TYPE DOOR)
main67403-60041i199208-199301
W(SASH DETACHABLE TYPE DOOR)
main67403-60042i199908-200701
W(SASH DETACHABLE TYPE DOOR)
main67403-60050i199001-199208
W(*EL)
main67403-60051i199305-199908
COLOMBIA SPEC; W(*EL)
main67403-60060i199001-199208
W(*EL & SASH DETACHABLE TYPE DOOR)
main67403-60061i199208-199305
W(*EL & SASH DETACHABLE TYPE DOOR)
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
main67404-60030i199004-199208
main67404-60031i199208-199305
main67404-60040i199001-199208
main67404-60041i199208-199301
COLUMBIA SPEC & W(SASH FIXED TYPE DOOR)
main67404-60042i199305-199911
main67404-60050i199001-199208
W(SASH DETACHABLE TYPE DOOR)
main67404-60051i199208-199301
W(SASH DETACHABLE TYPE DOOR)
main67404-60052i199301-199305
W(SASH DETACHABLE TYPE DOOR)
main67404-60060i199001-199208
W(*EL)
main67404-60061i199208-199305
W(*EL)
main67404-60070i199001-199208
W(*EL & SASH DETACHABLE TYPE DOOR)
main67404-60071i199305-199501
W(*EL & SASH DETACHABLE TYPE DOOR)
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
main67481-60010i199004-199305
main67481-90K02i199908-200108
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
main67482-60010i199305-199604
main67482-90K02i199401-199501
6754FRONT DOOR WINDOW REGULATOR & HINGE
→ Go to FIG 67-54
67831COVER, FRONT DOOR SERVICE HOLE, RH
main67831-60070i199001-199208
W(*EL),TYPE A:REFER ILLUST.
main67831-60090i199305-199908
W(*EL & *PW),TYPE B:REFER ILLUST.; W(BACK DOOR ONLY *EL OR FRONT BENCH SEAT),TYPE B:REFER ILLUST.; W(FRONT BENCH SEAT),TYPE B:REFER ILLUST.
main67831-60110i199004-199305
TYPE D:REFER ILLUST.
main67831-90K04i199201-199305
TYPE C:REFER ILLUST.; W(*EL OR FRONT BENCH SEAT),TYPE C:REFER ILLUST.; W(*EL),TYPE C:REFER ILLUST.; W(BACK DOOR ONLY *EL OR FRONT BENCH SEAT),TYPE C:REFER ILLUST.; W(BACK DOOR ONLY *EL),TYPE C:REFER ILLUST.; W(FRONT BENCH SEAT),TYPE C:REFER ILLUST.; W(SASH DETACHABLE TYPE DOOR),TYPE C:REFER ILLUST.
67832COVER, FRONT DOOR SERVICE HOLE, LH
main67831-60070i199908-200701
TYPE A:REFER TO ILLUSTRATION
main67831-60090i199108-199201
W(*EL & FRONT BENCH SEAT),TYPE B:REFER ILLUST.
main67831-60110i199004-199108
W(*EL) & W(*PW),TYPE D:REFER ILLUST.; W(*EL),TYPE D:REFER ILLUST.
main67831-90K04i199108-199201
W(*EL) & W(SASH FIXED W/QUARTER WINDOW DOOR),TYPE C:REFER ILLUST.
67861WEATHERSTRIP, FRONT DOOR, RH
main67861-60020i199305-199604
main67861-60030i199004-199305
main67861-60040i199305-199911
main67861-60050i199305-199908
main67861-60060i199004-199305
main67861-60110i199908-200808
main67861-90K00i199001-199004
main67861-90K01i199001-199004
main67861-90K02i199501-200007
W(SASH DETACHABLE TYPE DOOR)
main67861-90K06i199001-199004
main67861-90K07i199001-199004
67862WEATHERSTRIP, FRONT DOOR, LH
main67862-60020i199004-199305
main67862-60030i199305-199908
main67862-60040i199908-200701
main67862-60050i199305-199604
main67862-60060i199908-200701
main67862-60110i199908-200701
main67862-90K00i199001-199004
main67862-90K01i199001-199004
main67862-90K02i199305-199401
W(SASH DETACHABLE TYPE DOOR)
main67862-90K06i199001-199004
main67862-90K07i199001-199004
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
main67863-60010i199305-199401
main67863-90K00i199001-199004
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
main67864-60010i199004-199305
main67864-90K00i199001-199004
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
main67867-12150×22i199908-200108
main67868-22020×21i199004-199305
main67868-30040×23i199001-199004
SASH DETACHABLE TYPE DOOR)
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
main67867-12150×22i199908-200808
main67868-22020×21i199004-199305
main67868-30040×2i199001-199004
W(SASH DETACHABLE TYPE DOOR)
68101GLASS SUB-ASSY, FRONT DOOR, RH
main68111-60080i199004-199201
*TEM,T=4.0
main68111-60090i199201-199305
*TT,T=4.0
main68111-60170i199908-200605
*TT,T=4.0,GREEN
main68111-60180i199608-199908
*TT,T=4.0,GREEN,W(VENT WINDOW)
main68111-60190i199909-200007
*TT,T=4.0,GREEN
main68111-60200i199608-200405
*TT,T=4.0,GREEN,W(VENT WINDOW)
main68111-90K00i199305-199501
*TEM,T=4.0
main68111-90K01i199401-199501
*TEM,T=4.0
main68111-90K02i199001-199201
*TEM,T=4.0,W(VENT WINDOW)
main68111-90K03i199401-199501
*TEM,T=4.0; *TEM,T=4.0,W(VENT WINDOW)
main68111-90K04i199001-199201
*TT,T=4.0
main68111-90K05i199305-199401
*TT,T=4.0
main68111-90K06i199305-199604
*TT,T=4.0,W(VENT WINDOW)
main68111-90K07i199208-199305
*TT,T=4.0,W(VENT WINDOW)
68102GLASS SUB-ASSY, FRONT DOOR, LH
main68112-60070i199201-199305
*TEM,T=4.0
main68112-60080i199305-199604
*TT,T=4.0
main68112-60160i199908-200808
*TT,T=4.0,GREEN
main68112-60170i199608-199908
*TT,T=4.0,GREEN,W(VENT WINDOW)
main68112-60180i199908-200701
*TT,T=4.0,GREEN
main68112-60190i199608-200007
*TT,T=4.0,GREEN,W(VENT WINDOW)
main68112-90K00i199305-199401
*TEM,T=4.0
main68112-90K01i199401-199501
*TEM,T=4.0
main68112-90K02i199001-199201
*TEM,T=4.0,W(VENT WINDOW)
main68112-90K03i199305-199401
*TEM,T=4.0; *TEM,T=4.0,W(VENT WINDOW)
main68112-90K04i199201-199208
*TT,T=4.0
main68112-90K05i199305-199401
*TT,T=4.0
main68112-90K06i199001-199201
*TT,T=4.0,W(VENT WINDOW)
main68112-90K07i199305-199608
*TT,T=4.0,W(VENT WINDOW)
68141RUN, FRONT DOOR GLASS
main68141-60020×2i199305-199604
main68141-90K02×2i199305-199401
W(SASH DETACHABLE TYPE DOOR)
main68141-90K03×2i199305-199501
main68141-90K04×2i199305-199401
W(VENT WINDOW)
68142ARUN, FRONT DOOR GLASS SIDE
main68142-90K00×2i199501-200007
68143ARUN, FRONT DOOR GLASS, NO.2
main68143-90K00×2i199401-199604
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
main68160-60020i199004-199305
main68160-90K00i199908-200808
main68160-90K01i199001-199305
W(VENT WINDOW)
main68160-90K02i199501-199908
W(SASH DETACHABLE TYPE DOOR)
68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
main68211-12160×24i199305-199604
main68211-90K00×14i199305-199401
W(VENT WINDOW)
68192CSEAL, FRONT DOOR BELT, FRONT RH
main68192-90K00i199001-199305
68193CSEAL, FRONT DOOR BELT, FRONT LH
main68193-90K00i199001-199305
68194BSEAL, FRONT DOOR BELT, REAR RH
main68194-90K00i199001-199305
TYPE A
main68194-90K01i199501-200007
TYPE B
68195BSEAL, FRONT DOOR BELT, REAR LH
main68195-90K00i199001-199305
TYPE A
main68195-90K01i199908-200701
TYPE B:REFER ILLUST.
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
main68210-60020i199305-199604
main68210-90K00i199401-199604
main68210-90K01i199908-200701
W(VENT WINDOW)
main68210-90K02i199001-199305
W(SASH DETACHABLE TYPE DOOR)
68610CHECK ASSY, FRONT DOOR
main68610-12030×2i199001-199201
main68610-60040×2i199305-199911
68617PIN, FRONT DOOR CHECK
main68617-20011×2i199305-199911
main68617-90A01×2i199001-199111
68621SEAL, DOOR CHECK
main68621-90K00×2i199001-199208
68649BAG, DOOR WINDOW FRAME HOLE COVER
main68649-90K00i199001-199305
68696PAD, BACK DOOR WINDOW FRAME, B
main68695-90K00×2i199501-199908
9011906307
main90119-06307
9015140018
main90151-40018
9018904042
main90189-04042
9046706002
main90467-06002
9054109006
main90541-09006
9095001061
main90950-01061
9095001437
main90950-01437
9095001639
main90950-01639
9095006030
main90950-06030
9153160608
main91531-60608
9165140610
main91651-40610
9165160818
main91651-60818
9165160855
main91651-60855
91673A0614
main91673-A0614
9356054014
main93560-54014

56 parts on this diagram · 6 diagrams in section

FRONT DOOR PANEL & GLASS — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
