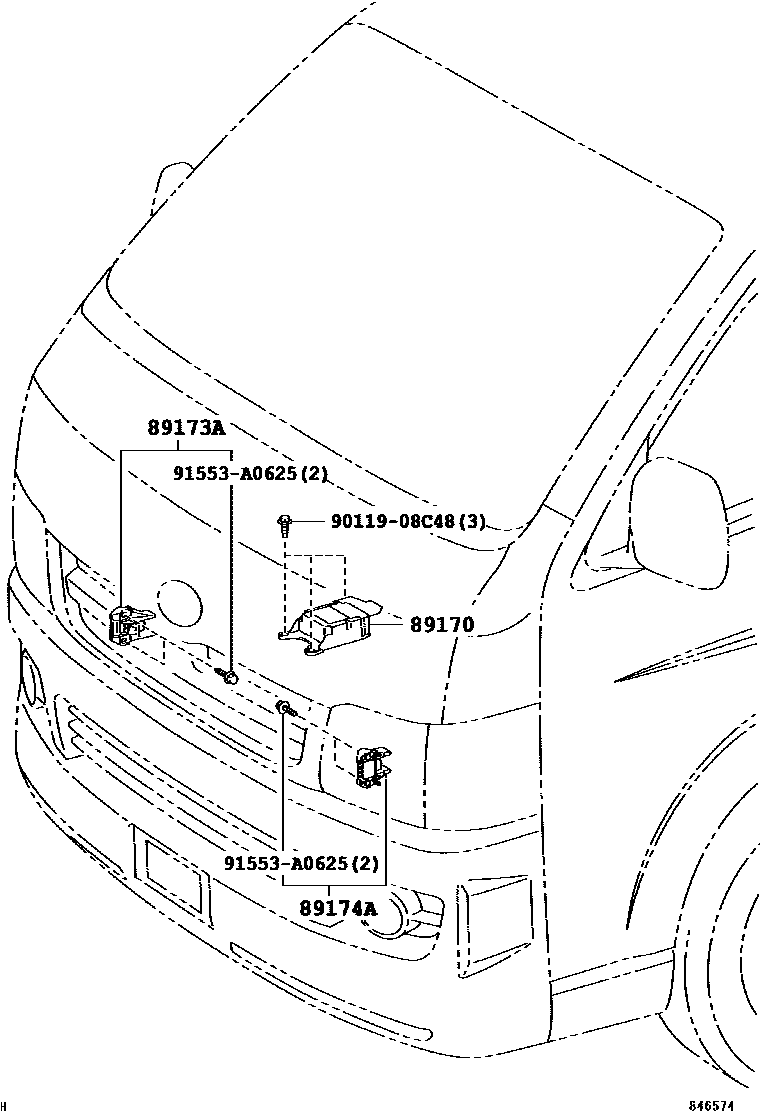

AIR BAG
89170SENSOR ASSY, AIRBAG
main89170-26250iKDH200,TRH201..5F..(ARL,SA); KDH201..LHD;TRH201..LHD..SG;TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..(03S,06S,12S,15S)..(GCC,GEN,MA,TH); KDH201..SG;KDH200,201,TRH201..ARL,SA200501-201112
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY); SRS AIR BAG-WITHOUT
main89170-26270iKDH220,222,223,TRH22#..5F..STD..(ARL,SA); KDH221;KDH220,222,223,TRH22#..STD..(ARL,SA); TRH213..LHD..10S;KDH212,TRH213..4D..(09S,11S,15S,16S);KDH220,222,LH212,222,TRH22#..CIS,GCC,GEN,TH200501-201112
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY); SRS AIR BAG-WITHOUT
main89170-26280iKDH212,TRH213..4FC..GL; TRH223..16S..GL;KDH222,TRH213..GL..(GCC,VN);KDH22#,LH212,222,TRH22#..STD;KDH212,TRH213..4D..(09S,11S,15S,16S)200501-201112
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
main89170-26300iKDH200,TRH201..5F..(ARL,SA); TRH201..SG..06S..GEN;KDH200,TRH201..ARL,SA;KDH201,203,TRH200..RHD..(ARL,GEN)201201-201312
SRS AIR BAG-WITHOUT
main89170-26320iKDH223,LH212..LHD;KDH212..(11S,16S)..5F;KDH220,222,LH222,TRH213,22#..(03S,10S,12S,13S,16S)..(CIS,GCC,GEN,TH,VN); TRH223..5F..ARL;KDH220,223,TRH221..5F..(ARL,SA); TRH223..ARL;KDH220,221,223,TRH221..RHD..(03S,14S)201201-201312
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY); SRS AIR BAG-WITHOUT
SRS AIR BAG-WITHOUT
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
89173ASENSOR, AIRBAG, FRONT RH
main89173-09270iKDH200,202..MA;KDH200..LHD..4D;KDH201,220..SP..GEN;KDH202,TRH203,223..HRF..(12S,15S)..STD;KDH203,212,LH212,TRH201,213,221..SG..(03S,09S,11S,14S,15S,16S)..5F; KDH201,212..5D..SG;KDH221,TRH213..RHD..(03S,10S,11S);KDH200,201,212,220,222,223,TRH201,22#..(03S,10S,14S)..(ARL,SA); KDH201,TRH201..SP..(GCC,GEN);TRH201,213..LHD..SG..(03S,06S,10S);KDH212,TRH213..(09S,11S,15S,16S)..5F;KDH200,202,203,220,222,LH20#,212,222,TRH203,22#..CIS,GCC,GEN,MA,TH200501-200701
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
main89173-29245iKDH201..RHD..03S..(ARL,GEN);KDH201,212,TRH201..5D..SG..GEN;KDH203,221,TRH200,213..RHD..(03S,06S,10S,11S,12S,14S);KDH200,212,220,222,223,TRH201,22#..(03S,10S,12S,14S)..(ARL,RUS,SA)200701-201402
89174ASENSOR, AIRBAG, FRONT LH
main89173-09270iKDH200,202..MA;KDH200..LHD..4D;KDH202,212,LH212,TRH20#,213,221..(HRF,SMRF)..SG..(03S,09S,11S,12S,16S)..5F; KDH212,220..4D..(GCC,GEN);KDH200,202,222,LH20#,212,222,TRH20#,213,22#..(03S,06S,09S,10S,12S,13S,15S,16S)..(CIS,GCC,GEN,MA); KDH212,TRH213..4FC;KDH200,220,222,TRH201,22#..ARL200501-200701
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE); SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
main89173-29245iKDH201..RHD..03S..(ARL,GEN);KDH201,212,TRH201..5D..SG..GEN;KDH203,221,TRH200,213..RHD..(03S,06S,10S,11S,12S,14S);KDH200,212,220,222,223,TRH201,22#..(03S,10S,12S,14S)..(ARL,RUS,SA)200701-201402
9011908C48
main90119-08C48
91553A0625
main91553-A0625
5 parts on this diagram · 1 diagram in section
