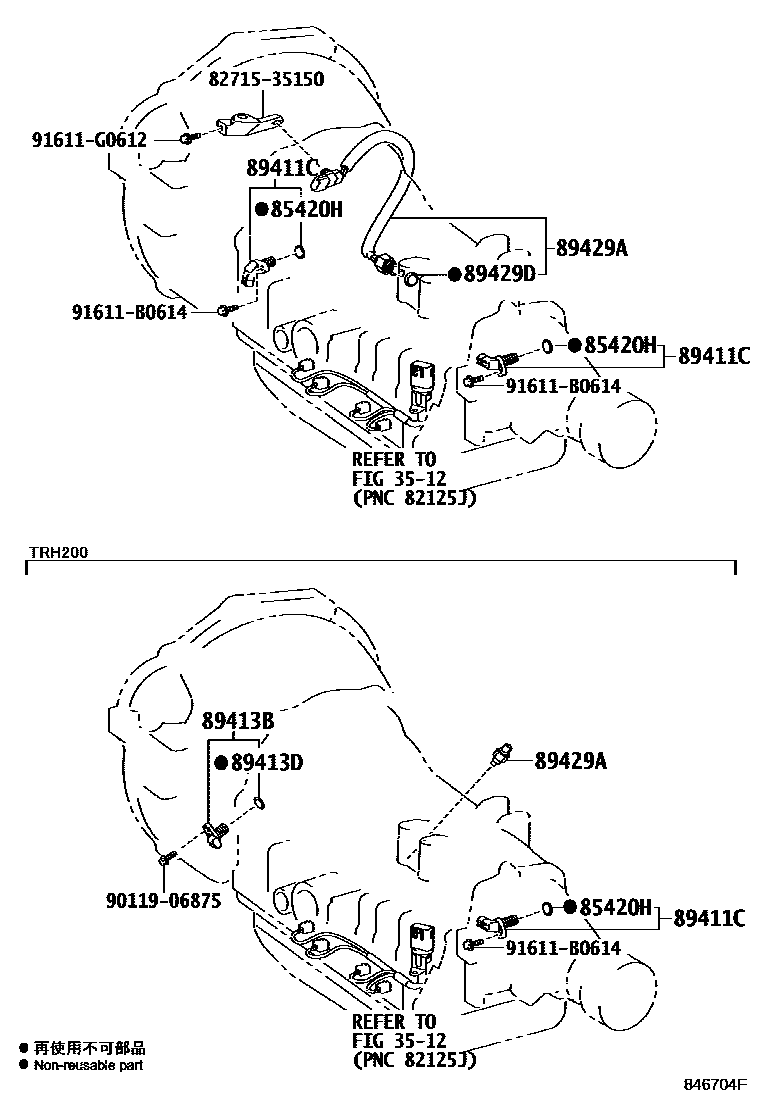

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0004 1 0005 1

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

85420HRING, O(FOR SPEED SENSOR)

main90301-11008×2iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

89411CSENSOR, SPEED

main89411-50010×2iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-22010iTRH200201308-201312

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iTRH200201308-201312

89429ASENSOR, TEMPERATURE

main89429-25010iKDH201..SP..06S..4FC201110-201312

main89429-34010iKDH201..SP..06S..4FC200501-201110

main89429-35090iTRH201,203,213,22#..4FC200501-201312

89429DRING, O(FOR TEMPERATURE SENSOR)

main90301-11006iKDH200,201,202,212,22#,TRH20#,213,22#..4FC200501-201312

8271535150BRACKET,WIRING HARNESS CLAMP

main82715-35150

9011906875

main90119-06875

91611B0614

main91611-B0614

91611G0612

main91611-G0612

11 parts on this diagram · 4 diagrams in section
