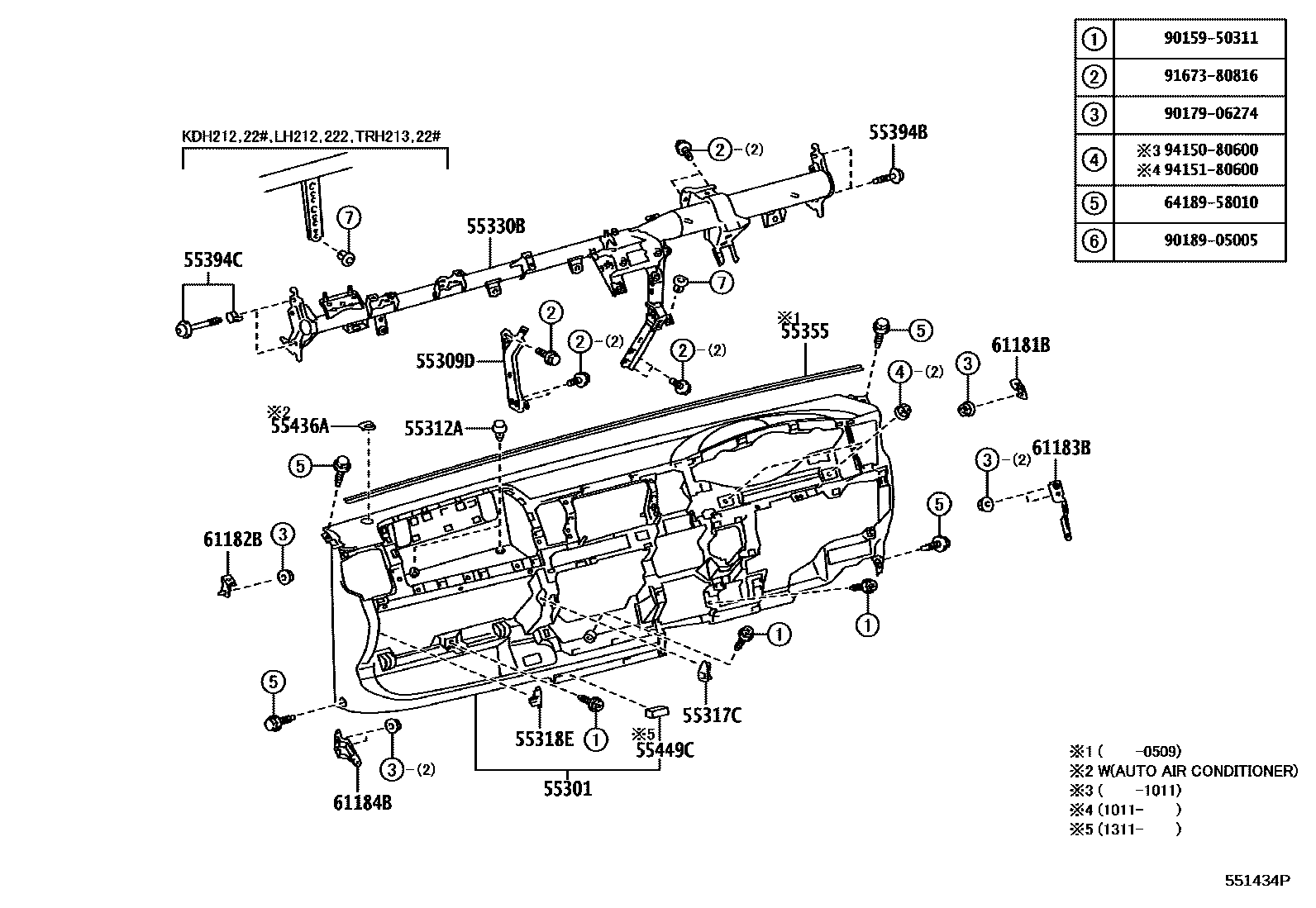

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55300-26110-B0iKDH201..TH200501-201401

DK.GRAY,TRIM1#

main55300-26120-B0iKDH201,203..TH201309-201401

DK.GRAY,TRIM1#

main55300-26130-B0iKDH20#,LH20#,TRH201,203..LHD200501-201312

DK.GRAY,TRIM1#

main55300-26150-B0iKDH222,TRH223..RHD..(ARL,GEN);KDH212,220,221,223,LH212,222,TRH213,221..RHD..STD..(ARL,GEN,SA)200501-201312

DK.GRAY,TRIM1#

main55300-26160-B0iTRH213..TH200501-201008

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DK.GRAY,TRIM1#

main55300-26160-B0iTRH213..4FC..GEN200501-201402

DK.GRAY,TRIM1#

main55300-26170-B0iTRH213..GL..VN;TRH213,223..LHD..(09S,16S);KDH212,220,222,LH212,222,TRH221..LHD..5F200501-201312

DK.GRAY,TRIM1#

main55300-26180-B0iTRH213,223..(10S,12S,13S)..(CIS,GEN)200601-201312

DK.GRAY,TRIM1#

main55300-26220-B0iTRH213..TH201008-201312

DK.GRAY,TRIM1#

55309DBRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR

main55309-26030iKDH20#,LH20#,TRH20#..RHD200501-201401

main55309-26040iKDH20#,LH20#,TRH201,203..LHD200501-201312

main55309-26050iKDH222..TH200501-201402

main55309-26060iKDH212,220,222,223,LH212,222,TRH213,22#..LHD200501-201312

55312ACLIP, INSTRUMENT PANEL

main90467-07164iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201010

main90467-07215iKDH222..TH201011-201402

55317CPATCH, INSTRUMENT SIDE, LOWER RH

main55317-26070-B0iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201203

DK.GRAY,TRIM1#

main55317-26071iKDH212,TRH213..VN201204-201205

main55317-26071-B0iKDH222..TH201204-201402

DK.GRAY,TRIM1#

55318EPATCH, INSTRUMENT SIDE, LOWER LH

main55318-26060-B0iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201203

DK.GRAY,TRIM1#

main55318-26061iKDH212,TRH213..VN201204-201205

main55318-26061-B0iKDH222..TH201204-201402

DK.GRAY,TRIM1#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-26270iKDH20#,LH20#,TRH20#..RHD200501-201401

main55330-26280iKDH20#,LH20#,TRH201,203..LHD200501-201312

main55330-26290iKDH222..RHD..(ARL,GEN,SA);KDH212,220,221,223,LH212,222,TRH213,22#..RHD200501-201402

main55330-26300iKDH212,220,222,223,LH212,222,TRH213,22#..LHD200501-201312

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-26080iKDH20#,LH20#,TRH20#200501-200509

main55355-26090iKDH212,22#,LH212,222,TRH213,22#200501-200509

55394BBOLT, INSTRUMENT PANEL

main55394-26020iKDH222..TH200501-201402

55394CBOLT, INSTRUMENT PANEL

main55394-26030iKDH222..TH200501-201402

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-26060-B0iTRH213..TH201008-201312

DK.GRAY,TRIM1#

55449CCUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2

main55448-26020iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#201311-201402

61181BBRACKET, INSTRUMENT PANEL SIDE, NO.1 RH

main61181-26020iKDH222..TH200501-201402

61182BBRACKET, INSTRUMENT PANEL SIDE, NO.1 LH

main61182-26020iKDH222..TH200501-201402

61183BBRACKET, INSTRUMENT PANEL SIDE, NO.2 RH

main61183-26020iKDH222..TH200501-201402

61184BBRACKET, INSTRUMENT PANEL SIDE, NO.2 LH

main61184-26020iKDH222..TH200501-201402

6418958010CLAMP, BACK PANEL SILENCER

main64189-58010

9015950311

main90159-50311

9017906274

main90179-06274

9018905005

main90189-05005

9167380816

main91673-80816

9415080600

main94150-80600

9415180600

main94151-80600

22 parts on this diagram · 8 diagrams in section
