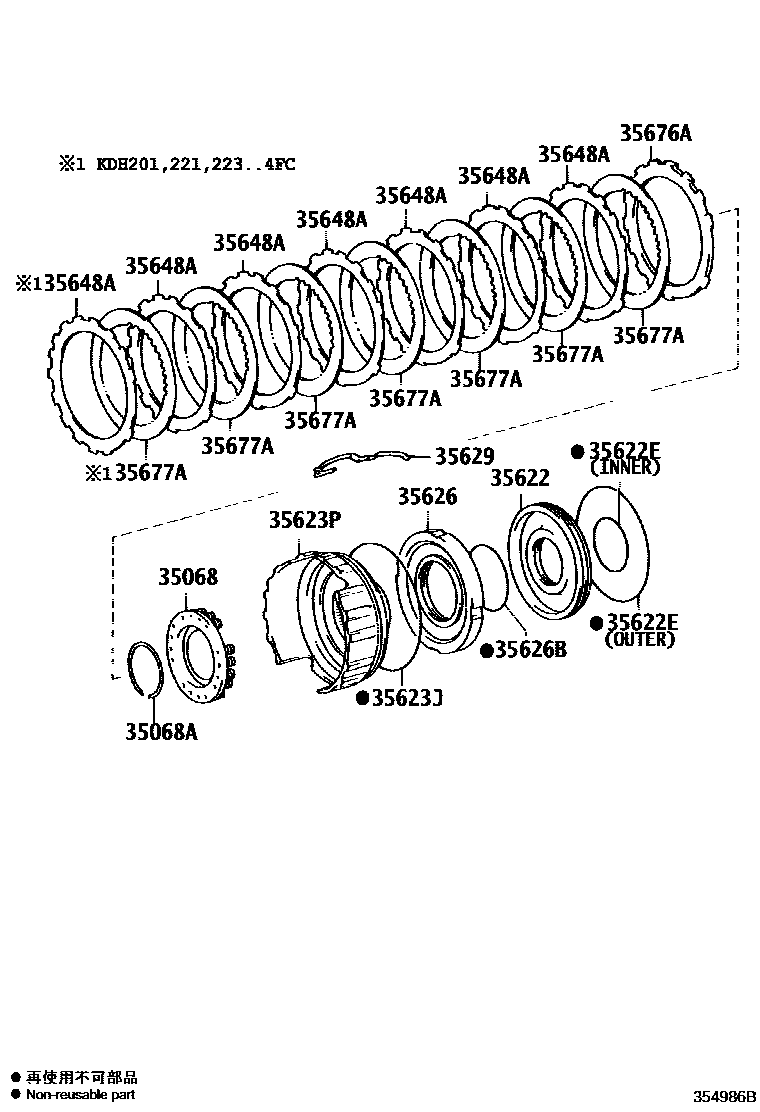

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A340E,A343E 0002 1A45DE

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-50010iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-52262iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

35622PISTON, BRAKE, NO.2

main35622-22010iTRH200201308-201312

main35622-30010iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

35622ERING, O (FOR BRAKE PISTON NO.2)

main90301-56007iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

INNER

main90301-99084iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

OUTER

35623PISTON, BRAKE, NO.3

main35623-22010iTRH200201308

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99110iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35623-14011iKDH201,221,223..4FC200610-201312

main35623-30012iKDH200,202,212,220,222,TRH201,203,213,22#..4FC200501-201312

35626SLEEVE, BRAKE REACTION

main35626-22010iTRH200201308-201312

main35626-30020iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-67005iKDH200,201,202,212,22#,TRH20#,213,22#..4FC200501-201312

35629SPRING (1ST & REVS BRAKE PLATE STOPPER)

main35629-22010iTRH200201308-201312

main35629-22020iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-30031×6iKDH200,202,212,220,222,TRH201,203,213,22#..4FC200501-201312

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-30100iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=5.2

main35676-30110iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=5.4

main35676-50010iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=5.0

main35676-50020iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=4.8

main35676-50030iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=4.6

main35676-50040iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=4.4

main35676-50050iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=4.2

main35676-50060iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=4.0

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-30180×6iKDH200,202,212,220,222,TRH201,213,22#..4FC200501-200908

main35677-60020×6iKDH200,212,TRH201,203,213,22#..4FC; KDH201,221,223..4FC200908-201312

13 parts on this diagram · 2 diagrams in section
