BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

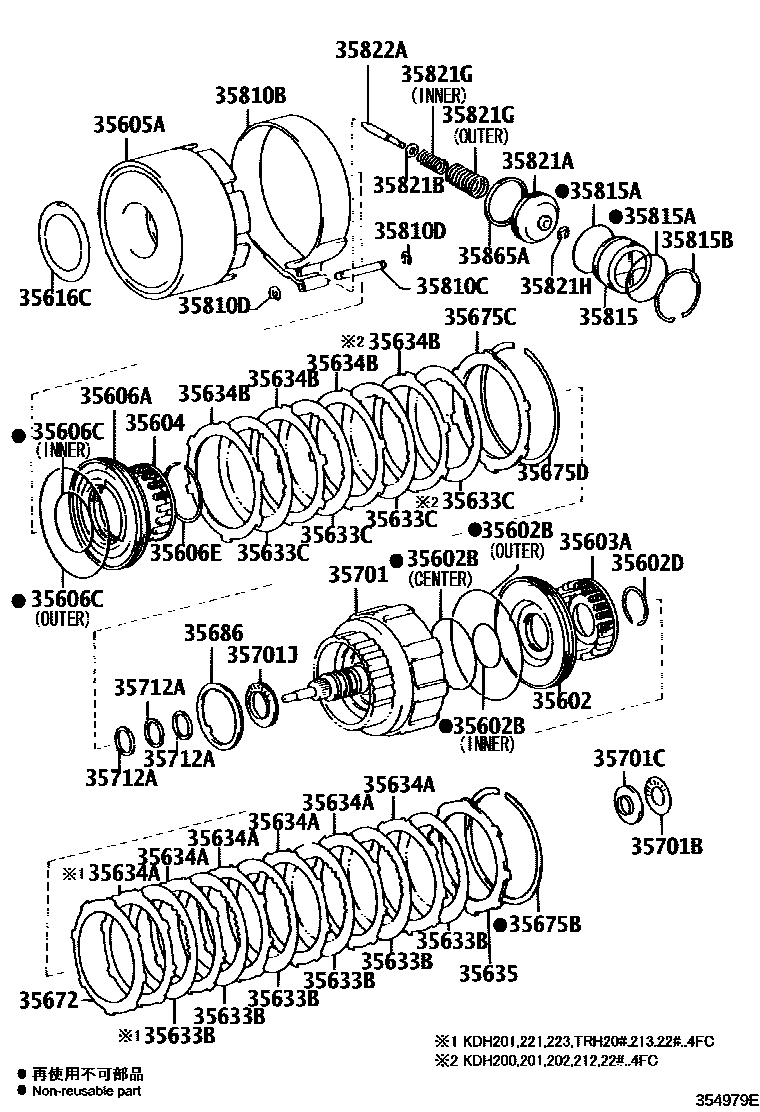

Parts diagram
35602PISTON SUB-ASSY, FRONT CLUTCH
main35602-14012i200501-201312
main35602-22030i201308-201312
main35602-30062i200501-201312
35602BRING, O (FOR FORWARD CLUTCH PISTON)
main90301-39005i200501-201312
INNER
main90301-72003i200501-201312
CENTER
main90301-99058i200501-201312
OUTER
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
main90520-35001i200501-201312
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
main35603-22010i201308-201312
REAR
main35603-22040i201308-201312
FRONT
main35603-30011i200501-201312
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
main35604-35010i200501-201312
35605DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR
main35605-22011i201308
35605ADRUM SUB-ASSY, DIRECT CLUTCH
main35605-22040i200501-201312
main35605-30060i200501-201312
35606PISTON SUB-ASSY, REAR CLUTCH
main35606-22010i201308
35606APISTON SUB-ASSY, DIRECT CLUTCH
main35606-35010i200501-201312
35606CRING, O (FOR DIRECT CLUTCH PISTON)
main90301-65006i200501-201312
INNER
main90301-99058i200501-201312
OUTER
main90301-99058i201308-201312
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
main90520-58001i200501-201312
35616CWASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)
main35616-30050i200501-201312
35633DISC, CLUTCH (FOR FRONT CLUTCH)
main35677-22080i201308
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
main35677-26010i200501-201312
main35677-30170i200501-201312
35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
main35667-40020i200501-201312
35634PLATE, FRONT CLUTCH
main35634-22040i201308
T=1.8
main35634-30070i201308
T=2.0
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
main35634-30110i200501-201312
T=2.3
main35634-32010i200501-201312
T=1.8
35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
main35647-22030i200501-201312
T=2.3
35635FLANGE, FORWARD CLUTCH
main35635-30040i200501-201312
T=4.0,MARK 95
main35635-30050i200501-201312
T=3.8,MARK 94
main35635-30060i200501-201312
T=3.6,MARK 93
main35635-30070i200501-201312
T=3.4,MARK 92
main35635-30080i200501-201312
T=3.2,MARK 91
main35635-30090i200501-201312
T=3.0,MARK 90
main35635-30100i200501-201312
T=4.2,MARK 96
main35635-30110i200501-201312
T=4.4,MARK 97
35672PLATE, CLUTCH CUSHION
main35672-30010i200501-201312
35675FLANGE, REAR CLUTCH
main35675-22120i201308
T=3.55
main35675-22130i201308
T=3.75
main35675-22140i201308
T=4.0
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
main90521-99001i200501-201312
35675CFLANGE, DIRECT CLUTCH
main35675-30210i200501-201312
T=3.5,MARK 55
main35675-30220i200501-201312
T=3.6,MARK 56
main35675-30230i200501-201312
T=3.7,MARK 57
main35675-30240i200501-201312
T=3.3,MARK 53
main35675-30250i200501-201312
T=3.4,MARK 54
main35675-30260i200501-201312
T=3.8,MARK 58
main35675-30270i200501-201312
T=4.0,MARK 60
main35675-30280i200501-201312
T=4.2,MARK 62
35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
main90520-99018i200501-201312
35686WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT)
main35686-30010i200501-201312
35701SHAFT SUB-ASSY, INPUT
main35701-22050i200501-201312
main35701-30043i201308-201312
main35701-60030i200501-201312
35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)
main90374-23012i201308-201312
main90374-25005i200501-201312
35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)
main35789-22010i201308-201312
main35789-30110i200501-201312
35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)
main90374-33001i200501-201312
35712ARING, INPUT SHAFT OIL SEAL
main35712-30020i200501-201312
35810BBAND ASSY, 2ND COAST BRAKE
main35810-50020i200501-201312
35810CPIN (FOR 2ND COAST BRAKE BAND)
main90249-07011i200501-201312
35810DRING, E (FOR 2ND COAST BRAKE BAND PIN)
main96160-00500i200501-201312
35815COVER, 2ND COAST BRAKE
main35815-22010i200501-201312
35815ARING, O (FOR 2ND COAST BRAKE COVER)
main90301-48001i200501-201312
35815BRING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)
main90521-60003i200501-201312
35821APISTON, 2ND COAST BRAKE
main35821-22020i200501-201312
35821BWASHER, PLATE (FOR 2ND COAST BRAKE PISTON)
main90201-06557i200501-201312
35821GSPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)
main90501-26024i200501-201312
OUTER
main90501-32037i200501-201312
INNER
35821HRING, E (FOR 2ND COAST BRAKE PISTON)
main96160-00500i200501-201312
35822AROD, 2ND COAST BRAKE PISTON
main35822-22010i200501-201312
L=78.4
main35822-22020i200501-201312
L=79.9
35865ARING, 2ND COAST BRAKE PISTON OIL SEAL
main35865-30010i200501-201312
