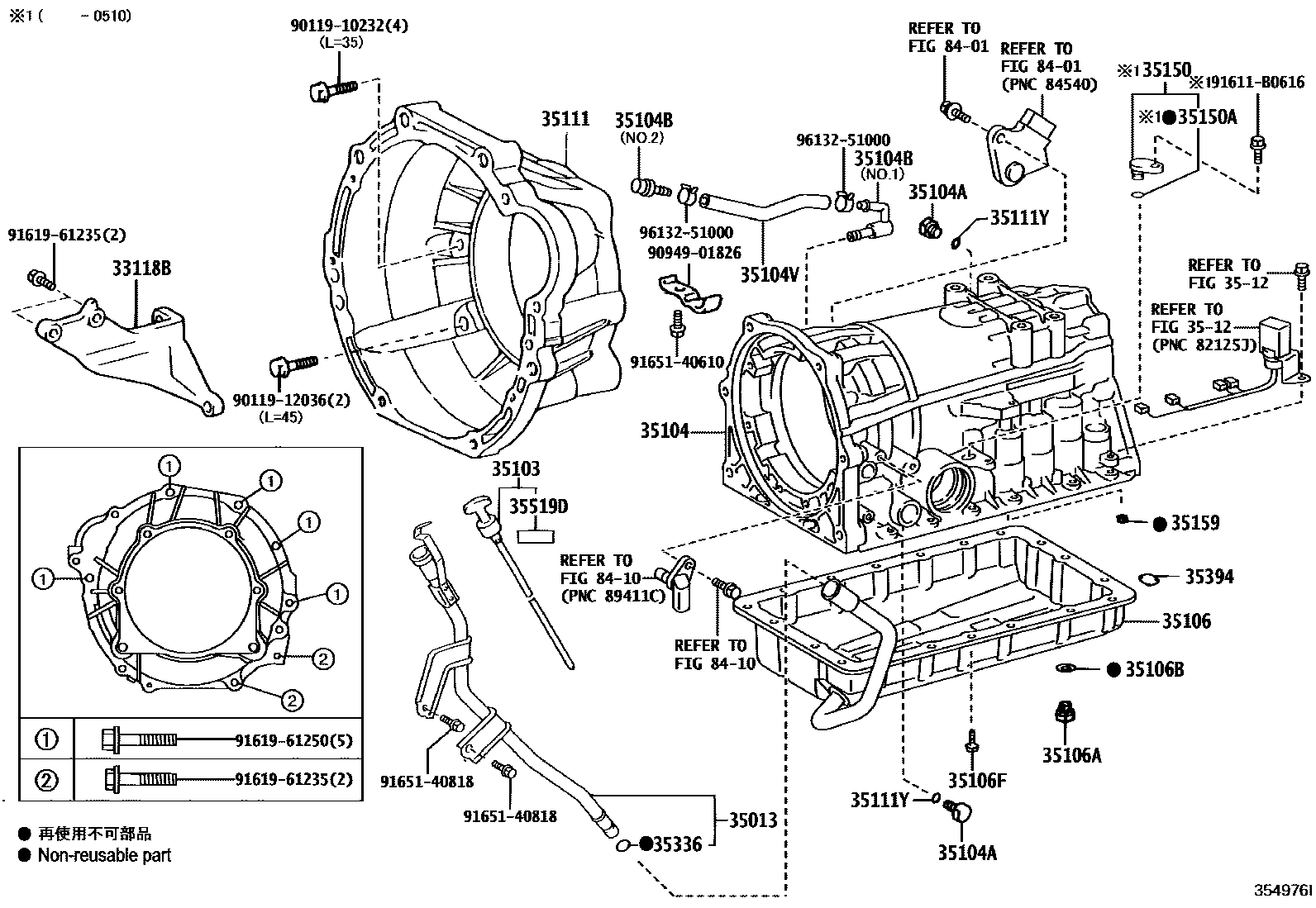

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A340E 0002 1A343E 0003 1A45DE

33118BPLATE, STIFFENER, RH(ATM)

main33118-35070iKDH200,201,202,212,22#..4FC200501-201312

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-26360iTRH200201308-201312

main35013-26370iTRH201,203,213,22#..4FC200501-201312

main35013-26380iKDH200,201,202,212,22#..4FC200501-201008

main35013-26390iKDH201,212,221,223..4FC201008-201312

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-26320iTRH200201308-201312

main35103-26330iTRH201,203,213,22#..(03S,06S,11S,14S,15S,16S)..4FC200501-201312

main35103-26350iKDH200,201,202,212,22#..4FC200501-201008

main35103-26370iTRH223..4FC..GEN200501-201312

main35103-26380iKDH201,212,221,223..4FC201008-201312

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22060iTRH200201308-201312

main35104-26060iKDH20#,22#..4FC200501-200510

main35104-26061iKDH201..SP..06S..4FC200510-201110

main35104-26070iTRH201,213,22#..4FC200501-200609

main35104-26071iTRH201,203,213,22#..4FC200609-201312

main35104-35022iKDH201..SP..06S..4FC201110-201312

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iKDH200,201,202,212,22#,TRH20#,213,22#..4FC200501-201312

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

NO.1

main90930-03168iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

NO.2

35104VHOSE (FOR BREATHER PLUG)

main90445-10020iKDH200,201,202,212,22#..4FC200501-201312

main90445-11118iTRH201,203,213,22#..4FC200501-201312

main90445-11145iTRH200201308-201312

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-25050iTRH200201308-201312

main35106-26090iKDH221..4FC..ARL;KDH201,212,223..4FC200501-201008

main35106-26100iKDH201,212,221,223..4FC201008-201312

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iKDH200,201,202,212,22#,TRH20#,213,22#..4FC200501-201312

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iTRH213,223..4FC..(GCC,TH);KDH200,201,202,212,22#,TRH200,203..4FC200501-201312

main35178-50010iTRH201,213,22#..4FC200501-200503

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173×14iTRH200201308-201312

main90119-06513×19iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-26040iKDH200,201,202,212,22#..4FC200501-201312

main35111-26070iTRH200201308-201312

main35111-71010iTRH201,203,213,22#..4FC200501-201312

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iKDH200,201,202,212,22#,TRH20#,213,22#..4FC200501-201312

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35150PLUG ASSY, TRANSMISSION CASE

main35150-30010iKDH20#,22#..4FC200501-200510

35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)

main90301-09012iKDH20#,22#..4FC200501-200510

35159GASKET, BRAKE DRUM

main35159-30010iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iKDH200,201,202,212,22#,TRH20#,213,22#..4FC200501-201312

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iKDH200,201,202,212,22#,TRH20#,213,22#..(03S,06S,11S,12S,14S,15S,16S)..4FC200501-201312

main35519-28041iTRH223..4FC..GEN200612-201312

main35519-52020iTRH223..4FC..GEN200501-200611

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011910232

main90119-10232

9011912036

main90119-12036

9094901826

main90949-01826

91611B0616

main91611-B0616

9161961235

main91619-61235

9161961250

main91619-61250

9165140610

main91651-40610

9165140818

main91651-40818

9613251000

main96132-51000

31 parts on this diagram · 3 diagrams in section
