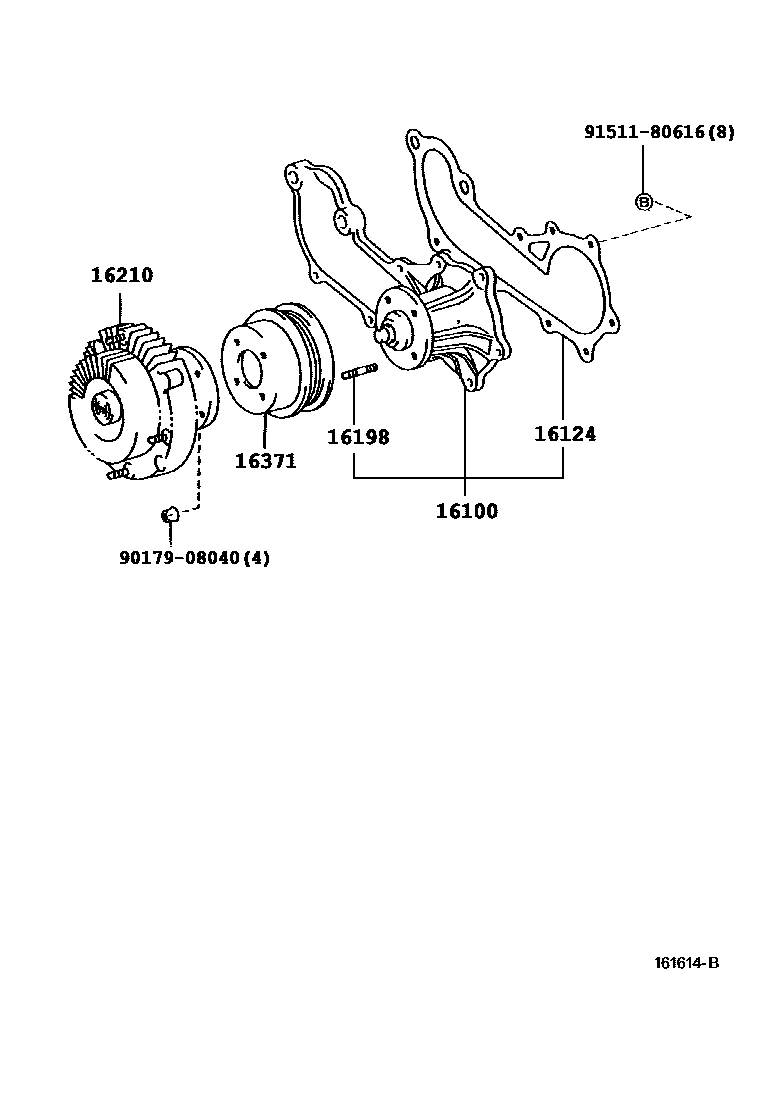

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-69395i5VZFE..VZN150,195200009-200205

main16100-69396i5VZFE..VZN150,195200205-200209

main16100-69397i5VZFE..VZN150,195200209-200304

main16100-69398i5VZFE..VZN150,195200304

main16100-69405i5VZFE..VZN150..4HC199501-200009

main16100-79255i2RZFE,3RZFE..RZN140,150,19#199501-200009

main16100-79445i2RZFE,3RZFE..RZN140,150,19#200308-200409

16124GASKET, WATER PUMP COVER

main16124-75030i2RZFE,3RZFE..RZN140,150,19#199501-200009

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main92122-60818×4i2RZFE,3RZFE..RZN140,150,19#199501-200009

main92122-80818×4i3RZFE..RZN19#200308-200409

16210COUPLING ASSY, FLUID

main16210-0W010i2RZFE..RZN140,150199501-199706

main16210-62010i5VZFE..VZN150199501-199511

main16210-62011i5VZFE..VZN195200109

TOWING PACKAGE

main16210-62030i5VZFE..VZN150,195200009-200409

main16210-75060i2RZFE,3RZFE..RZN140,150,19#199706-200009

main16210-75080i2RZFE,3RZFE..RZN140,150,19#200109-200409

16371PULLEY, FAN

main16371-62010i5VZFE..VZN150,195199501-200009

main16371-75030i2RZFE,3RZFE..RZN140,150,19#199501-200009

9017908040

main90179-08040

9151180616

main91511-80616

7 parts on this diagram · 2 diagrams in section
