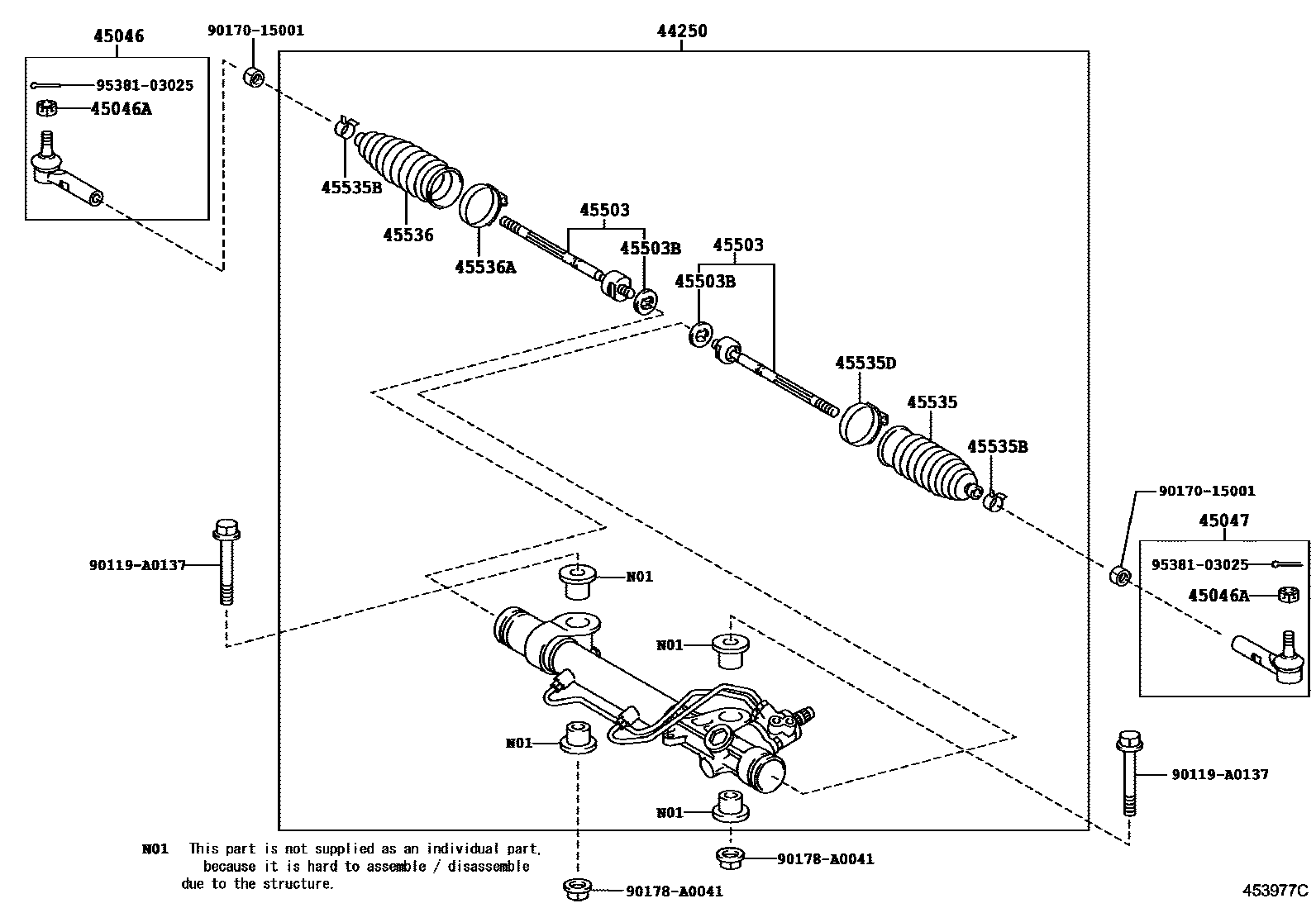

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-04020iGRN225,TRN22#200805-201109

main44250-04021iTRN220201301-201408

main44250-04030iGRN245,250,270,TRN24#;GRN265,TRN265..4FC,5FC200805-201109

main44250-04040iGRN245,250,265,270,TRN245,265201109-201508

main44250-04041iGRN305,310,325,330,TRN245,265201508-201711

45046END SUB-ASSY, TIE ROD, RH

main45046-09330iGRN225,TRN22#200409-200805

main45046-09340iGRN305,310,325,330,TRN245,265201711-201909

45046ANUT, CASTLE(FOR TIE ROD END)

main90080-17220×2iGRN225,TRN22#200409-200805

main90171-14042×2iGRN265,TRN26#..5F,6F200805-201006

45047END SUB-ASSY, TIE ROD, LH

main45046-09330iGRN225,TRN225201109-201508

main45046-09340iGRN265,TRN26#..5F,6F200805-201006

45503END SUB-ASSY, STEERING RACK

main45503-09480×2iGRN225,TRN22#200409-200805

main45503-09490×2iGRN245,250,270,TRN24#;GRN265,TRN265..4FC,5FC200805-201109

main45503-09550×2iGRN305,310,325,330,TRN245,265201909

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-A0001×2iTRN220201109-201408

OD=40

main90214-A0002×2iGRN305,310,325,330,TRN245,265201711-201909

OD=43

45535BOOT, STEERING RACK, NO.1

main45535-04040iGRN245,250,265,270,TRN245,265201109-201508

main45535-04060iGRN305,310,325,330,TRN245,265201909

main45535-07010iTRN220201109-201408

45535BCLIP(FOR STEERING RACK BOOT)

main90080-46174×2iGRN305,310,325,330,TRN245,265201909

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90080-46152iGRN225,TRN22#200805-201109

main90080-46271iGRN245,250,265,270,TRN245,265201109-201508

45536BOOT, STEERING RACK, NO.2

main45535-04030iGRN225,TRN225201109-201508

main45535-04050iTRN240201109-201408

main45535-04070iGRN305,310,325,330,TRN245,265201909

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90080-46293iTRN220201109-201408

main90080-46323iGRN245,250,270,TRN24#;GRN265,TRN265..4FC,5FC200805-201109

90119A0137

main90119-A0137

9017015001

main90170-15001

90178A0041

main90178-A0041

9538103025

main95381-03025

15 parts on this diagram · 5 diagrams in section
