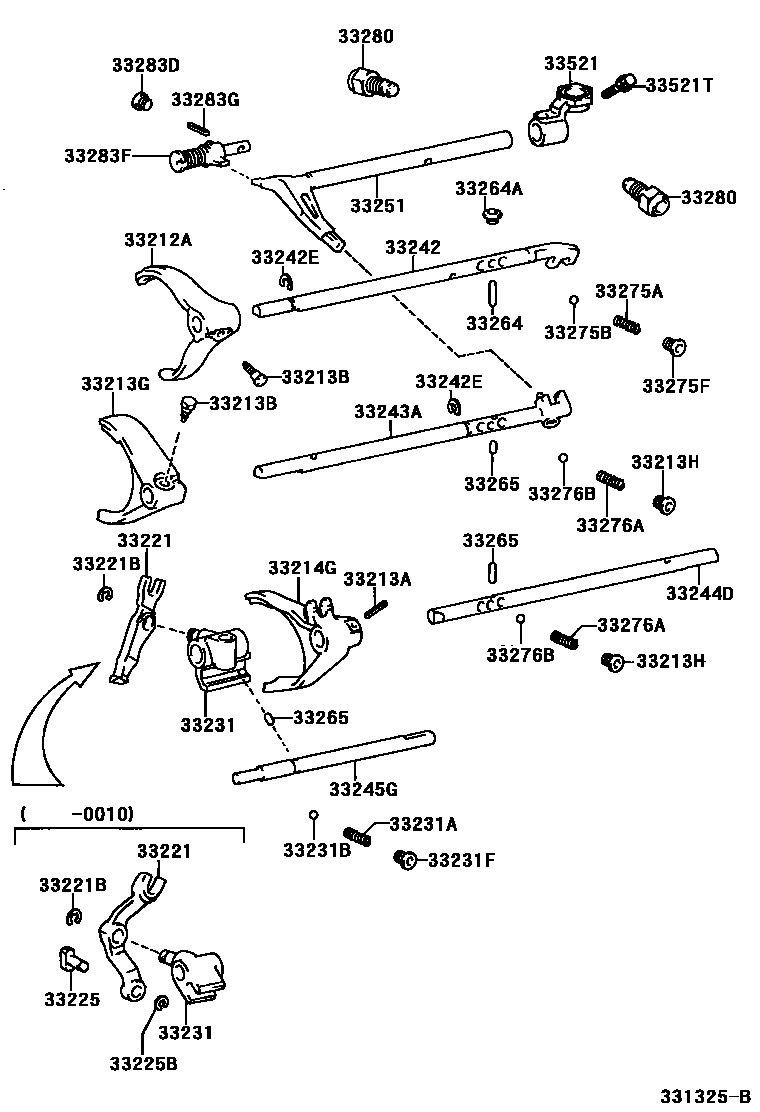

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33212AFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33213HPLUG, W/HEAD STRAIGHT SCREW, NO.2
33214GFORK, GEAR SHIFT, NO.3
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33225SHOE, SHIFT ARM
33225BRING, E(FOR SHIFT ARM SHOE)
33231HEAD, REVERSE SHIFT
33231ASPRING, REVERSE SHIFT RESTRICT
33231BBALL, REVERSE SHIFT RESTRICT
33231FPLUG(FOR REVERSE SHIFT HEAD)
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244DSHAFT, GEAR SHIFT FORK, NO.3
33245GSHAFT, GEAR SHIFT FORK, NO.4
33251LEVER, SHIFT & SELECT
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=11.5,OD=4.8
33264APLUG, INTERLOCK HOLE
L=7.5,OD=15
33265PIN, SHIFT INTERLOCK, NO.2
L=11.2,OD=4
L=13.6,OD=6
L=8.6,OD=6
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18,TYPE B
OD=17
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=20.2
L=19.9
L=33.8
33275BBALL, SHAFT DETENT
33275FPLUG (FOR SHIFT DETENT BALL)
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
33276BBALL, SHIFT DETENT, NO.2
33280PIN ASSY, REVERSE RESTRICT
LH
RH
LH
LH
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283FPIN, REVERSE RESTRICT
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33521HOUSING, SHIFT LEVER
33521TBOLT (FOR SHIFT LEVER HOUSING)
35 parts on this diagram · 2 diagrams in section
