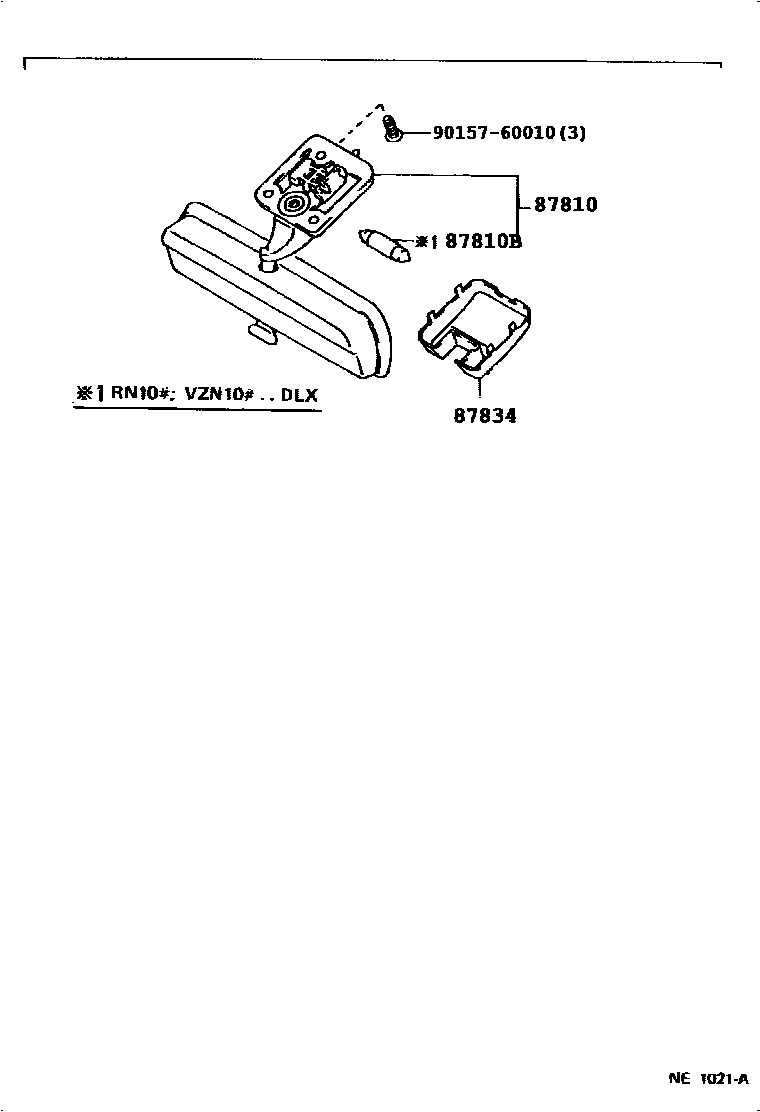

MIRROR

0001 1INNER 0002 1OUTER

87810MIRROR ASSY, INNER REAR VIEW

main87810-04020-B0iRN101,VZN100199202-199501

SLATE GRAY,TRIM1#

main87810-04020-J0iRN101,VZN100199202-199501

LIGHT BLUE,TRIM8#

main87810-89141-J0iRN110,VZN110199303-199501

BLUE,TRIM8#

main87810-89141-S7iRN110,VZN110199303-199501

MEDIUM GRAY,TRIM1#

87810BBULB, INNER REAR VIEW MIRROR LAMP

main99132-13050iRN101,VZN100199202-199501

12V 5W

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-04010iRN101,VZN100199202-199501

main87834-89105-J0iRN110,VZN110199303-199501

BLUE,TRIM8#

main87834-89105-S7iRN110,VZN110199308-199501

MEDIUM GRAY,TRIM1#

9015760010

main90157-60010

4 parts on this diagram · 2 diagrams in section
