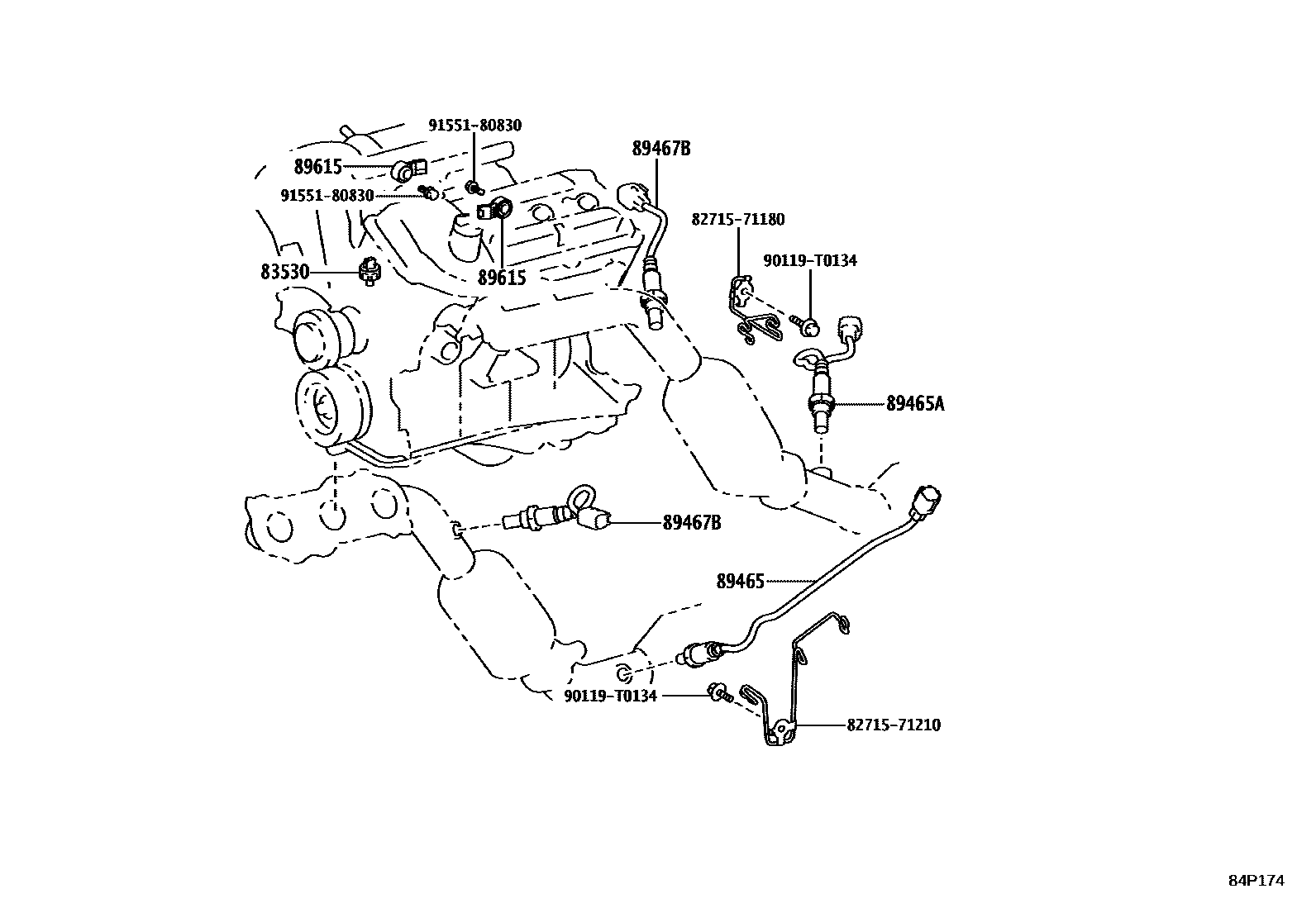

SWITCH & RELAY & COMPUTER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
main83530-28010supersedes 83530-60010iGUN122..L..GCC; GUN122..S..IV3; GUN125..H..GCC;GUN122..S..GCC..CBU; GUN125..H..GCC;GUN125..6F..L..GCC;GUN126..THP..H..LA;GUN125..RHD..L..GEN;GUN122..S..GCC..CBU;GUN126..RHD..6F..H..GEN;GUN125..LHD..THP..S..(GEN,LA); GUN126..S..GEN;GUN122,135..GEN;GUN126..6FC..H..GEN;GUN125..RHD..(H,S)..GEN;GUN126..LHD..6F..H..GEN;GUN126..THP..6FC..S..LA;GUN125,136..LHD..THP..(H,L)..(GEN,LA); GUN135..THP..LA202208-202307
CENTRAL AND SOUTH AMERICA SPEC,DENSO; DENSO; EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),DENSO; EXHAUST EMISSION CONTROL-WITHOUT,DENSO; IRAQ SPEC,DENSO; SYRIA SPEC,DENSO
DENSO
main83530-60010iGUN122..L..GCC; GUN122..S..IV3; GUN125..H..GCC;GUN122..S..GCC..CBU; GUN125..H..GCC;GUN125..6F..L..GCC;GUN126..THP..H..LA;GUN125..RHD..L..GEN;GUN122..S..GCC..CBU;GUN126..RHD..6F..H..GEN;GUN125..LHD..THP..S..(GEN,LA); GUN126..S..GEN;GUN122,135..GEN;GUN126..6FC..H..GEN;GUN125..RHD..(H,S)..GEN;GUN126..LHD..6F..H..GEN;GUN126..THP..6FC..S..LA;GUN125,136..LHD..THP..(H,L)..(GEN,LA); GUN135..THP..LA202208-202307
CENTRAL AND SOUTH AMERICA SPEC,YAZAKI; EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),YAZAKI; EXHAUST EMISSION CONTROL-WITHOUT,YAZAKI; IRAQ SPEC,YAZAKI; SYRIA SPEC,YAZAKI; YAZAKI
YAZAKI
89465SENSOR, OXYGEN
89465ASENSOR, OXYGEN NO.2
89467BSENSOR, AIR FUEL RATIO
main89467-71120iGUN122..IV3;GUN125..6F..S..GCC;GUN125..6FC..(L,S)..GCC;GUN122,126..(H,L)..GCC..CBU; GUN125..6FC..S..GEN;GUN126..RHD..6FC..H..GEN;GUN125..RHD..6F..(H,L)..GEN; GUN125..THP..LA;GUN126..THP..H..LA;GUN126..THP..6F..S..LA; GUN126,13#..ARL,VN;GUN125..RHD..6FC..L;GUN125..6F..(ARL,VN); GUN126..L..LA;GUN125..H..GCC;GUN125..6F..L..GCC;GUN125..6FC..S..GEN;GUN122..S..GCC..CBU;GUN126..THP..6FC..H..LA;GUN126..RHD..6FC..H..GEN202208-202307
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
89615SENSOR, KNOCK CONTROL
8271571180BRACKET,WIRING HARNESS CLAMP
main82715-71180
8271571210BRACKET,WIRING HARNESS CLAMP
main82715-71210
90119T0134
main90119-T0134
9155180830
main91551-80830
9 parts on this diagram · 20 diagrams in section
