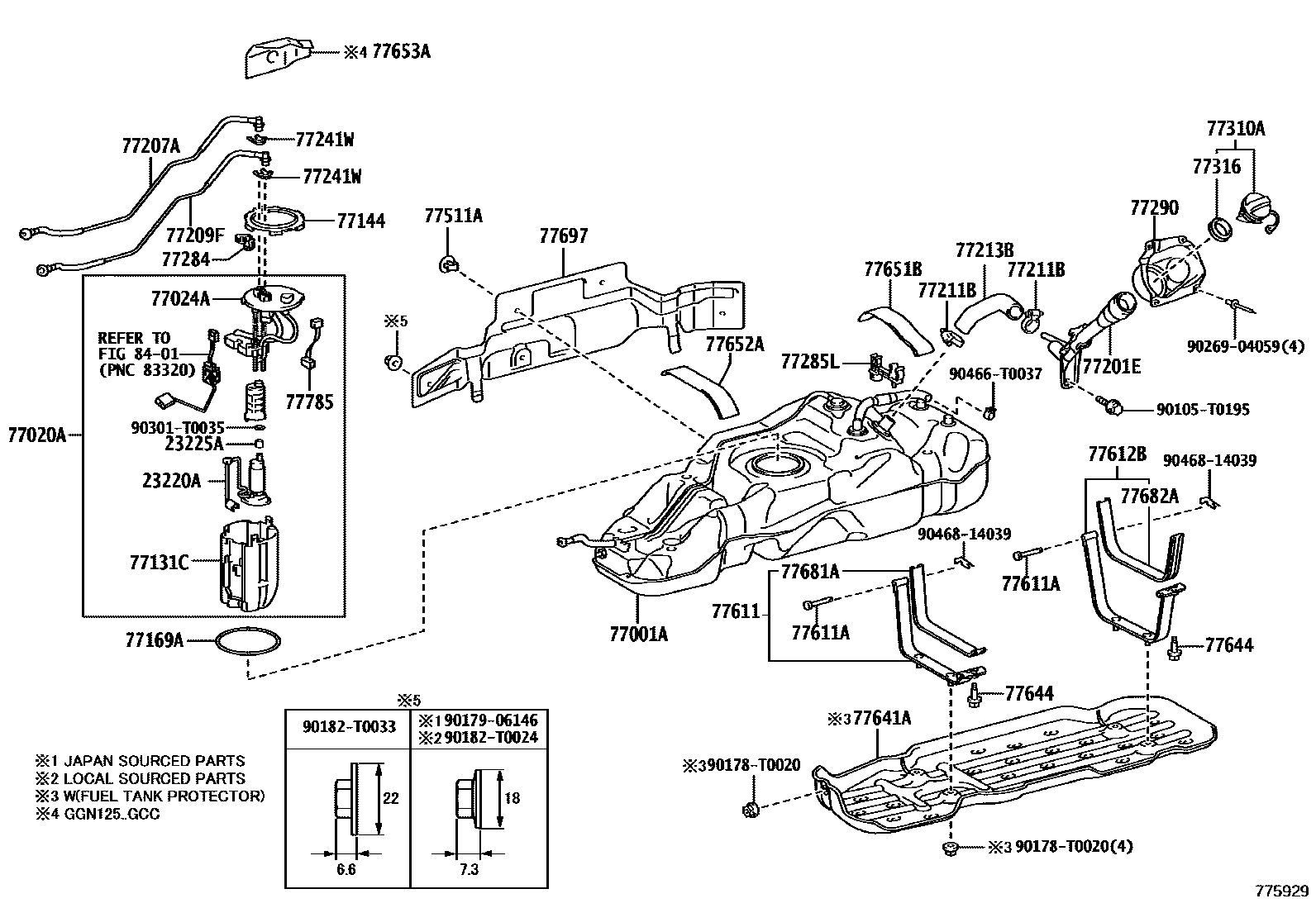

FUEL TANK & TUBE
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
77001ATANK SUB-ASSY, FUEL
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77201EPIPE SUB-ASSY, FUEL TANK FILLER
ASIA COLD COUNTRY SPEC
main77201-KK060iTGN126..L..GEN;TGN126..(SAP,THP)..(GCC,LA,SA);GGN125,TGN120,121,136..SAP,THP202208-202401
main77201-KK070iGUN122,125,126,13#,LAN125..(GHAP,INDP,KENP,PKNP,SAP,THP)..(ARL,GCC,GEN,GHA,IND,KEN,LA,PKN,SA)..CBU202208-202502
ASIA COLD COUNTRY SPEC; ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT
77207ATUBE SUB-ASSY, FUEL RETURN
main77204-0K240iGUN125..RHD..L..GEN;GUN126..RHD..6F..H..GEN; GUN125..THP..LA;GUN126..THP..H..LA;GUN126..THP..6F..S..LA; GUN126..TWN202208-202307
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77211BCLAMP (FOR FUEL FILLER PIPE)
77213BHOSE, FUEL TANK TO FILLER PIPE
main77213-KK010iGGN125,GUN12#,13#,TGN12#,136..THP; GUN125..LHD..(H,L)..GEN;GUN125,TGN126..(5F,6FC)..L..GEN; GUN125..LHD..S..GEN202208-202307
ASIA COLD COUNTRY SPEC; ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT
77241WCLIP, TUBE JOINT
77284CLAMP, FUEL TUBE
77285LCLAMP, FUEL TUBE, NO.1
77290SHIELD ASSY, FUEL TANK FILLER PIPE
main77290-0K070iGUN125,135,LAN125..MTM..S..SA; GUN125..H..SA;GUN125,135..6FC..SA;GGN125,GUN126,136,TGN126,136..(H,S)..SA202301-202401
TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 STEEL
main77290-0K080iTGN126,136..L..SA;GUN122,125,135,LAN125,TGN121..MTM..(L,S)..SA; TGN136..S..SA202301-202401
TIRE & DISC WHEEL-225/70R17C STEEL
main77290-0K090iGUN125,135..AGTP..L..LA; GUN125,135..BZAG;GGN125,GUN126,136..AGTP;GUN125,135,TGN126,136..AGTP..(H,S)..LA202211-202310
TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-225/70R17C STEEL
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77511ABRACKET, FUEL TANK
77611BAND, FUEL TANK
(J); ASIA COLD COUNTRY SPEC,(J)
(L); ASIA COLD COUNTRY SPEC,(L)
77611APIN (FOR FUEL TANK BAND)
77612BBAND, FUEL TANK, NO.2
(J); ASIA COLD COUNTRY SPEC,(J)
(L); ASIA COLD COUNTRY SPEC,(L)
77641APROTECTOR, FUEL TANK, NO.1
77644BOLT, FUEL TANK
77651BCUSHION, FUEL TANK
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77681ASEAT, FUEL TANK BAND
(J); ASIA COLD COUNTRY SPEC,(J)
main77681-KK020iTGN126..L..GEN;TGN126..THP..(GCC,LA);GGN125,GUN12#,13#,TGN120,121,136..THP202208-202307
(L); ASIA COLD COUNTRY SPEC,(L)
77682ASEAT, FUEL TANK BAND, NO.2
(J); ASIA COLD COUNTRY SPEC,(J)
main77682-KK010iTGN126..L..GEN;TGN126..THP..(GCC,LA);GGN125,GUN12#,13#,TGN120,121,136..THP202208-202307
(L); ASIA COLD COUNTRY SPEC,(L)
77697INSULATOR, FUEL TANK HEAT, NO.1
main77697-0K140iGUN125..RHD..L..GEN;GUN126..RHD..6F..H..GEN; GUN125..THP..LA;GUN126..THP..H..LA;GUN126..THP..6F..S..LA; GUN126..TWN202208-202307
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
77785HARNESS, FUEL PUMP
8401SWITCH & RELAY & COMPUTER
90105T0195
main90105-T0195
90178T0020
main90178-T0020
9017906146
main90179-06146
90182T0024
main90182-T0024
90182T0033
main90182-T0033
9026904059
main90269-04059
90301T0035
main90301-T0035
90466T0037
main90466-T0037
9046814039
main90468-14039
42 parts on this diagram · 8 diagrams in section
