Toyota 6723A0 — BRAKE BOOSTER & VACUUM TUBE

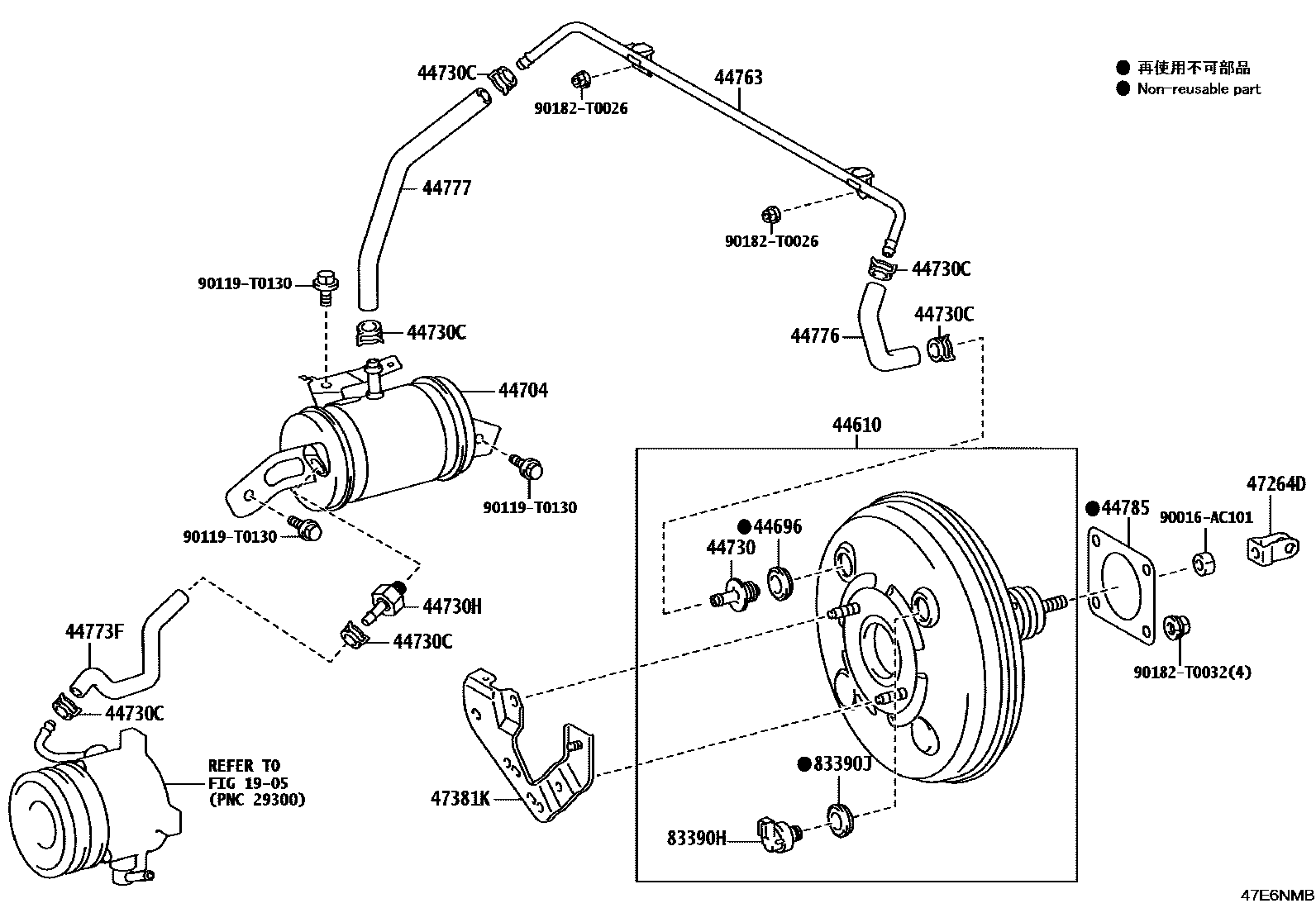

Parts diagram
1905VACUUM PUMP
→ Go to FIG 19-05
44610BOOSTER ASSY, BRAKE
44610-71010
44610-71030
44610-0K560
44610-0K580
44610-0K600
44610-0K650
44610-0K880
44610-0K890
44696GROMMET, CHECK VALVE
90016-AT003
90480-24439
44704RESERVOIR SUB-ASSY, VACUUM
44704-71020
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
90466-T0019
44730-60050
44730-60070
44730CCLIP(FOR VACUUM HOSE)
44730HVALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR)
44763TUBE, BOOSTER VACUUM
44763-KK020
44763-KK030
44763-KK040
44763-KK050
44763-KK080
44763-KK160
44763-KK161
44763-KK170
44773FHOSE, UNION TO CHECK VALVE
44776HOSE, BRAKE BOOSTER
44772-KK070
44777CONNECTOR, VACUUM HOSE, NO.1
44777-KK010
44785GASKET, BRAKE BOOSTER
44785-17010
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47381KBRACKET, BRAKE BOOSTER TUBE CLAMP
83390HSWITCH ASSY, VACUUM WARNING
83390JGROMMET, VACUUM WARNING SWITCH
90016AC101
90016-AC101
90119T0130
90119-T0130
90182T0026
90182-T0026
90182T0032
90182-T0032

20 parts on this diagram · 5 diagrams in section

BRAKE BOOSTER & VACUUM TUBE for Toyota 6723A0

This section contains 40 genuine Toyota parts for the BRAKE BOOSTER & VACUUM TUBE system of the Toyota 6723A0. Key components include: MANIFOLD, VACUUM PIPING, VACUUM PUMP, BOOSTER ASSY, BRAKE, GROMMET, CHECK VALVE.
