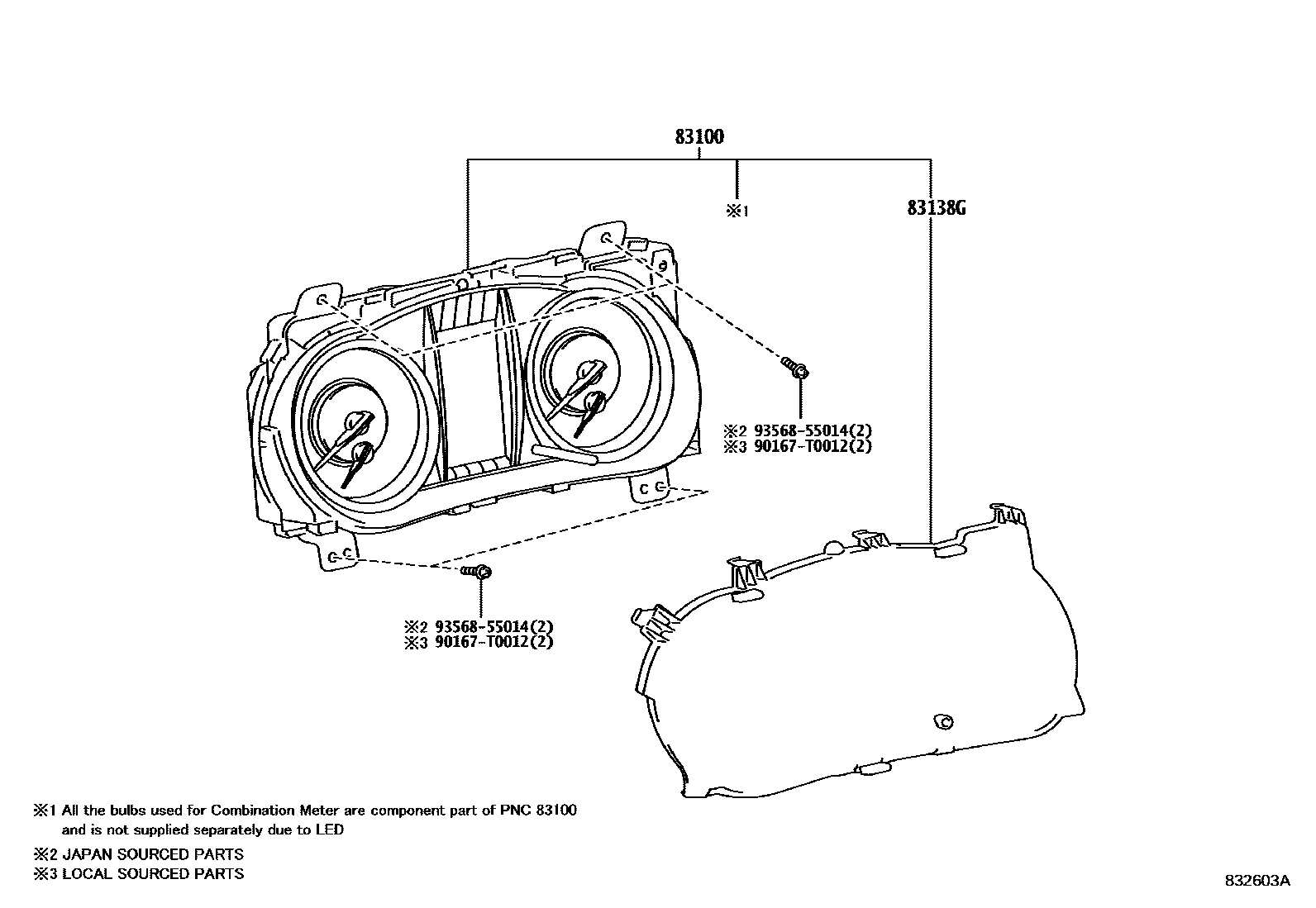

METER

83100METER ASSY, COMBINATION

main83A00-F0V70i202308-202407

YAZAKI

main83A00-F0W10i202308-202407

YAZAKI

main83A00-F0W31i202308-202407

YAZAKI

main83A00-F0W41i202308-202407

YAZAKI

main83A00-F0W51i202308-202407

YAZAKI

main83A00-F0W61i202308-202407

YAZAKI

main83A00-F0W90i202308-202407

YAZAKI

main83A00-F0X20i202308-202407

YAZAKI

main83A00-F0X40i202308-202407

YAZAKI

main83A00-F0Y40i202308-202407

YAZAKI

main83A00-FA090i202308-202407

YAZAKI

main83A00-FA120i202308-202407

YAZAKI

main83A00-FA491i202308-202407

YAZAKI

main83A00-FA511i202308-202407

YAZAKI

main83A00-FAJ70supersedes 83A00-FBG50i202402-202410

YAZAKI; YAZAKI,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*273(*CR)& W(*SITL)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)&SPEED METER-KM/H & WITH(*MID); YAZAKI,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR)& W(*SITL)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)&SPEED METER-KM/H & WITH(*MID); YAZAKI,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)&SPEED METER-KM/H & WITH(*MID)

main83A00-FAJ80i202402-202410

YAZAKI; YAZAKI,EXPORT FROM SA&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)&SPEED METER-KM/H & WITH(*MID); YAZAKI,EXPORT FROM SA&EXHAUST EMISSION CONTROL-WITHOUT&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)&SPEED METER-KM/H & WITH(*MID); YAZAKI,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*273(*CR)& W(*SITL)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)&SPEED METER-KM/H & WITH(*MID); YAZAKI,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)&SPEED METER-KM/H & WITH(*MID); YAZAKI,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR)& W(*SITL)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)&SPEED METER-KM/H & WITH(*MID); YAZAKI,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)&SPEED METER-KM/H & WITH(*MID); YAZAKI,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)&SPEED METER-KM/H & WITH(*MID); YAZAKI,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)&SPEED METER-KM/H & WITH(*MID); YAZAKI,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)&SPEED METER-KM/H & WITH(*MID); YAZAKI,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)&SPEED METER-KM/H & WITH(*MID)

main83A00-FBA30i202308-202407

YAZAKI

main83A00-FBD50i202308-202407

YAZAKI

main83A00-FBD60i202308-202407

YAZAKI

main83A00-FBD80i202308-202407

YAZAKI

main83A00-FBD90supersedes 83A00-FBF30i202308-202408

YAZAKI

main83A00-FBE00i202308-202407

YAZAKI

main83A00-FBE40i202308-202407

YAZAKI

main83A00-FBE60i202308-202407

YAZAKI

main83A00-FBE90i202308-202407

YAZAKI

main83A00-FBF10i202308-202407

YAZAKI

main83A00-FBF20i202308-202407

YAZAKI

main83A00-FBF40i202308

YAZAKI

main83A00-FBF50i202308-202407

YAZAKI

main83A00-FBF70i202402-202410

YAZAKI

main83A00-FBF80i202402-202410

YAZAKI

main83A00-FBF90i202402-202410

YAZAKI; YAZAKI,FRONT BUMPER-MATERIAL COLOR&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&SPEED METER-KM/H

main83A00-FBG00supersedes 83A00-FAK60i202402-202410

YAZAKI; YAZAKI,FRONT BUMPER-MATERIAL COLOR&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&SPEED METER-KM/H

main83A00-FBG10i202402-202410

YAZAKI

main83A00-FBG20i202402-202410

YAZAKI

main83A00-FBG30i202404-202412

YAZAKI

main83A00-FBG40i202402-202410

YAZAKI; YAZAKI,VSC-WITHOUT

main83A00-FBG60i202311-202410

YAZAKI; YAZAKI,CENTRAL AND SOUTH AMERICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT&STEERING SWITCH-WITHOUT; YAZAKI,COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-EURO4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT&STEERING SWITCH-WITHOUT; YAZAKI,PERU SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT&STEERING SWITCH-WITHOUT; YAZAKI,URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-EURO 4WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT&STEERING SWITCH-WITHOUT; YAZAKI,URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT&STEERING SWITCH-WITHOUT

main83A00-FBG70i202311-202410

YAZAKI

main83A00-FBG90i202311-202410

YAZAKI

main83A00-FBJ10i202311-202407

YAZAKI

main83800-FCW30supersedes 83800-FC840i202308-202407

YAZAKI,SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS); YAZAKI,SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT; YAZAKI,SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT

main83A00-F0B80supersedes 83A00-FBG80i202311-202410

YAZAKI; YAZAKI,CHILE SPEC&ACTIVE SAFETY PACKAGE-WITH&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)

main83A00-F0E00supersedes 83A00-F0B80i202311-202410

YAZAKI,ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); YAZAKI,CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)

main83A00-F0V40i202308-202407

YAZAKI,TOYOTA STOP & START SYSTEM-WITH

main83A00-F0V50i202308-202407

YAZAKI,TOYOTA STOP & START SYSTEM-WITH

main83A00-F0V60supersedes 83A00-FBF00i202308-202407

YAZAKI,STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); YAZAKI,VSC-WITH(*HSAC & *TSC)

main83A00-F0W00supersedes 83A00-FA050i202308-202407

YAZAKI,VSC-WITH(*HSAC & *TSC)

main83A00-F0X30i202308-202407

YAZAKI,EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT; YAZAKI,SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT

main83A00-F0X70supersedes 83A00-F0X60i202308-202407

YAZAKI,SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)

main83A00-F0Y10i202308-202407

YAZAKI,AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS); YAZAKI,IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS); YAZAKI,SUDAN SPEC; YAZAKI,SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)

main83A00-FA371i202308-202407

YAZAKI,TIRE & DISC WHEEL-265/60R18 ALUMINUM

main83A00-FA410supersedes 83A00-F0X00i202308-202407

YAZAKI,SAUDI ARABIA SPEC&TOYOTA STOP & START SYSTEM-WITH

main83A00-FA580supersedes 83A00-FBF00i202308-202407

YAZAKI,TOYOTA STOP & START SYSTEM-WITH&FRONT BUMPER-PAINTED(MLM)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); YAZAKI,TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC)

main83A00-FA590supersedes 83A00-FA050i202308-202407

YAZAKI,TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC)

main83A00-FAD90supersedes 83A00-FBG80i202311-202410

YAZAKI,ACTIVE SAFETY PACKAGE-WITH&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY& *LDA); YAZAKI,CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT; YAZAKI,COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); YAZAKI,PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); YAZAKI,URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); YAZAKI,URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main83A00-FAG30supersedes 83A00-F0B80i202311-202410

YAZAKI,CENTRAL AND SOUTH AMERICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); YAZAKI,COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-EURO4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); YAZAKI,PERU SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); YAZAKI,URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-EURO 4WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); YAZAKI,URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)

main83A00-FAG40supersedes 83A00-F0B80i202311-202410

YAZAKI,CENTRAL AND SOUTH AMERICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); YAZAKI,COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-EURO4 WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); YAZAKI,PERU SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); YAZAKI,STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); YAZAKI,URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-EURO 4WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); YAZAKI,URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)

main83A00-FAK30i202402-202410

YAZAKI,ACTIVE SAFETY PACKAGE-WITH

main83A00-FAK40i202402-202410

YAZAKI,ACTIVE SAFETY PACKAGE-WITH

main83A00-FAP10i202308-202407

YAZAKI,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); YAZAKI,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)

main83A00-FAP60i202308-202407

YAZAKI,MLM ADVENTURE PACKAGE&TOYOTA STOP & START SYSTEM-WITH&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); YAZAKI,MLM ADVENTURE PACKAGE&TOYOTA STOP & START SYSTEM-WITH&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)

main83A00-FAT40i202402-202410

YAZAKI,MLM ADVENTURE PACKAGE&ACTIVE SAFETY PACKAGE-WITH&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)

main83A00-FAT50i202402-202410

YAZAKI,MLM ADVENTURE PACKAGE&ACTIVE SAFETY PACKAGE-WITH&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)

main83A00-FAT60i202402-202410

YAZAKI,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)

main83A00-FAT70i202402-202410

YAZAKI,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)

main83A00-FBD70supersedes 83A00-FBF60i202308-202407

YAZAKI,ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&STEERING SWITCH-WITHOUT; YAZAKI,VSC-WITHOUT

main83A00-FBE50i202308-202407

YAZAKI,IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS); YAZAKI,SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)

main83A00-FBE80supersedes 83A00-FBE70i202308-202407

YAZAKI,AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS); YAZAKI,SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)

main83A00-FBF30i202308-202407

YAZAKI; YAZAKI,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&SPEED METER-KM/H; YAZAKI,VSC-WITH(*HSAC & *TSC)

main83A00-FBF60supersedes 83A00-FA480i202308-202407

YAZAKI; YAZAKI,ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITHOUT

main83A00-FBG80supersedes 83A00-F0B80i202311-202410

YAZAKI; YAZAKI,CENTRAL AND SOUTH AMERICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-WITHOUT&STEERING SWITCH-WITHOUT; YAZAKI,COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-EURO4 WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITHOUT; YAZAKI,PERU SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITHOUT; YAZAKI,URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-EURO 4WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITHOUT; YAZAKI,URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITHOUT

83138GGLASS, COMBINATION METER

main83852-FBA70i202402-202412

main83852-FBB90i202311-202410

ACTIVE SAFETY PACKAGE-WITH&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA); CHILE SPEC&ACTIVE SAFETY PACKAGE-WITH&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA); CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)

main83852-FBJ30i202308-202407

STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); TOYOTA STOP & START SYSTEM-WITH&FRONT BUMPER-PAINTED(MLM)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)

main83852-FBL60i202308-202407

MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)

90167T0012

main90167-T0012

9356855014

main93568-55014

4 parts on this diagram · 1 diagram in section
