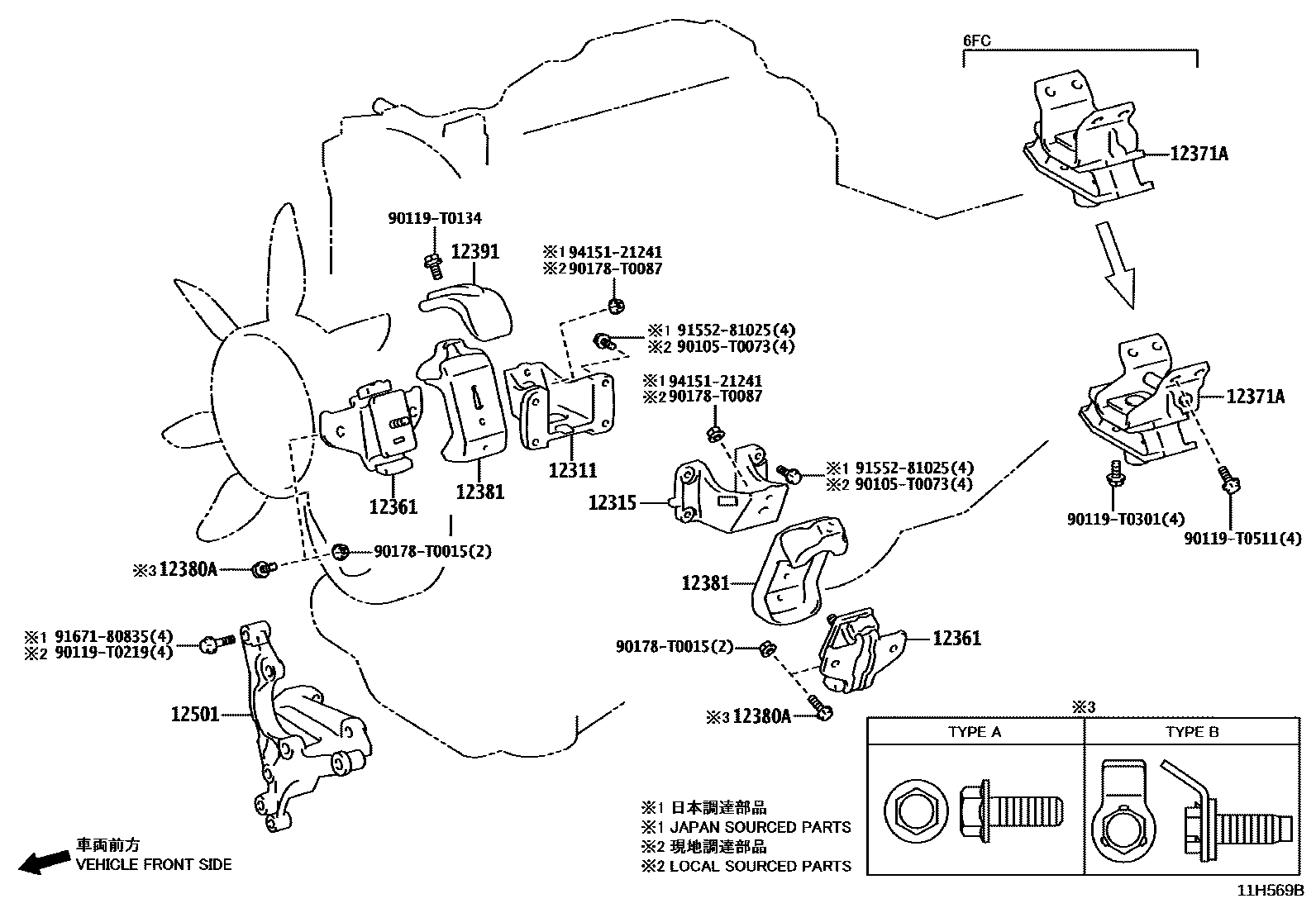

MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
main12311-0C010i1TRFE,2TRFE..TGN11#,12#..THP..(GCC,LA,TH); 1TRFE,2TRFE..TGN111,12#..GCC..CBU; 2TRFE..TGN121,126..GCC..CBU; 2TRFE..TGN121,126..S; 2TRFE..TGN121..GEN..CBU; 2TRFE..TGN121..TH; 2TRFE..TGN126..S;2TRFE..TGN121..L..GCC..CBU202308-202407
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),IDN SOURCED PARTS; EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDNSOURCED PARTS; IDN SOURCED PARTS; IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS; IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS; UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
main12311-11140i2GDFTV..GUN120,125,135..GCC,TH; 2GDFTV..GUN120,125,135..TH; 2GDFTV..GUN125..GCC202308-202407
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
main12315-0C010i1TRFE,2TRFE..TGN11#,12#..THP..(GCC,LA,TH); 1TRFE,2TRFE..TGN111,12#..GCC..CBU; 2TRFE..TGN121,126..GCC..CBU; 2TRFE..TGN121,126..S; 2TRFE..TGN121..GEN..CBU; 2TRFE..TGN121..TH; 2TRFE..TGN126..S;2TRFE..TGN121..L..GCC..CBU202308-202407
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),IDN SOURCED PARTS; EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDNSOURCED PARTS; IDN SOURCED PARTS; IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS; IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS; UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
main12315-11060i2GDFTV..GUN120,125,135..GCC,TH; 2GDFTV..GUN120,125,135..TH; 2GDFTV..GUN125..GCC202308-202407
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
12361INSULATOR, ENGINE MOUNTING, FRONT
(L)
(J)
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12371AINSULATOR, ENGINE MOUNTING, REAR
12380ABOLT(FOR ENGINE MOUNTING INSURATOR)
main90105-T0174×4i1GDFTV,2GDFTV..GUN122,125,126,13#..AGTP,SAP; 1TRFE,2TRFE..TGN12#,136..AGTP,SAP202308-202410
TYPE A:REFER ILLUST.
main90910-03003×4i1GDFTV,2GDFTV..GUN122,125,126,13#..AGTP,SAP; 1TRFE,2TRFE..TGN12#,136..AGTP,SAP202308-202410
TYPE B:REFER ILLUST.
12381STABILIZER, ENGINE MOUNTING
(L)
(J)
12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
MARK=T
MARK=A
MARK=S
12501BRACKET SUB-ASSY, ALTERNATOR
THA SOURCED PARTS
IND SOURCED PARTS
main12501-11012i2GDFTV..GUN120,125,135..GCC,TH; 2GDFTV..GUN120,125,135..TH; 2GDFTV..GUN125..GCC202308-202407
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
90105T0073
main90105-T0073
90119T0134
main90119-T0134
90119T0219
main90119-T0219
90119T0301
main90119-T0301
90119T0511
main90119-T0511
90178T0015
main90178-T0015
90178T0087
main90178-T0087
9155281025
main91552-81025
9167180835
main91671-80835
9415121241
main94151-21241
19 parts on this diagram · 7 diagrams in section
