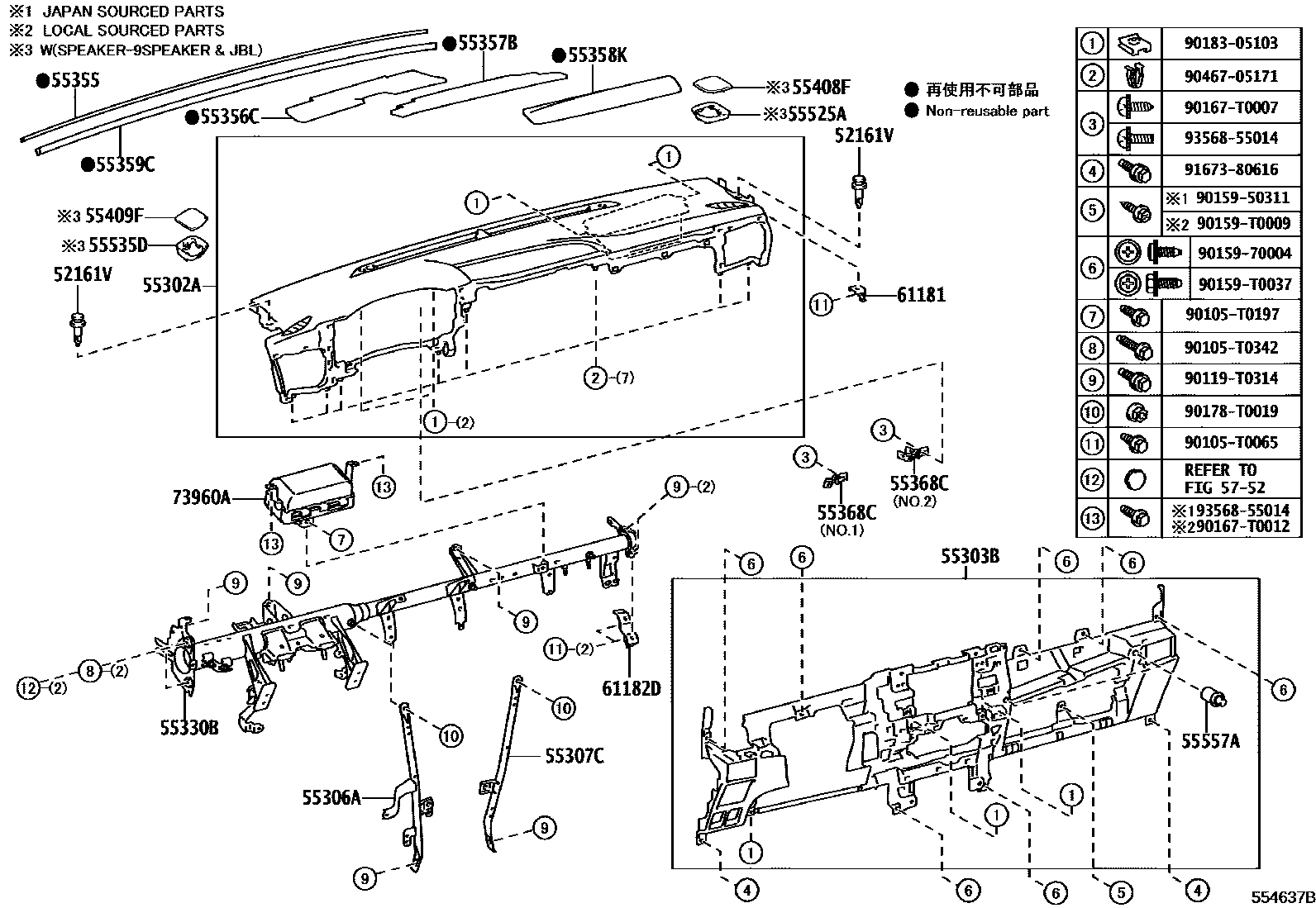

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-0K040×2iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301

(L)

main52161-16010×2iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

(J)

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-KK041-C0iGGN125,GUN112,12#,13#,TGN110,120,121,136..RHD202006-202201

BLACK,TRIM2#

main55302-KK111iGUN126202206-202301

main55302-KK111-C0iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

BLACK,TRIM2#

main55302-KK160-C0iGUN136..SD..H;GUN136..6FC..H..ARL;GGN125,GUN126..RHD..(SD,TD)..H..(ARL,SA)202006-202109

SPEAKER-9SPEAKER & JBL,BLACK,TRIM2#

main55302-KK170-C0iGGN125,GUN125,126,136,TGN128,138..LHD..H..(BZAG,LA,SA,VN)202006-202110

SPEAKER-9SPEAKER & JBL,BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-KK030-C0iGGN125,GUN112,12#,13#,TGN110,120,121,136..RHD..(ARL,GEN,IDN,KEN,PKN,SA,TH)202006-202201

BLACK,TRIM2#

main55303-KK040iGUN126202206-202301

main55303-KK040-C0iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-KK030iGUN126..(H,S)..PKN;GGN125,GUN112,12#,13#,TGN110,120,121,136..RHD..(ARL,GEN,IDN,KEN,MA,SA,TH)202006-202201

main55306-KK040iGUN122,126,TGN121..L..PKN202106-202201

main55306-KK050iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

main55306-KK060iGUN112,122,125,TGN110,120,121,126..L..GCC202006-202108

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-KK030iGGN125,GUN112,12#,13#,TGN110,120,121,136..RHD202006-202201

main55307-KK040iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-KK300iGUN126..RHD..6F..(H,S)..(ARL,GEN,PKN);GUN112,122,125,13#,TGN110,121..RHD..MTM..(ARL,GEN,IDN,MA)202006-202201

main55330-KK310iGUN125,TGN110,120,121,126..TS..L..GCC; GUN126..LHD..TD..6F;GUN125,TGN126..MTM..(H,S)..GCC;GUN122,TGN121,136..LHD..(TD,TS)..L..(GEN,LA,PH);GUN112,122,136,TGN111,121..LHD..(TD,TS)..MTM..(H,S);GUN125,135,TGN126..LHD..(TD,TS,TX)..MTM..(GEN,LA,PH,VN)202006-202108

SRS AIR BAG-WITH(*DRP)

main55330-KK320iGUN122,126,TGN121..L..PKN202106-202201

main55330-KK330iGUN112,122,125,TGN110,120,121,126..MTM..L..GCC; TGN121,126..TD..L..GEN;GUN125,TGN126..MTM..S..GCC;GUN112,122,TGN111,121..5F..S202006-202108

SRS AIR BAG-WITH(*DRP) & WITHOUT(SRS KNEE AIR BAG)

main55330-KK340iGGN125,GUN125,126,13#..RHD..6FC..(KEN,SA)202006-202104

main55330-KK350iGUN126..LHD..(MMD,TD)..6FC;GGN125,GUN125,135,TGN121,126..LHD..TD..6FC..(H,S)202006-202301

main55330-KK370iGUN125,TGN121,126..6FC..S..GCC; GUN125,TGN126..6FC..L..GCC202006-202108

SRS AIR BAG-WITH(*DRP) & WITHOUT(SRS KNEE AIR BAG)

main55330-KK420iGUN120,126,135..6FC..TH202006-202108

main55330-KK430iGUN112,122,123,125,126,135,TGN121..MTM..TH202006-202108

main55330-KK560iGUN122,125,126,13#,TGN120,136..RHD..MTM..(KEN,SA)202104-202111

main55330-KK570iGGN125,GUN125,126,13#..RHD..6FC..(KEN,SA)202104-202111

main55330-KK580iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202104-202110

main55330-KK590iGUN125,126,TGN126..LHD..6FC..(GHA,SA)202104-202111

main55330-KK360iGUN126..RHD..6FC..S..GEN202006-202108

SRS AIR BAG-WITH(*DRP) & WITHOUT(SRS KNEE AIR BAG)

main55330-KK600iGUN135..RHD..L..(KEN,SA);GUN122,125,TGN120..RHD..(SD,SS)..L202104-202111

SRS AIR BAG-WITH(*DRP) & WITHOUT(SRS KNEE AIR BAG)

main55330-KK610iGUN122..LHD..SS;GUN125,135,LAN125,TGN126,136..LHD..(SD,SS)..MTM..(L,S)202104-202109

SRS AIR BAG-WITH(*DRP) & WITHOUT(SRS KNEE AIR BAG)

main55330-KK620iGUN125,TGN126..LHD..6FC..SA202104-202109

SRS AIR BAG-WITH(*DRP) & WITHOUT(SRS KNEE AIR BAG)

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-KK020iGGN125,GUN112,12#,13#,TGN110,120,121,136..RHD202006-202201

main55355-KK030iGGN125,GUN112,122,125,126,13#,LAN125,TGN11#,120,121,126,136..LHD..(MMD,SD,SS,SX,TD,TS,TX)202006-202301

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-KK070iGUN125,135..L..(PH,VN);GUN126..(KD,MD,MMD,SD,SX,TD,TX)..(H,S);GGN125,GUN125,13#,LAN125,TGN126,136..(MD,SD,SX,TD,TX)..(H,S)..(ARL,GCC,GEN,IDN,LA,MA,PH,SA,TH)202006-202301

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-KK030iGUN122,126,TGN121..PKN202006-202201

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-KK070iGUN125,126..(H,S)..GHA202006-202111

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-KK030iGGN125,GUN125,126,13#,TGN136..RHD..(KD,MD,PD,SD,SX,TD,TX)..(H,S)202006-202201

main55359-KK040iGUN125,135..L..(PH,VN);GUN126..LHD..(MMD,SD,TD)..(H,S);GGN125,GUN125,13#,LAN125,TGN126,136..LHD..(SD,SX,TD,TX)..(H,S)..(GCC,GEN,LA,PH,SA)202006-202301

55368CBRACKET, METER MOUNTING

main55368-KK010iGUN125,126..GHA202006-202111

NO.1:REFER ILLUST.

main55368-KK020iGGN125,GUN112,12#,13#,TGN110,120,121,136..RHD202006-202201

NO.2:REFER ILLUST.

main55368-KK030iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

NO.2:REFER ILLUST.

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-KK030iGUN136..6FC..H..ARL;GUN136..(AD,SD,TD)..H..(BZAG,LA,SA);GGN125,GUN125,126,TGN128,138..(AD,SD,TD)..H..(ARL,BZAG,LA,SA,VN)202006-202110

SPEAKER-9SPEAKER & JBL

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-KK030iGUN136..6FC..H..ARL;GUN136..(AD,SD,TD)..H..(BZAG,LA,SA);GGN125,GUN125,126,TGN128,138..(AD,SD,TD)..H..(ARL,BZAG,LA,SA,VN)202006-202110

SPEAKER-9SPEAKER & JBL

55525ACOVER, INSTRUMENT PANEL SPEAKER PANEL, NO.1

main55525-KK010iGUN136..SD..H;GUN136..6FC..H..ARL;GGN125,GUN126..RHD..(SD,TD)..H..(ARL,SA)202006-202109

SPEAKER-9SPEAKER & JBL

main55525-KK020iGGN125,GUN125,126,136,TGN128,138..LHD..H..(BZAG,LA,SA,VN)202006-202110

SPEAKER-9SPEAKER & JBL

55535DCOVER, INSTRUMENT PANEL SPEAKER PANEL, NO.2

main55535-KK010iGUN136..SD..H;GUN136..6FC..H..ARL;GGN125,GUN126..RHD..(SD,TD)..H..(ARL,SA)202006-202109

SPEAKER-9SPEAKER & JBL

main55535-KK020iGGN125,GUN125,126,136,TGN128,138..LHD..H..(BZAG,LA,SA,VN)202006-202110

SPEAKER-9SPEAKER & JBL

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-0K030×2iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

5752HOLE PLUG

→ Go to FIG 57-52

61181BRACKET, INSTRUMENT PANEL SIDE

main61181-KK030iGUN125,126..GHA202006-202111

61182DBRACKET, INSTRUMENT PANEL SIDE

main61125-KK010iGGN125,GUN112,122,125,126,13#,LAN125,TGN11#,120,121,126,136..LHD..(MMD,SD,SS,SX,TD,TS,TX)202006-202301

main61126-KK010iGGN125,GUN112,12#,13#,TGN110,120,121,136..RHD202006-202201

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0K010iGUN112,12#,135,TGN110,121..RHD..(GEN,IDN,MA,PKN,TH)202006-202201

main73960-0K060iGGN125,GUN122,125,126,13#,TGN120,136..RHD..(KEN,SA)202009-202111

main73960-0K070iGGN125,GUN112,122,125,126,13#,TGN11#,120,121,126,136..LHD..(MMD,TD,TS,TX)..(GCC,GEN,LA,MMR,PH,VN)202006-202301

main73960-0K080iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHA,SA)202009-202111

main73960-0K130iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

main73960-0K150iGUN125,126,13#,TGN121..ARL202006-202108

main73960-0K160iGUN126..TWN202006-202108

90105T0065

main90105-T0065

90105T0197

main90105-T0197

90105T0342

main90105-T0342

90119T0314

main90119-T0314

9015950311

main90159-50311

9015970004

main90159-70004

90159T0009

main90159-T0009

90159T0037

main90159-T0037

90167T0007

main90167-T0007

90167T0012

main90167-T0012

90178T0019

main90178-T0019

9018305103

main90183-05103

9046705171

main90467-05171

9167380616

main91673-80616

9356855014

main93568-55014

36 parts on this diagram · 8 diagrams in section
