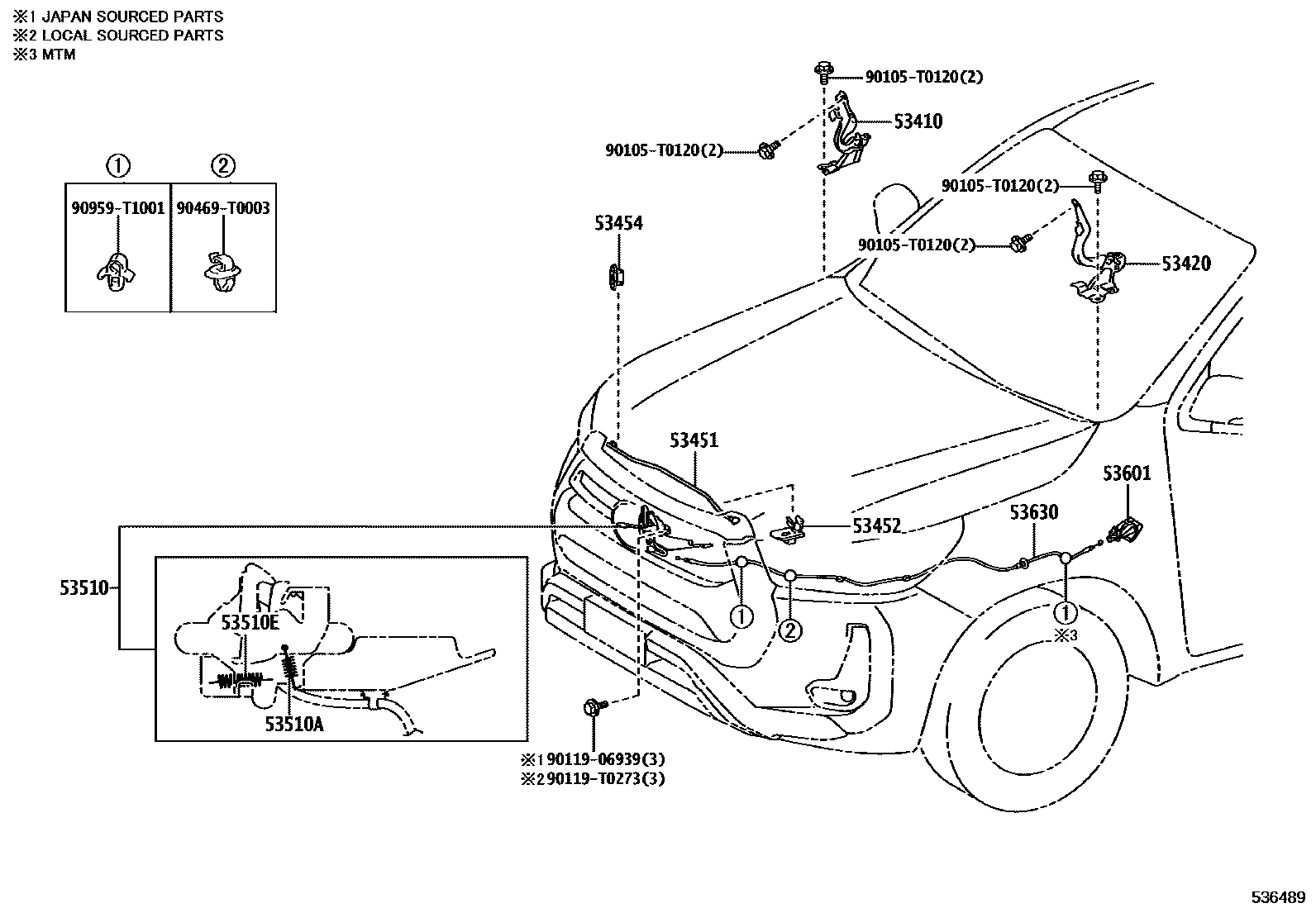

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53451ROD, HOOD SUPPORT
53452HOLDER, HOOD STAY
53454CLIP, HOOD SUPPORT ROD
53510LOCK ASSY, HOOD
main53510-0K380supersedes 53510-0K470iTGN126..H..GEN;GGN125,GUN112,122,125,126,TGN11#,120,121,126..GCC; TGN126..S..GEN202006-202108
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main53510-0K650iGUN126..RHD..6FC..H..GEN;GUN125..RHD..(H,S)..(GEN,IDN);GUN125,135..RHD..L..(GEN,IDN,MA,TH);GUN112,120,122,123,126,TGN110,121..RHD..(L,S)..(GEN,IDN,TH)202006-202110
main53510-0K660iGUN125..ARL,TH;GUN125..(H,S)..MA;GUN13#,TGN121..ARL;GUN126..RHD..6F..H..GEN;GUN126,135..(H,S)..(ARL,MA,TH)202006-202110
main53510-0K670iGUN125..LHD..TD..S..GEN; GUN135..L..VN;GUN126..LHD..GEN;TGN126..TD..S..LA;GUN125..LHD..TD..(H,L)..GEN;TGN126..(TD,TS)..L..(GEN,LA);GUN125..LHD..(TS,TX)..(GEN,LA);GUN125,126..TD..(L,S)..(LA,PH);GUN135..LHD..(TD,TS)..(GEN,LA);GUN122,TGN121,136..LHD..(TD,TS)..(GEN,LA,PH); TGN126..H..GEN202006-202108
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main53510-0K680iGUN135..(H,S)..(PH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN126,136,TGN126..(MMD,TD)..H..(LA,MMR,PH,TWN,VN)202006-202301
main53510-0K700iGUN125..(KD,SX)..L;GUN125,135..RHD..S..SA;GGN125,GUN122,126,136,TGN120,136..RHD..(KEN,SA)202009-202111
main53510-0K720supersedes 53510-0K710iGUN125..LHD..(GD,SX);GUN126..LHD..(GHA,SA);GUN125,LAN125,TGN126,136..LHD..(SD,SS)..(H,S)202009-202111
main53510-0K730iGUN125..AD..S..LA;GUN126,135..L..BZAG;GUN125,TGN136..(AD,AS)..L;GUN126,135,TGN126..(AD,AS)..(L,S)..LA202011-202110
main53510-0K740iGUN126,TGN126..AD..H;GUN125,126,135..S..BZAG;GGN125,GUN136,TGN128,13#..AD..(H,S); GUN126..L..BZAG;TGN126..AD..(L,S);GUN135..AD..6F..S..LA;GUN125,126..AD..S..LA202011-202110
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN); TOYOTA STOP & START SYSTEM-WITH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
53510ASPRING, TENSION(FOR HOOD LOCK)
main90506-T0004iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
main90506-T0005iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301
WD=0.9,CW=21
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM2#
BLACK,TRIM2#
53630CABLE ASSY, HOOD LOCK CONTROL
main53630-0K210iGGN125,GUN112,12#,13#,TGN110,120,121,136..RHD..(ARL,GEN,IDN,KEN,PKN,SA,TH)202006-202201
90105T0120
main90105-T0120
9011906939
main90119-06939
90119T0273
main90119-T0273
90469T0003
main90469-T0003
90959T1001
main90959-T1001
15 parts on this diagram · 2 diagrams in section
