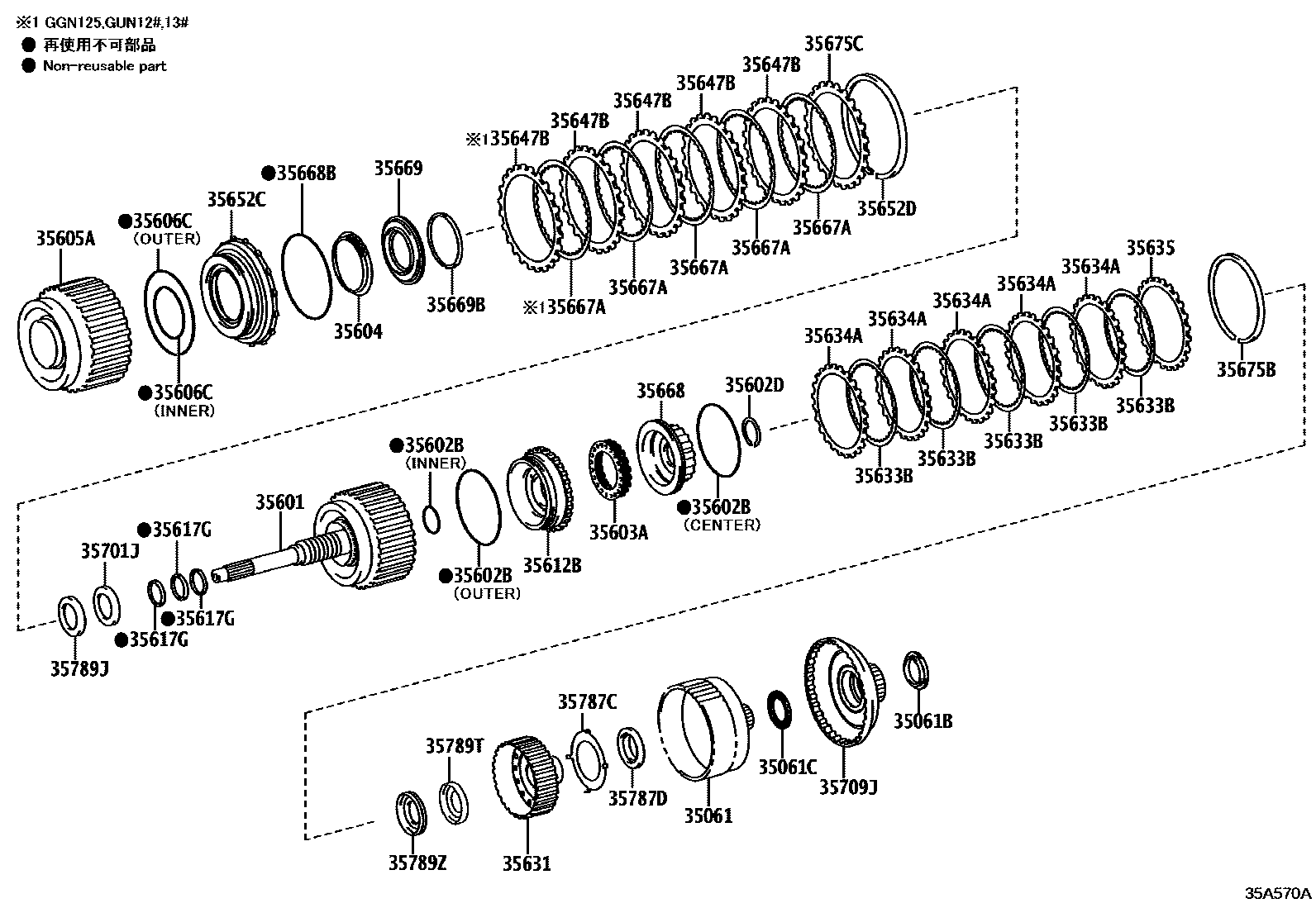

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

35061HUB SUB-ASSY, FORWARD CLUTCH

main35061-71010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

35061BRACE, THRUST BEARING(FOR FORWARD CLUTCH HOB)

main35789-71020iGGN125,GUN120,125,126,13#,TGN121,126..(KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC202006-202301

35061CBEARING, THRUST NEEDLE ROLLER(FOR FORWARD CLUTCH HUB)

main90374-39008iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

35601DRUM SUB-ASSY, CLUTCH

main35601-0K010iGGN125,GUN120,125,135..(MD,TD,TS,TX)..6FC202006-202110

(L)

main35601-0K020iTGN121,126..(TD,TS)..6FC202006-202108

(L)

main35601-0K030iGUN126,136..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

main35601-26020iGUN126,136..(MD,MMD,TD,TS,TX)..6FC202006-202301

(J)

main35601-71030iGGN125,GUN120,125,135..(MD,TD,TS,TX)..6FC202006-202110

(J)

main35601-71040iTGN121,126..(TD,TS)..6FC202006-202108

(J)

35602BRING, O (FOR FORWARD CLUTCH PISTON)

main90301-33017iGUN126..GHA202006-202111

INNER

main90301-99096iGUN126..GHA202006-202111

CENTER

main90301-99145iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

OUTER

main90301-T0087iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L),OUTER

main90301-T0088iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L),INNER

main90301-T0091iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L),CENTER

35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)

main90520-35003iGUN126..6FC..PKN202006-202201

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-0K010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

main35603-60020iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202009-202110

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35604-0K010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

main35604-71010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202009-202110

35605ADRUM SUB-ASSY, DIRECT CLUTCH

main35605-0K010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

main35605-71010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(J)

35606CRING, O (FOR DIRECT CLUTCH PISTON)

main90301-74004iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202009-202110

INNER

main90301-99205iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(J),OUTER

main90301-T0092iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L),INNER

main90301-T0093iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L),OUTER

35612BPISTON, FORWARD CLUTCH

main35612-0K010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

main35612-71010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202009-202110

35617GRING, CLUTCH DRUM OIL SEAL

main35617-71010×3iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)

main35631-0K010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

main35631-71010iGGN125,GUN125,126,13#,TGN126..6FC..(KEN,PKN,SA)202009-202201

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35633-71010×5iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-71010×5iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

T=3.0

35635FLANGE, FORWARD CLUTCH

main35635-71010iGUN126..6FC..PKN202006-202201

T=3.0

main35635-71020iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

T=3.1

main35635-71030iGUN126..GHA202006-202111

T=3.2

main35635-71040iGUN126..6FC..PKN202006-202201

T=3.3

main35635-71050iGGN125,GUN120,125,126,13#,TGN121,126..(KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC202006-202301

T=3.4

main35635-71060iGUN126..GHA202006-202111

T=3.5

main35635-71070iGUN126..GHA202006-202111

T=3.6

main35635-71080iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

T=3.7

main35635-71090iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

T=3.8

main35635-71100iGUN126..GHA202006-202111

T=3.9

main35635-71110iGGN125,GUN120,125,126,13#,TGN121,126..(KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC202006-202301

T=4.0

main35635-71120iGUN126..6FC..PKN202006-202201

T=4.1

main35635-71130iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

T=4.2

35647BPLATE, CLUTCH, NO.2

main35647-71010×5iGGN125,GUN125,126,13#..AD..6FC; TGN121,126,128,138..6FC202006-202110

35652CPISTON, DIRECT CLUTCH

main35652-0K010iGGN125,GUN120,125,126,13#..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

main35652-0K020iTGN121,126..(TD,TS)..6FC202006-202108

(L)

main35652-71010iGUN126..GHA202009-202111

main35652-71020iTGN126,128,138..6FC..(BZAG,SA)202009-202110

35652DRING, SNAP (FOR DIRECT CLUTCH PISTON)

main90520-99159iGUN126..GHA202009-202111

main90520-T0289iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

35667ADISK, DIRECT CLUTCH

main35667-71010×4iGGN125,GUN125,126,13#..AD..6FC; TGN121,126,128,138..6FC202006-202110

35668BALANCER, CLUTCH, NO.1

main35668-0K010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

main35668-71010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202009-202110

35668BRING, O(FOR CLUTCH BALANCER)

main90301-99204iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202009-202110

main90301-T0094iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

35669BALANCER, CLUTCH, NO.2

main35669-0K010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

main35669-71010iGUN126..GHA202009-202111

35669BRING, SNAP (FOR CLUTCH BALANCER)

main90520-68006iGGN125,GUN125,126,13#,TGN126..6FC..(KEN,PKN,SA)202009-202201

main90520-T0287iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90520-99158iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202009-202110

main90520-T0286iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

35675CFLANGE, DIRECT CLUTCH

main35675-71010iGGN125,GUN120,125,126,13#,TGN121,126..(KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC202006-202301

T=3.0

main35675-71020iGGN125,GUN120,125,126,13#,TGN121,126..(KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC202006-202301

T=3.1

main35675-71030iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

T=3.2

main35675-71040iGUN126..GHA202006-202111

T=3.3

main35675-71050iGGN125,GUN120,125,126,13#,TGN121,126..(KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC202006-202301

T=3.4

main35675-71060iGUN126..GHA202006-202111

T=3.5

main35675-71070iGUN126..GHA202006-202111

T=3.6

main35675-71080iGGN125,GUN120,125,126,13#,TGN121,126,128,138..6FC202006-202104

T=3.7

main35675-71090iGGN125,GUN120,125,126,13#,TGN121,126,128,138..6FC202006-202104

T=3.8

35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)

main90374-34015iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

35709JDRUM SUB-ASSY, SUN GEAR INPUT

main35709-71010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

35787CRACE, THRUST BEARING, NO.2

main35787-60010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

35787DBEARING, THRUST NEEDLE ROLLER

main90374-38005iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

35789JRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)

main35789-71010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

35789TRACE, THRUST BEARING (INPUT SHAFT REAR)

main35789-50050iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202110

35789ZBEARING, THRUST NEEDLE ROLLER

main90374-21004iGGN125,GUN120,125,135,TGN121,126,128,138..6FC202006-202110

main90374-21014iGUN126,136..AD..6FC202006-202110

33 parts on this diagram · 1 diagram in section
