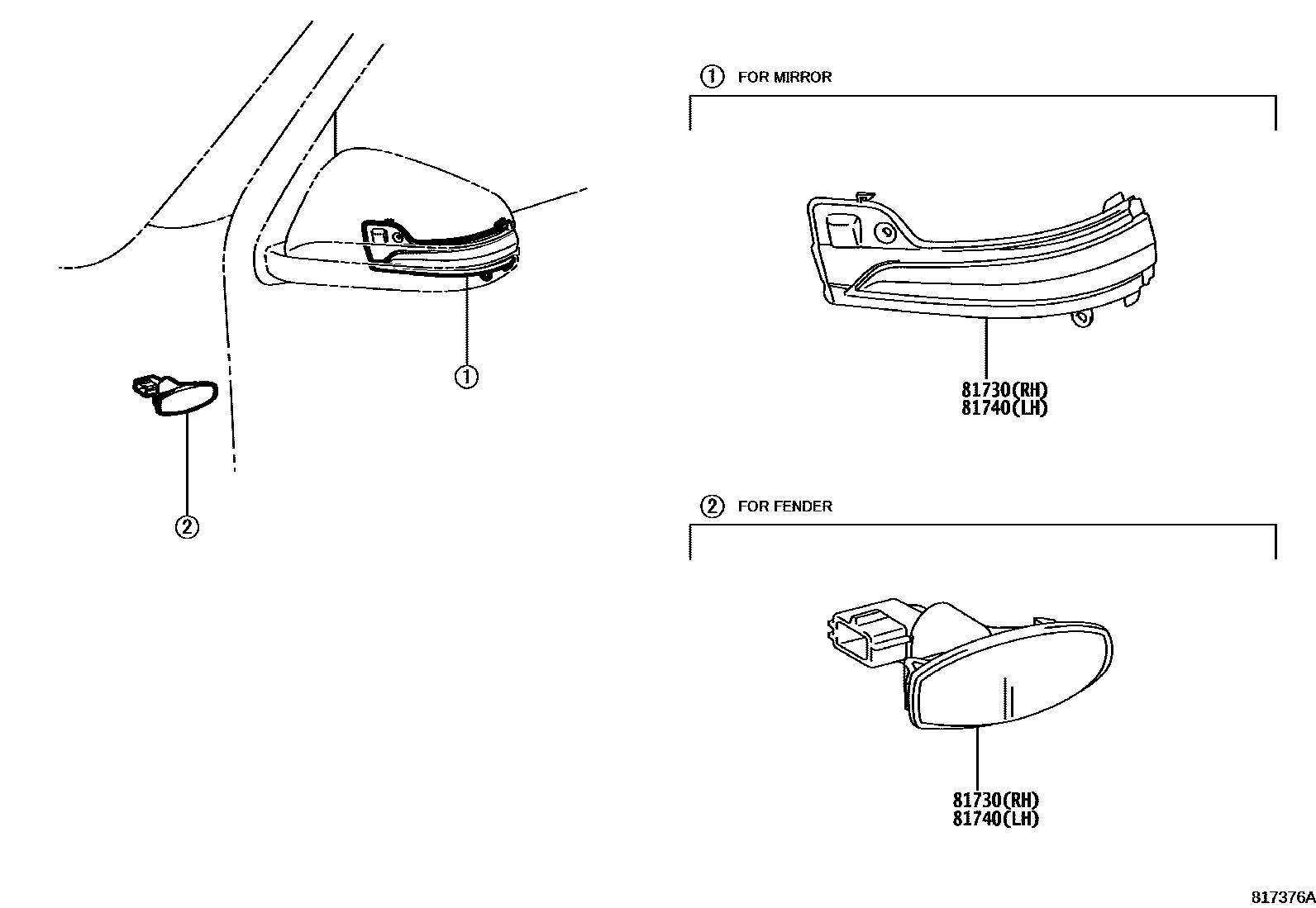

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
81730LAMP ASSY, SIDE TURN SIGNAL, RH
main81730-0K020iGUN136..H,M;GUN135..M..PH;GUN126..(SDC,SSC)..M;GUN135..(H,S)..(GEN,LA);TGN126..(ADC,TDC,TSC)..(M,S);GUN122,125,126..LHD..TSC..S..HDCR;GUN122,136..S..(ARL,BZAGT,GCC)201708-202105
HOUSING COLER:BLACK
main81730-0K080iGUN122,KUN122..(M,S)..GCC;KUN125..(ADC,SXT,TDC,TXT)..S;TGN126..(ADC,TDC,TSC)..(M,S);TGN121,136..(ADC,TXT)..(L,X)..(BZAGT,TH);GUN125..(ADC,MDC,TDC,TXT)..(ARL,BZAGT,M201505-201708
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP),HOUSING COLER:GRAY
main81730-0K080iKUN126..ADC..5FC..X;GUN125,126,135,KUN125,126,135,TGN126,136..(ADC,TDC)..MTM..X..LA201505-201708
HOUSING COLER:GRAY
main81730-0K080iKUN126..ADC..5FC..X;GUN125,126,135,KUN125,126,135,TGN126,136..(ADC,TDC)..MTM..X..LA201505-201708
OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)&W(SIDE TURN LAMP),HOUSING COLER:GRAY
main81730-0K080iKUN126..ADC..5FC..X;GUN125,126,135,KUN125,126,135,TGN126,136..(ADC,TDC)..MTM..X..LA201505-201708
OUTSIDE REAR VIEW MIRROR-*RCM(*CR)&W(SIDE TURN LAMP),HOUSING COLER:GRAY
main81730-0K080iKUN126..ADC..5FC..X;GUN125,126,135,KUN125,126,135,TGN126,136..(ADC,TDC)..MTM..X..LA201505-201708
OUTSIDE REAR VIEW MIRROR-MANUAL(*CR)&W(SIDE TURN LAMP),HOUSING COLER:GRAY
main81730-0K110iTGN136..ASC;TGN136..ADC..X..LA;GUN125,126,135,KUN125,126,135,TGN126..(ADC,ASC)..X201511-201602
OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)
OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)
81740LAMP ASSY, SIDE TURN SIGNAL, LH
main81730-0K110iTGN136..ASC;TGN136..ADC..X..LA;GUN125,126,135,KUN125,126,135,TGN126..(ADC,ASC)..X201511-201602
OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)
OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)
main81740-0K020iGUN136..H,M;GUN135..M..PH;GUN126..(SDC,SSC)..M;GUN135..(H,S)..(GEN,LA);TGN126..(ADC,TDC,TSC)..(M,S);GUN122,125,126..LHD..TSC..S..HDCR;GUN122,136..S..(ARL,BZAGT,GCC)201708-202105
HOUSING COLER:BLACK
main81740-0K080iKUN126..ADC..5FC..X;GUN125,126,135,KUN125,126,135,TGN126,136..(ADC,TDC)..MTM..X..LA201505-201708
OUTSIDE REAR VIEW MIRROR-*RCM(*CR)&W(SIDE TURN LAMP),HOUSING COLER:GRAY
main81740-0K080iKUN126..ADC..5FC..X;GUN125,126,135,KUN125,126,135,TGN126,136..(ADC,TDC)..MTM..X..LA201505-201708
OUTSIDE REAR VIEW MIRROR-MANUAL(*CR)&W(SIDE TURN LAMP),HOUSING COLER:GRAY
main81740-0K080iKUN126..ADC..5FC..X;GUN125,126,135,KUN125,126,135,TGN126,136..(ADC,TDC)..MTM..X..LA201505-201708
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP),HOUSING COLER:GRAY
HOUSING COLER:GRAY
OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)&W(SIDE TURN LAMP),HOUSING COLER:GRAY
2 parts on this diagram · 1 diagram in section
