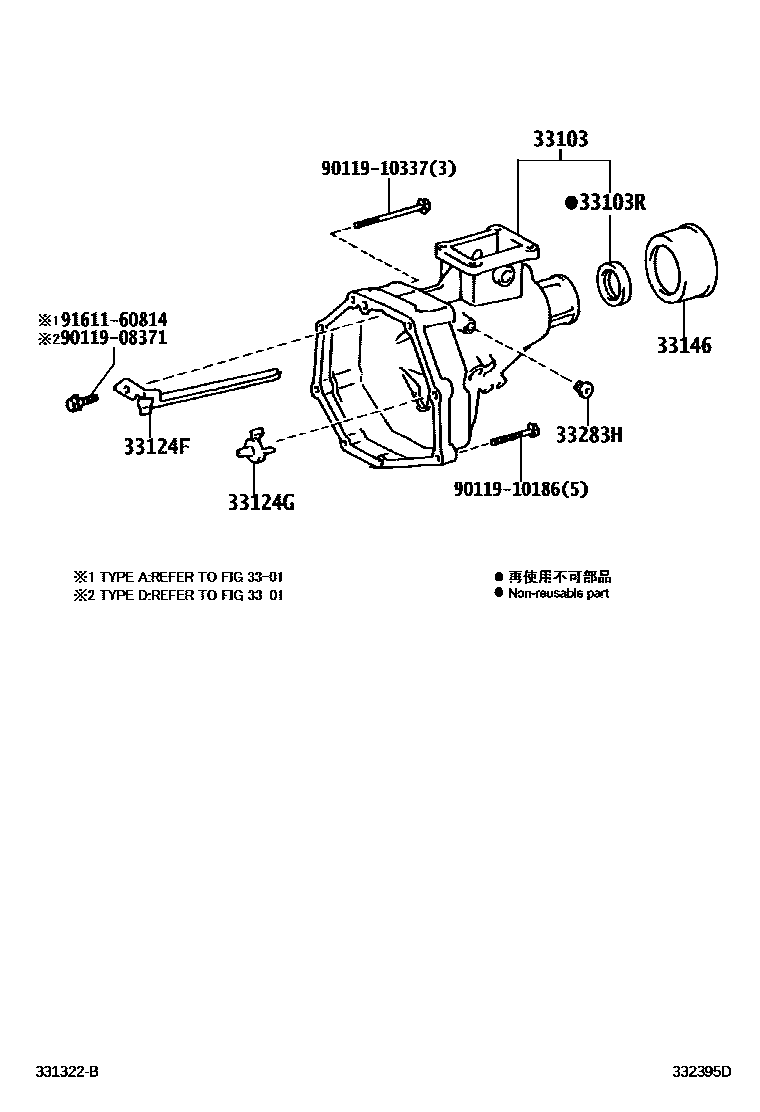

EXTENSION HOUSING (MTM)
33103HOUSING SUB-ASSY, EXTENSION(MTM)
main33103-0K010iKUN36..RHD..5F;KUN35..DLX..PHL;KUN16..(SCB,SMT)..CBU;KUN15,35..HDCR..(ANCOM,LA,SA,TH); TGN36..ANCOM..IV3;TGN16,36..5F..(ANCOM,LA,SA)..CBU200808-201204
TYPE C:REFER 33-01
TYPE D:REFER 33-01
TYPE D:REFER 33-01
TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE B:REFER 33-01; TYPE B:REFER 33-01
TYPE A:REFER 33-01
33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
TYPE A:REFER 33-01
TYPE A:REFER 33-01
TYPE A:REFER 33-01
TYPE A:REFER 33-01
main90311-T0020iKUN15..PHL..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN10,LAN15,TGN10,15..(GCC,GEN,IDN,PKN)..CBU200408-201202
main90311-T0029iKUN36..XTR;KUN16,36..5F..(ARL,TH);GGN15,KUN15,35,TGN11,16..5F..(HDCR,HTWC)..(ARL,GCC,GEN,PHL,TH)200808-201108
TYPE B:REFER 33-01
TYPE C:REFER 33-01
33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
TYPE C:REFER 33-01
main33124-0K030iKUN15..PHL..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN10,LAN15,TGN10,15..(GCC,GEN,IDN,PKN)..CBU200408-201202
main33124-0K040iKUN16,36..5F;TGN36..5F..CBU;TGN36..ANCOM..IV3;GGN15,KUN15,35,TGN11,16..5F..(HDCR,HTWC)200808-201204
TYPE D:REFER 33-01
main33124-0K050iKUN36..XTR;KUN16,36..5F..(ARL,TH);GGN15,KUN15,35,TGN11,16..5F..(HDCR,HTWC)..(ARL,GCC,GEN,PHL,TH)200902-201108
TYPE B:REFER 33-01
main33124-35090iKUN16,36..5F..(ARL,TH);GGN15,KUN15,35,TGN11,16..5F..(HDCR,HTWC)..(ARL,GCC,GEN,PHL,TH); TGN16..SR..GCC200808-200902
TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE B:REFER 33-01; TYPE B:REFER 33-01
33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)
TYPE C:REFER 33-01
TYPE A:REFER 33-01
33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)
main33146-04010iTGN36..SCB;TGN36..DCB..SA;KUN16,36..XTR..TH;KUN36..(DCB,SCB)..5F..SR;KUN36,TGN36..DCB..5F..DLX;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN35,TGN10..DLX..(ANCOM,GCC,GEN,IDN,LA,SA);GGN15,KUN10,16,LAN15,35,TGN11,15..(DCB,SCB)..5F200408-201202
33283HPLUG, W/HEAD STRAIGHT SCREW
main90341-12008iTGN15;KUN10,LAN15,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200408-201202
9011908371
main90119-08371
9011910186
main90119-10186
9011910337
main90119-10337
9161160814
main91611-60814
10 parts on this diagram · 2 diagrams in section
