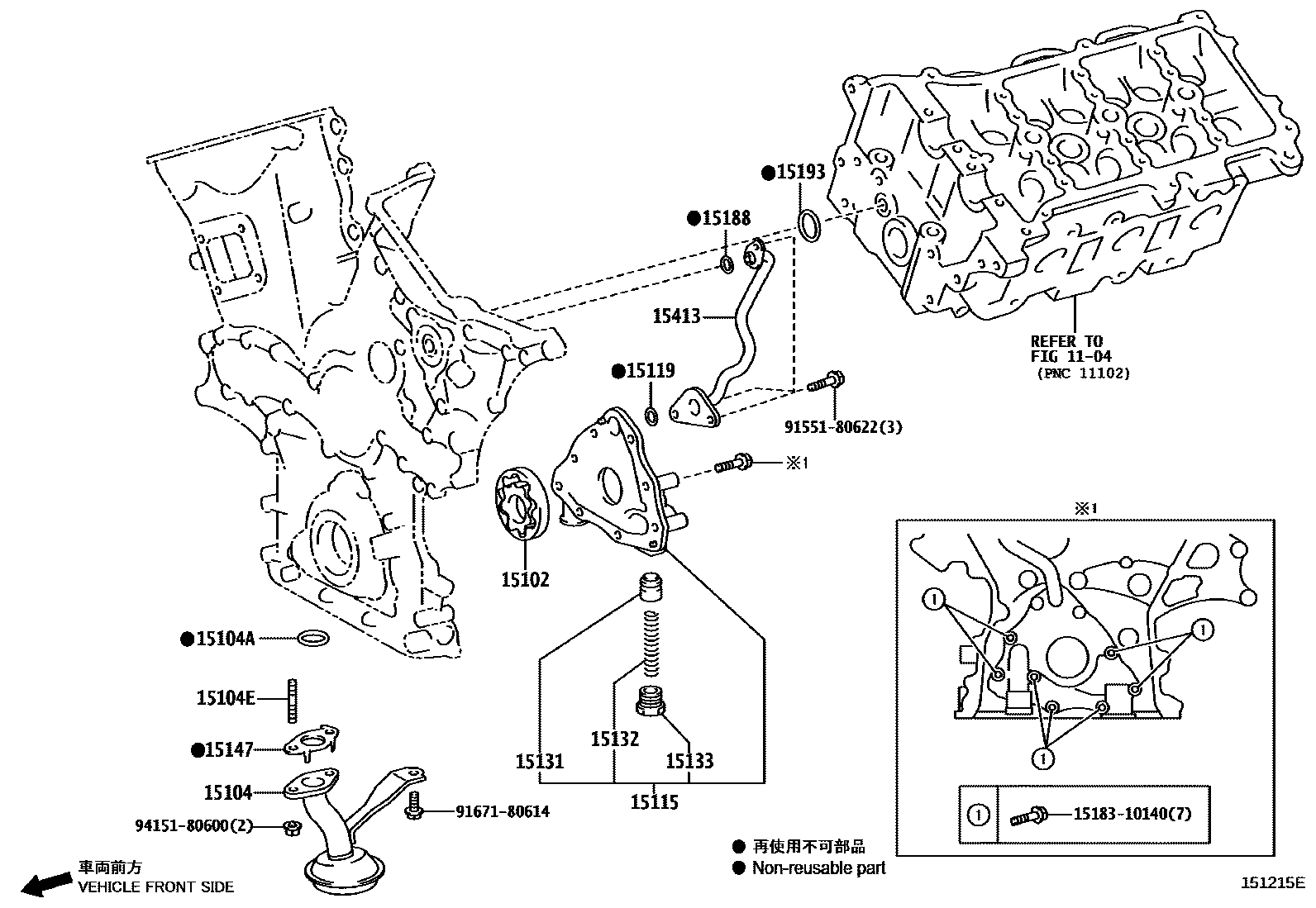

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

1104CYLINDER HEAD

→ Go to FIG 11-04

15102ROTOR SET, OIL PUMP

main15103-31050i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200808

15104STRAINER SUB-ASSY, OIL

main15104-0C010i2TRFE..TGN36..4FC..LA200810-200903

*191

main15104-0C020i2TRFE..TGN36..4FC..LA200810-200903

*125

main15104-0L010i2KDFTV..KUN25..TH200808-200908

*130

main15104-0L011i1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN35..SR..(PHL,SA);1KDFTV..KUN26..4FC..(PHL,TH);1KDFTV..KUN26,36..5F..(IDN,PHL,SA,TH);2KDFTV..KUN25..ANCOM,GCC,GEN,MA,PKN,SA;1KDFTV,2KDFTV..KUN1#..GCC,GEN,PHL,SA,TH;2KDFTV..KUN35..DLX..(ANCOM,GEN,PHL,SA,TH); 2KDFTV..KUN15..PKN201105-201110

*130

main15104-0L020i1KDFTV,2KDFTV..KUN15,2#,3#..SA200504-200612

*130

main15104-0L030i1KDFTV,2KDFTV..KUN2#,3#..LA200810-201110

main15104-30050i2KDFTV..KUN25,35..ANCOM;1KDFTV,2KDFTV..KUN15,26,36..XTR..SA201010-201204

*163 OR *184

main15104-31110i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200808-201107

main15104-54260i5LE..LAN15,25,35200507-201009

15104ARING, O(FOR OIL STRAINER)

main96722-24030i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200808-201107

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140×2i2KDFTV..KUN35..SCB..SA;1KDFTV..KUN26..DCB..5F..SA;1KDFTV,2KDFTV..KUN15,25,36..RHD..(DCB,SCB)..5F..SA200612-201201

*163 OR *184

main90116-T0019×2i1KDFTV,2KDFTV..KUN1#,2#200408-200410

*130

main90116-T0020×2i2KDFTV..KUN35..SR..TH;1KDFTV,2KDFTV..KUN2#,3#..LA200810-201110

main90126-06029×2i1GRFE..GGN15,25200502-200812

main90126-08037×2i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-200812

main92122-80816×2i5LE..LAN15,25,35..SA200810-201108

15115COVER, OIL PUMP

main15115-0C010i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-200812

main15115-31050i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200808

main15115-54022i5LE..LAN15,25,35200507-201009

15119GASKET, OIL PUMP COVER

main15119-31050i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200808-201107

15131VALVE, OIL PUMP RELIEF

main15131-46040i1KDFTV,2KDFTV..KUN10,16;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN15,26..XTR..(ARL,TH);1KDFTV,2KDFTV..KUN15,26,36..(DCB,SCB,SMT,THDCB)..(ARL,GCC,GEN,IDN,PHL,SA,TH); 2KDFTV..KUN15..SR..SA;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);2KDFTV..KUN10,15,35..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH); 2TRFE..TGN36..CBU;1TRFE,2TRFE..TGN1#;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA)200808-201204

*130; *163 OR *184

main15131-54010i5LE..LAN15,25,35200507-201009

15132SPRING, OIL PUMP RELIEF VALVE

main15132-0C010i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-200812

main15132-0L030i2KDFTV..KUN35..GEN,SA;2KDFTV..KUN15,25..DLX..SA;2KDFTV..KUN25..THDCB,THSCB201008-201204

*130,(L)

main15132-17010i1KDFTV..KUN26..THDCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..GCC,GEN;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;2KDFTV..KUN35..(DCB,THDCB)..DLX..(GEN,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);1KDFTV,2KDFTV..KUN10,15,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)200603-201201

*163 OR *184

main15132-46020i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200808-201107

main15132-54010i5LE..LAN15,25,35..SA200810-201108

15133PLUG, OIL PUMP RELIEF VALVE

main15133-0C010i1TRFE..TGN10,15200502-200810

(L)

main15133-17010i2KDFTV..KUN25,35201201-201204

*130,(J)

main15133-28020i1GRFE..GGN15,25200502-200812

main15133-54010i5LE..LAN15,25,35..SA200810-201108

15147GASKET, OIL STRAINER

main15147-0C010i2TRFE..TGN36..SCB;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN36..DCB..(ANCOM,SA);1TRFE,2TRFE..TGN15,16,26..ANCOM,SA200504-200812

(L)

main15147-46010i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200808

main15147-75030i2TRFE..TGN26,36..LA200810-201006

(J)

15188GASKET, OIL PUMP

main15188-31050i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200808-201107

15193GASKET, OIL PUMP

main15193-0L010i1KDFTV,2KDFTV..KUN15,2#,3#..SA200408-200612

*130

main15193-31010i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200808

main15193-67011i2KDFTV..KUN25..TH200808-200908

ENGINE NO.=7XXXXXX

15413PIPE, OIL PUMP OUTLET

main15413-31020i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200808

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140

9155180622

main91551-80622

9167180614

main91671-80614

9415180600

main94151-80600

18 parts on this diagram · 4 diagrams in section
