SWITCH & RELAY & COMPUTER

0001 1ENGINE,TRANSMISSION & ENGINE 0002 1ENGINE,TRANSMISSION & ENGINE 0003 1ENGINE,TRANSMISSION & ENGINE 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1INSTRUMENT PANEL & COMBINATIO0007 1INSTRUMENT PANEL & COMBINATIO0008 1INSTRUMENT PANEL & COWL RELAY0009 1INSTRUMENT PANEL & COWL RELAY0010 1DOOR & FLOOR 0011 1ROOF,FLOOR & DOOR 0012 1 0013 1ENGINE ROOM 0014 1ENGINE ROOM

2302FUEL FILTER

→ Go to FIG 23-02

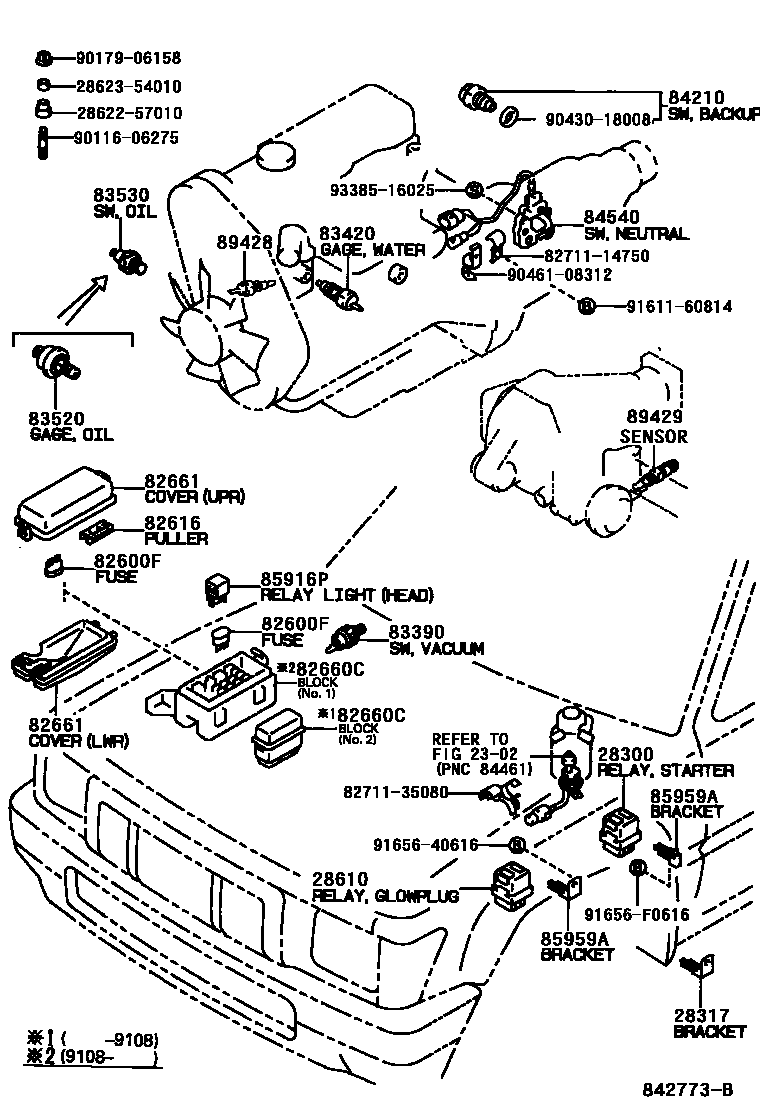

28300RELAY ASSY, STARTER

main28300-10020i22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92199202-199208

main28300-46010i5L..LN200200106

main28300-54070i2L,3L..LN8#,90198808-199108

main28300-54110i2L,3L..LN8#,9#199508-200106

main28341-11010i22R#,2Y,3Y,4Y..RN125,8#,90,YN8#,9#..MTM199208-199505

main28341-11040i2L,3L..LN8#,90..MTM199208-199508

main90987-02009i22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92199108-199202

28317BRACKET, STARTER RELAY

main85959-35020i2L,3L..LN8#,9#199108-200106

28610RELAY ASSY, INTAKE HEATER OR GLOW PLUG

main28610-54300i2L,3L..LN8#,90198808-199108

main28610-64110i2L..LN85..LHD..TH;2L,3L..LN8#..ARL,GEN,V199608-200106

main28610-67010i2L,3L..LN80,85,9#..RHD..TH199608-199806

82600FFUSE, FUSE BLOCK

main90080-82012iLN200..SRV200108-200412

10A,RED,(L)

main90080-82013iLN200..DLX,STD200202-200412

15A,BLUE,(L)

main90080-82015iLN200..DLX,STD200202-200412

7.5A,BROWN

main90982-07011iLN85..RHD..STD;LN80,YN80,85,90..RHD..(GEN,TH)199308-199909

30A,GREEN

main90982-09002iLN200..DLX,STD200202-200412

10A

main90982-09003iLN8#,9#,RN125,8#,90,YN8#,9#198808-200106

15A

main90982-09004iLN8#,9#,RN125,8#,90,YN8#,9#198808-200106

20A,YELLOW

main90982-09005iLN8#,9#,RN125,8#,90,YN8#,9#198808-200106

7.5A

main90982-09009iRZN200200106-200412

10A,MINI FUSE,RED

main90982-09010iRZN200200106-200412

15A,MINI FUSE,BLUE

82616PULLER, FUSE

main82616-20010iRZN200200106

main82616-89102iLN8#,90,RN125,8#,90,YN8#,92198808-199108

82660CBLOCK ASSY, RELAY

main82660-35030iLN8#,90;RN85,90..ARL199208-199511

main82660-35100iRN85..SR5..GEN199512-199708

CHINA SPEC

main82660-89131iRN125198907-199108

main82660-89136iRN125199008-199108

NO.2,W(AIR CONDITIONER)

82661COVER, RELAY BLOCK, NO.1

main82662-35010iRN85..EFI199401-199408

UPR

main82662-35020iYN80,85,90;RN85..ARL,V;RN85..LHD..CBR..GEN;LN8#,RN80,90,YN81,86,92..ARL,GEN,V199308-199408

UPR

main82662-35180iLN8#,90,RN125,8#,90,YN8#,92199102-199108

UPR

main82662-35370iRN85,90..ARL199408-199708

UPR

main82662-35380iRN85..EFI199408-199607

UPR

main82662-35381iRN85..EFI199607-199909

UPR

main82662-35390iYN80,85,90;LN8#,YN81,86,92..ARL,GEN,V199408-199607

UPR

main82662-35391iLN8#,YN8#,92..ARL,GEN,V199607-200106

UPR

main82662-35400iRN8#,90..LHD..CBR199408-199909

UPR

main82662-3D030iLN200200106-200108

main82662-3D050iRZN200200106-200412

main82662-3D070iLN200..DLX,STD200108-200202

main82662-89102iLN8#,90,RN125,8#,90,YN8#,92198808-199102

UPR

main82663-35010iRN85..LHD;LN80,85,90,RN80,YN80,85..TH,V; RN85..RHD;LN8#,RN125,90,YN8#,92..ARL,GEN,V199108-199208

LWR

main82663-89101iLN8#,90,RN125,8#,90,YN8#,92198808-199108

LWR

83390SWITCH ASSY, VACUUM WARNING

main83390-30020iLN90;LN8#..ARL,GEN198808-199001

main83390-30100iLN8#,9#199108-200106

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iLN8#,90,RN125,8#,90,YN8#,92199208-199308

main83420-20020iLN8#,90,RN125,8#,90,YN8#,92199001-199208

main83420-20040iRZN200200106-200412

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14023iRN90198808-199208

DENSO

main83520-34010iRN85,90,YN90..SR5..(ARL,GEN,TH)199208-199708

main83520-35030iLN85,9#..SR5199508-199806

main83520-55011iRN90198808-199208

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iRN125,8#,YN8#,92..ARL,GEN,V198808-199001

main83530-14070iRN85..SR5..V;RN85,YN85..DLX,STD;RN125,80,90,YN80,81,86,92..GEN,TH,V199208-199601

main83530-28010iRN85199803-199909

main83530-28020iRZN200200106

main83530-30060iLN8#,90..ARL,GEN198808-199001

main83530-30090iYN85..RHD;YN8#,92..LHD..CBU199601-199803

main83530-60030iLN8#..DLX,STD199803-200106

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iYN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM198808-199108

main84210-26030iYN80,85..4F..(ARL,TH)199108-199303

84540SWITCH ASSY, NEUTRAL START

main84540-28020iLN86,RN85,90..4FC199108-199110

main84540-28021iLN86,RN85,90..4FC199110-199308

main84540-30290iLN86,90,RN85,90..4FC199308-199806

TOKAIRIKA

main84540-30300iLN86,90,RN85,90..4FC199308-199806

MATSUSHITA

main84540-35010iLN85,RN85,90..4FC198808-199108

85916PRELAY, HEADLAMP

main90987-02006iLN8#,9#,RN125,8#,90,YN8#,9#198808-200106

85959AHOLDER, RELAY

main85959-35020iLN8#,9#199108-200106

89428SWITCH, TEMPERATURE DETECT, NO.2

main88790-22060iLN81,86..V199008-199708

main89428-20050iRN8#,90..ARL,V;RN85..RHD..GEN..IV3199403-199812

89429SENSOR, OIL TEMPERATURE

main89422-20010iLN86199909-200106

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14750

8271135080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35080

9011606275

main90116-06275

9017906158

main90179-06158

9043018008

main90430-18008

9046108312

main90461-08312

9161160814

main91611-60814

9165640616

main91656-40616

91656F0616

main91656-F0616

9338516025

main93385-16025

30 parts on this diagram · 14 diagrams in section
