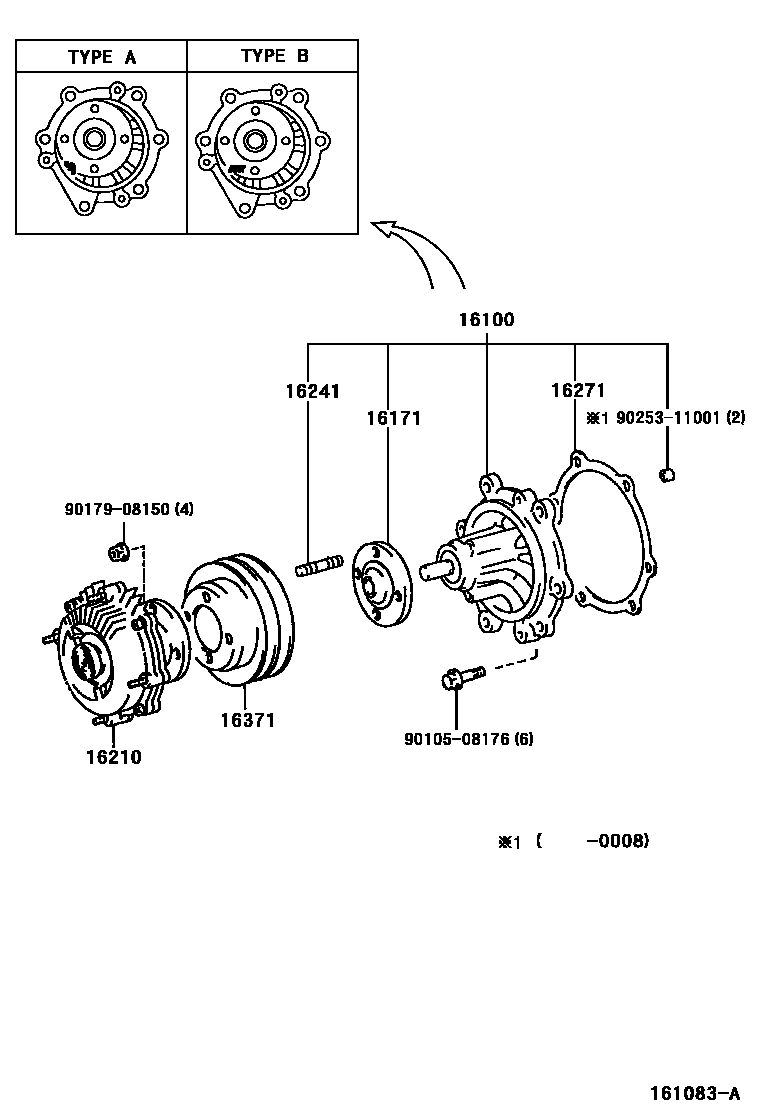

WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-09092i5L..LN200200106-200401

TYPE A:REFER TO ILLUSTRATION,(L)

main16100-09102i5L..LN200200106-200401

TYPE B:REFER TO ILLUSTRATION,(L)

main16100-39346i22R#..RN125,8#,90198808-199909

main16100-59155i2L,3L..LN8#,90198808-199701

main16100-59255i2L,3L..LN8#,9#199701-200008

main16100-59257i5L..LN200200106-200412

(J)

main16100-79036i2Y,3Y,4Y..YN8#,9#198808-199611

main16100-79037i2Y,3Y,4Y..YN8#,92199611-199909

main16100-79255i3RZFE..RZN200200106-200308

main16100-79445i3RZFE..RZN200200308-200412

16171SEAT, WATER PUMP PULLEY

main16171-35010i22R#..RN125,8#,90198808-199909

main16171-41170i2L,3L..LN8#,90198808-199701

main16171-75020i2L,3L..LN8#,9#199701-200106

16210COUPLING ASSY, FLUID

main16210-31010i2Y..YN85..ARL198808-199708

main16210-35020i22RE..RN85199401-199909

main16210-38060i22R..RN125,8#,90198808-199909

main16210-54140i2L..LN85..5F..ARL198808-199108

main16210-54150i2L..LN85..GEN,TH;2L..LN85..4FC..ARL;2L,3L..LN80,81,86,9#198808-200106

main16210-54250i5L..LN200200106-200412

main16210-75060i3RZFE..RZN200200106-200412

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-71010×4i2Y,3Y,4Y..YN8#,9#198808-199909

main16198-70010×4i2L..LN8#,90198808-198810

main16241-28020×4i22R#..RN125,8#,90198808-199909

main92122-40816×4i2L,3L..LN8#,90198810-199605

main92122-60818×4i2L,3L..LN8#,9#199605-200106

16271GASKET, WATER PUMP

main16271-54020i2L,3L..LN8#,9#198808-200008

main16271-54030i3L..LN86200008-200106

16371PULLEY, FAN

main16173-35020i22R#..RN125,8#,90198808-199909

main16371-05010i5L..LN200200304-200412

(L)

main16371-54030i5L..LN200200304-200412

(J)

main16371-71010i2Y,3Y,4Y..YN8#,9#198808-199408

main16371-73011i2Y,3Y,4Y..YN8#,92..ARL,GEN,V199408-199909

main16371-75030i3RZFE..RZN200200106-200412

9010508176

main90105-08176

9017908150

main90179-08150

9025311001

main90253-11001

9 parts on this diagram · 4 diagrams in section
