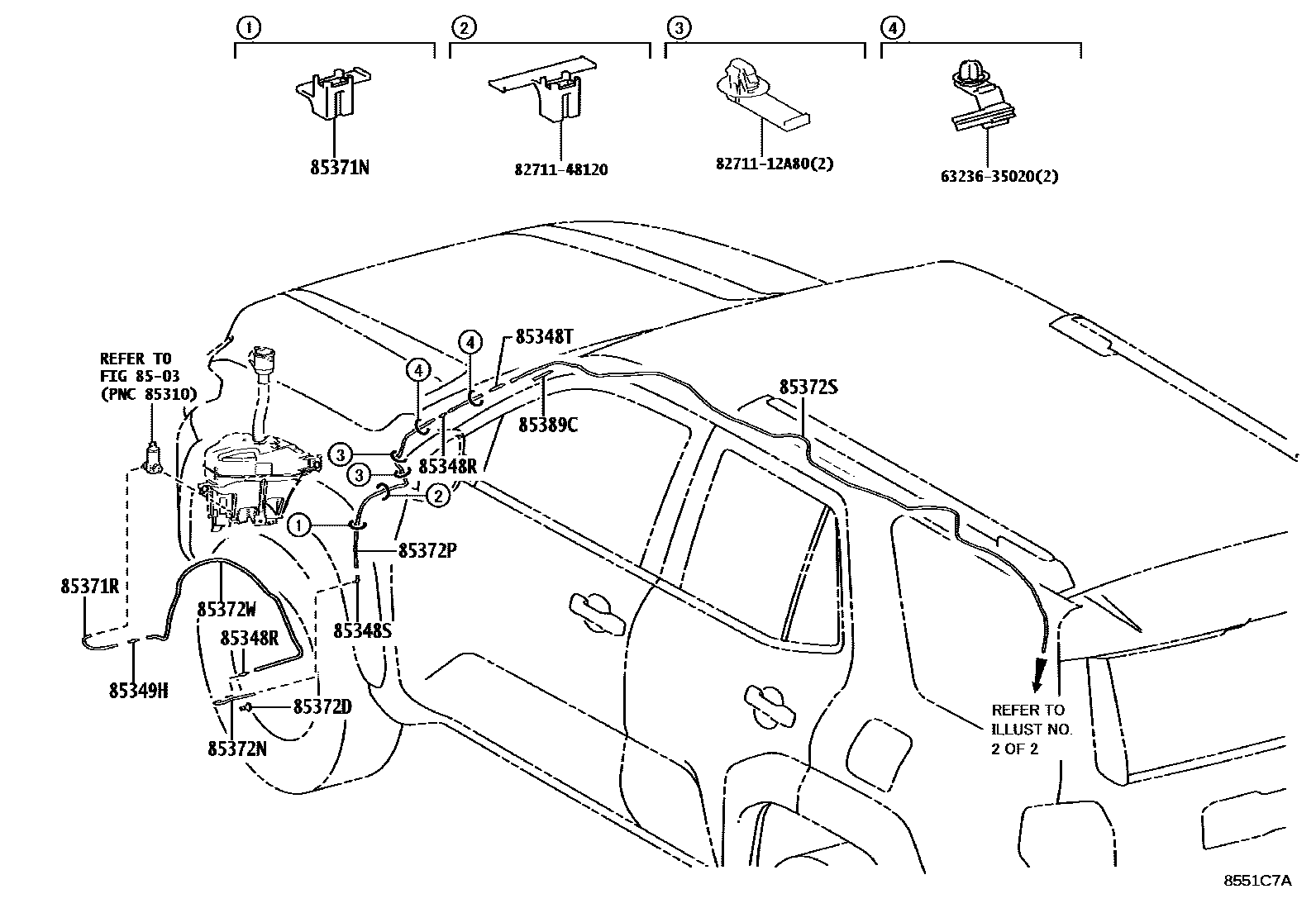

Toyota 4RUNNER 671 — REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85348RJOINT, REAR WASHER HOSE, NO.1

85348SJOINT, REAR WASHER ELBOW, NO.1

85348TJOINT, REAR WASHER HOSE, NO.2

85349HJOINT, REAR WASHER HOSE, NO.3

85371NCLAMP, REAR WASHER HOSE

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

85372DGROMMET, REAR WASHER HOSE

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

85389CPROTECTOR, WASHER

6323635020CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE

63236-35020

8271112A80WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

82711-12A80

8271148120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

82711-48120

16 parts on this diagram · 2 diagrams in section

REAR WASHER for Toyota 4RUNNER 671

This section contains 26 genuine Toyota parts for the REAR WASHER system of the Toyota 4RUNNER 671. Key components include: WINDSHIELD WASHER, NOZZLE, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER ELBOW, NO.1, JOINT, REAR WASHER HOSE, NO.2.
