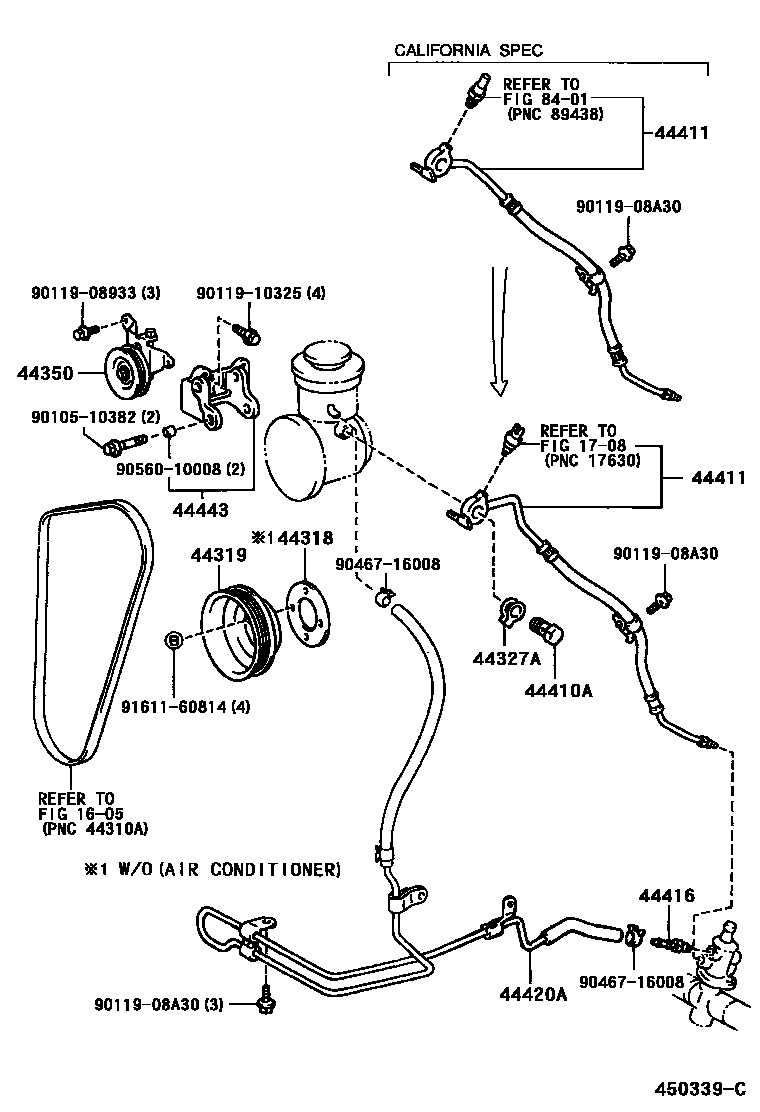

POWER STEERING TUBE

0001 1 0002 1

1605V-BELT

→ Go to FIG 16-05

1708VACUUM PIPING

→ Go to FIG 17-08

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-26020iRZN18#199511-200008

44319PULLEY, VANE PUMP DRIVE

main44319-34010iRZN18#199511-200008

44327AGASKET, PRESSURE PORT, NO.1

main44327-26020iRZN18#,VZN18#199511

44350PULLEY ASSY, POWER STEERING IDLE

main44350-34010iRZN18#199511-200008

44410TUBE ASSY, PRESSURE FEED

main44410-35400iVZN18#199511-199708

main44410-35550iVZN18#199708-199807

main44410-35570iVZN18#199807

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16034iRZN18#,VZN18#199511

44411HOSE, PRESSURE FEED

main44411-35440iRZN18#199511-200008

main44411-60600iRZN18#199906-200008

CALIFORNIA SPEC

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-42020iRZN18#,VZN18#199511

44420ATUBE ASSY, RETURN

main44420-35140iRZN18#199511-200008

44443BRACKET, PUMP

main44443-34010iRZN18#199511-200008

main44443-34030iVZN18#199906

main44443-35030iVZN18#199511-199906

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510382

main90105-10382

9011908933

main90119-08933

9011908A30

main90119-08A30

9011910325

main90119-10325

9046716008

main90467-16008

9056010008

main90560-10008

9161160814

main91611-60814

20 parts on this diagram · 2 diagrams in section
